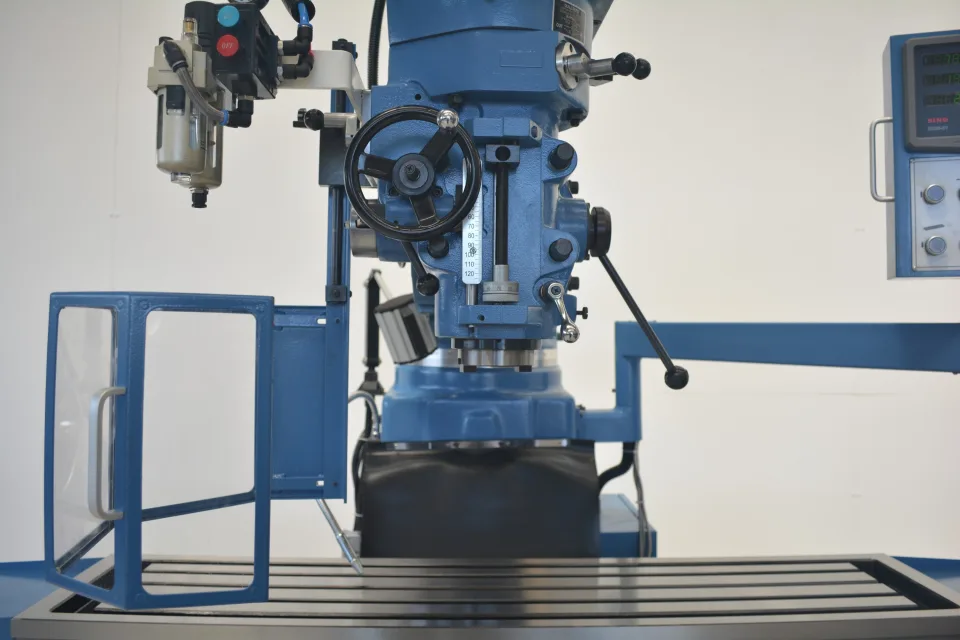

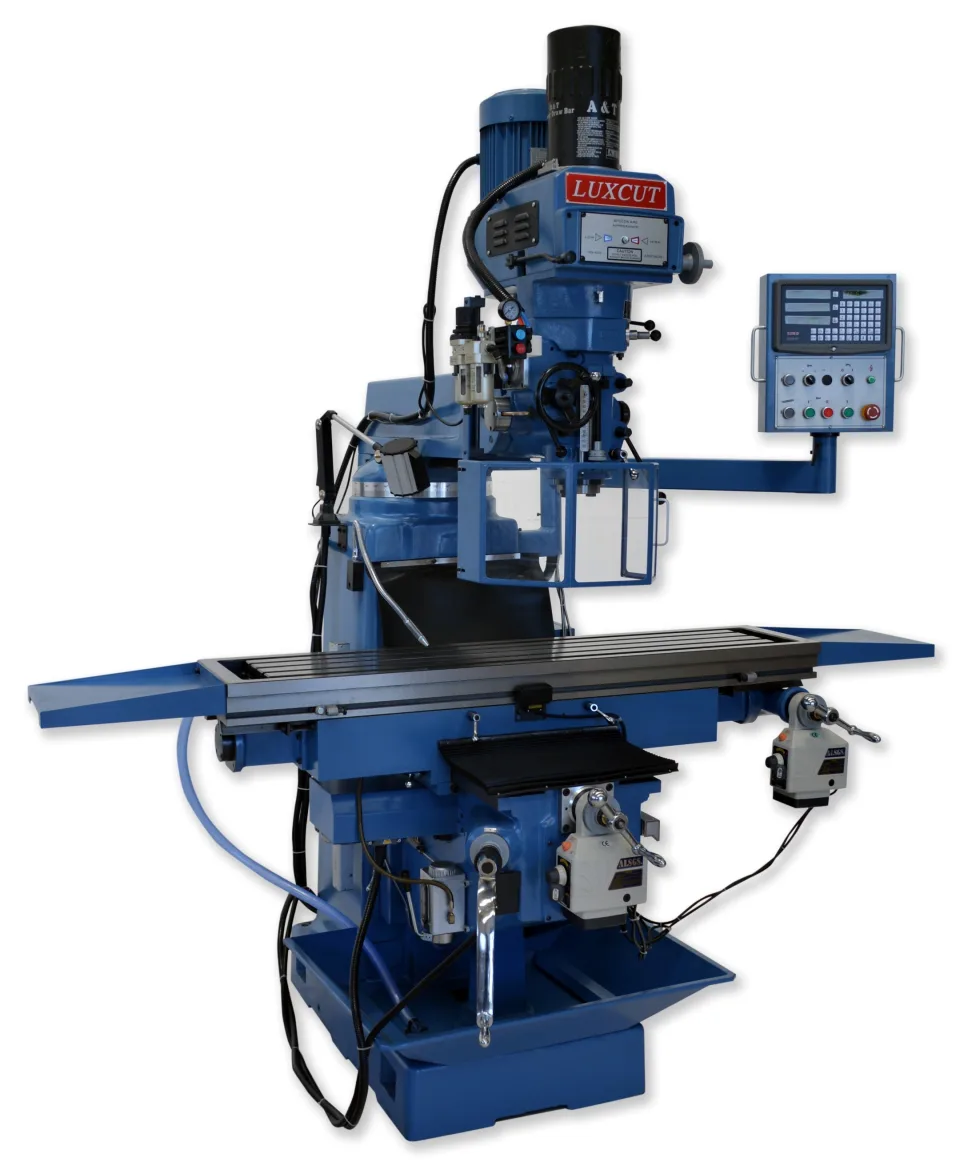

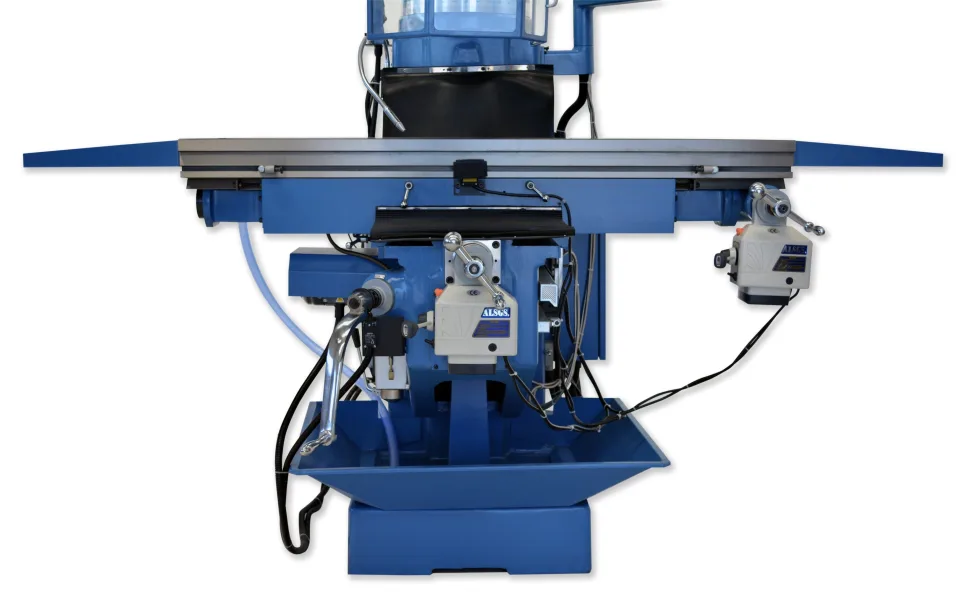

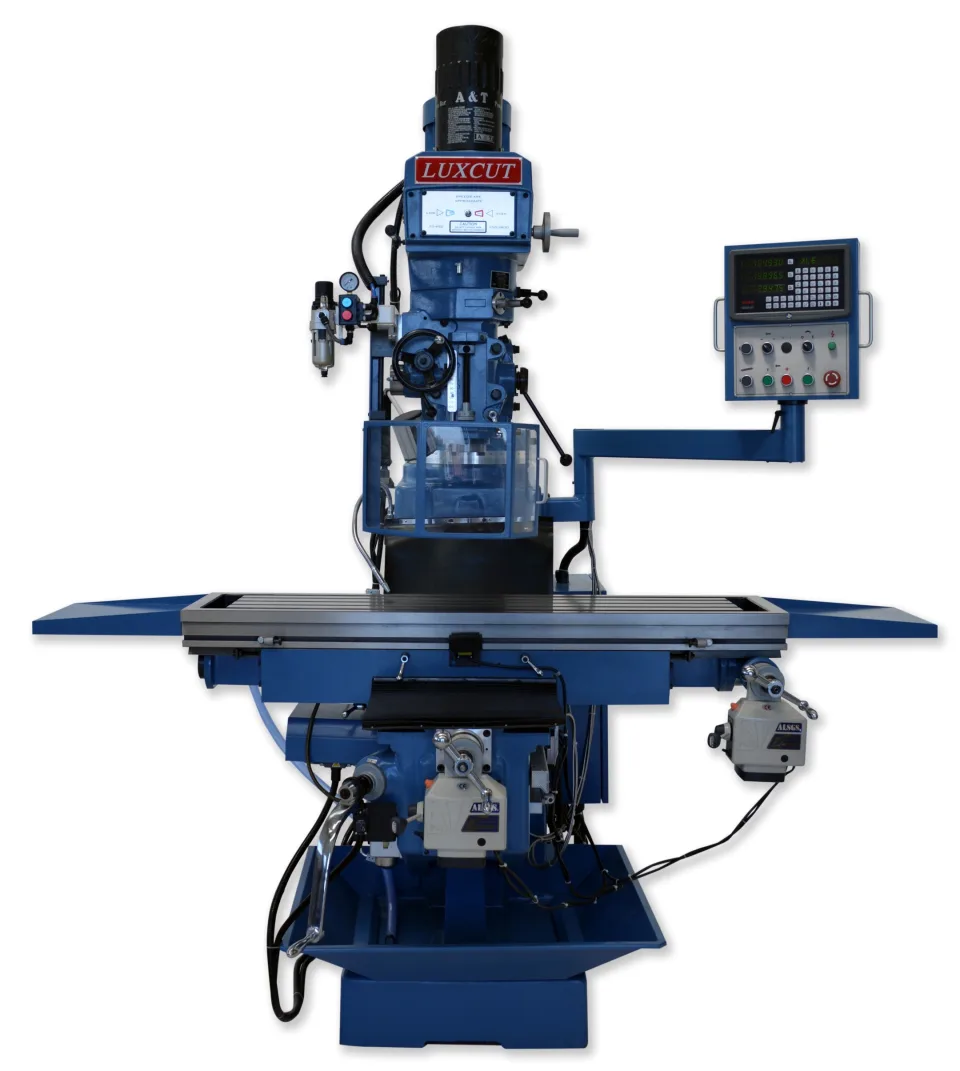

Luxcut TM-5VSL Turret Mill
c/w 3 Axis DRO, Power Draw Bar
$25,490.00
MTUR-0-0009 | Prices exclude GST
Product overview
About this machine.
Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks
Standard features:
- Taiwanese variable speed milling head
- SINO 3 Axis Digital Readout System
- Power feed on quill
- Large wide knee providing good table support
- Electronic longitudinal power feed unit
- Electronic cross power feed unit
- Centralised lubrication system
- Brake on spindle
- Meehanite casting
- Powered elevating motor on knee
- Air power draw bar
- Spindle guard
- Pendant with control panel & integrated DRO
Solid square Y & Z slideways
- Hardened and ground table & slideways
- Coolant system
- Halogen lamp
- Splash tray
- Pictured with optional slotting head attachment (sold separately)
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Table size
1500 x 330mm
Longitudinal travel
1015mm
Cross travel
420mm (385mm with DRO fitted)
Vertical travel
500mm
Ram travel
500mm
Quill diameter
105mm
Quill travel
127mm
Spindle taper
NT40
Spindle nose to table
0 - 500mm
Spindle speed range
70 - 3,600 rpm Variable
Motor
3.75 kW (5hp)
Gross weight
2300 kg
Floor space W x D x H
3.4 x 2.1 x 2.5m
Shipping
5.9m3 2400kg
