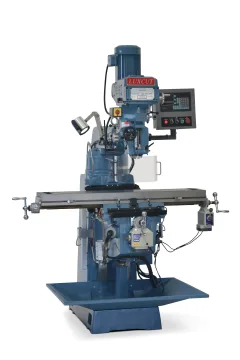

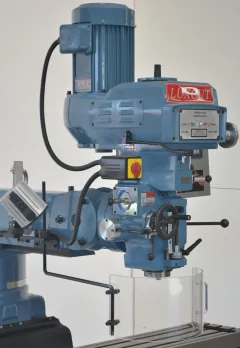

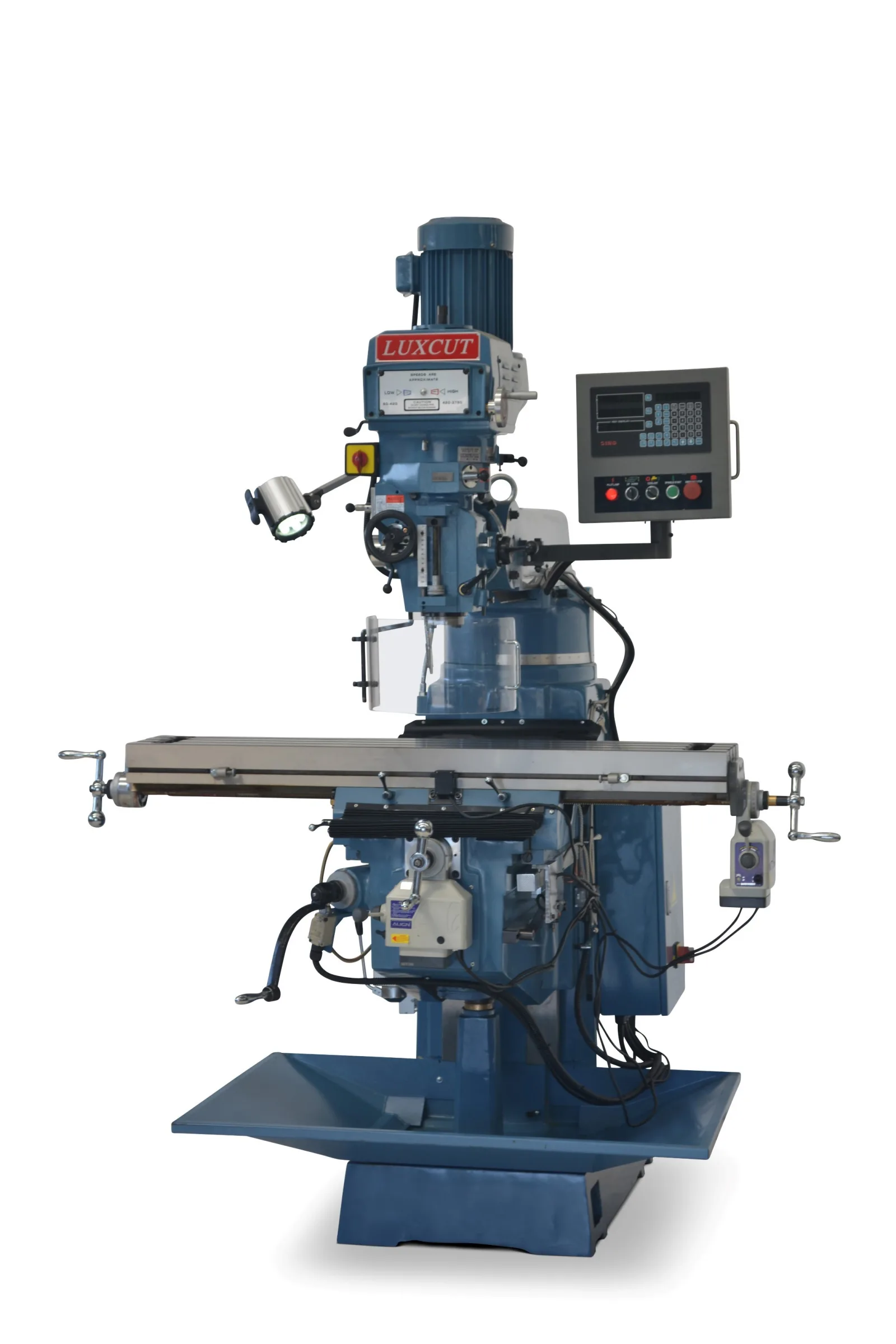

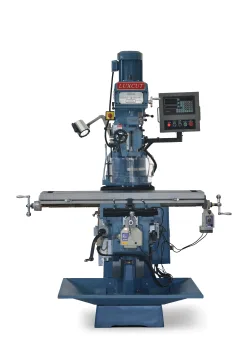

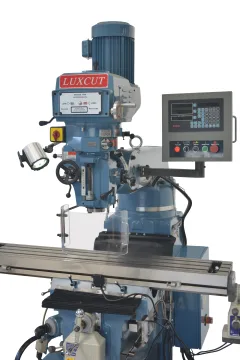

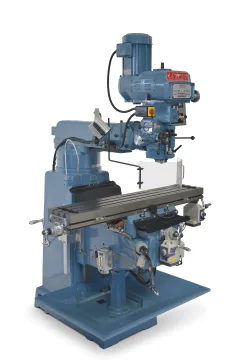

Luxcut TM-4VSL Turret Mill

Workshop Quality Series, Fitted with 3 axis digital readout. NT40 taper, 5hp, feeds, Powered knee lift

$22,490.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Working surface of table 1372 x 254mm
Cross travel 440mm (*410)
Vertical travel 406mm
Quill diameter 105mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Workshop Quality Series, Fitted with 3 axis digital readout. NT40 taper, 5hp, feeds, Powered knee lift

Standard features:

  • SINO Digital readout 3 axis with mill functions
  • Power feed on quill
  • ALIGN longitudinal power feed
  • ALIGN cross power feed
  • Centralised lubrication system
  • Brake on spindle
  • Meehanite casting
  • Powered elevating knee
  • M12 x 16 Tee nut size

Solid square Y & Z slideways

  • Hardened and ground table & slideways
  • Coolant system
  • Halogen lamp
  • Splash tray
  • Interlocked spindle guard

New feature:

  • Extended column now 520mm spindle to table

Optional Extras

  • Air power drawbar
  • Slotting attachment

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Luxcut TM-4VSL
Working surface of table 1372 x 254mm
Longitudinal travel 1000mm (*910) (*) Actual travels with DRO & power feeds
Cross travel 440mm (*410)
Vertical travel 406mm
Speed range 60 - 3,000 rpm (50Hz) Variable
Quill diameter 105mm
Quill travel 127mm
Spindle to table 520mm
Spindle taper NT40
Spindle motor power 3.75 kW (5 hp)
Machine size 1900 x 1700 x 2450mm
Weight 1650kg
Shipping 1770kg 5.7m3
