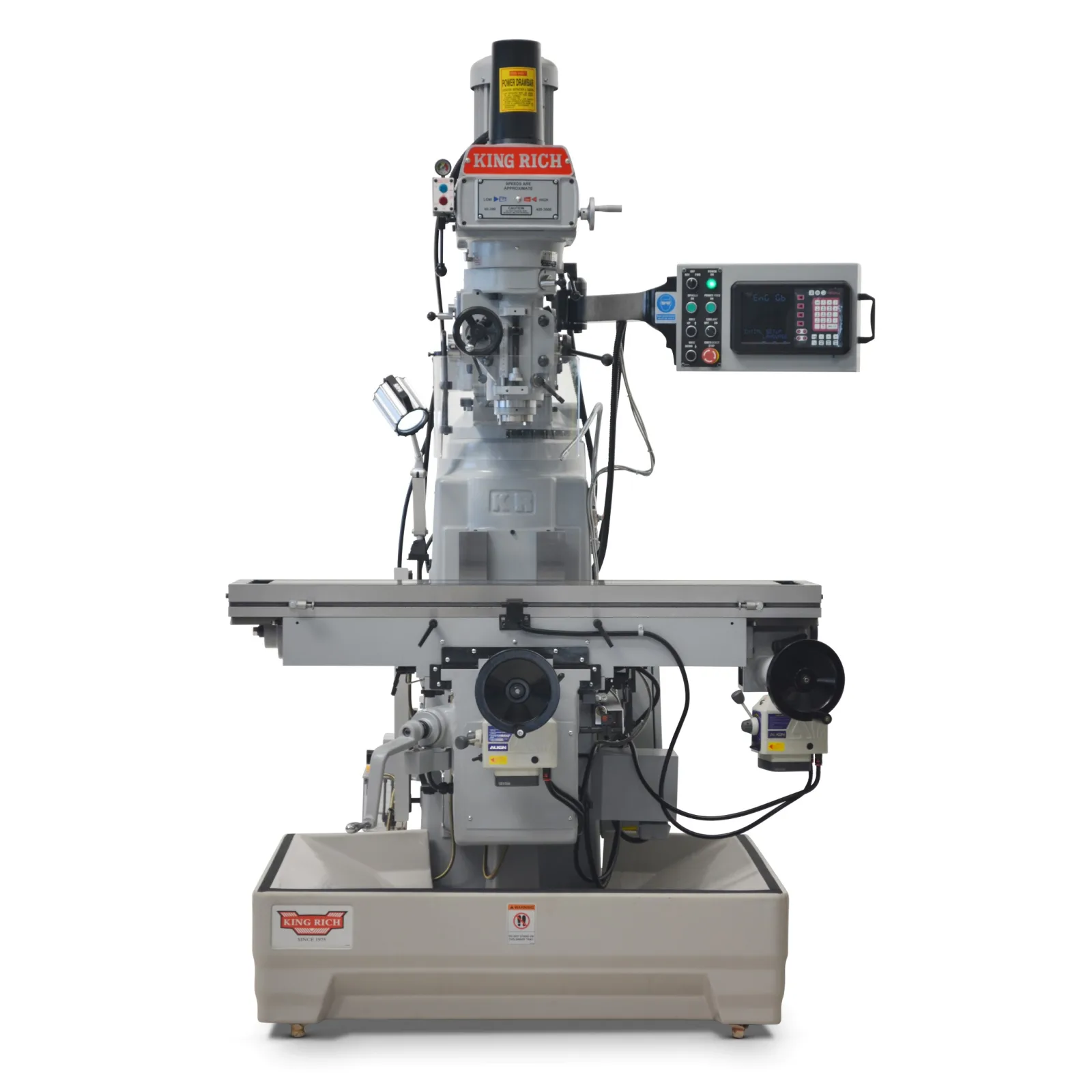

King Rich KR-V3000SL Premium Quality Mill

Premium Quality Manual Turret Mill

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Working surface of table 1473mm x 305mm
Vertical travel of table 406mm
T-slots (3) 15.9mm (M12 x 16mm)
Ram travel (Overarm) 450mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The King Rich KRV series are targeted at customers that would like the best in turret mills as they offer the highest reputation of machine build quality, precision, and performance. Featuring robust Meehanite castings and hardened dovetail slideways, ensuring long-lasting structural integrity and smooth operation. Equipped with precision-class 7 spindle bearings, these machines deliver maximum spindle runout of just 5 microns, providing outstanding accuracy for a variety of milling tasks. Renowned for their exceptional precision, durability, and versatility. These mills are ideal for toolrooms, workshops, and educational institutions seeking high-quality, reliable equipment.

Features:

  • Precision class 7 spindle bearings
  • Maximum spindle runout 5 microns
  • Variable speed head
  • Unique honeycomb design meehanite castings
  • Hardened and ground table
  • Heavy duty table support design 1150mm
  • Hardened dovetail slideway on X axis
  • Hardened square ways on Y & Z for rigidity
  • Rolled ball screws fitted to X & Y axis
  • Raised column
  • Forward/backward head tilt is held by 8 bolts through the knuckle to increase stiffness in the head

Standard Accessories:

  • ALIGN Longitudinal & cross Power Feed Units
  • Power elevating knee
  • Automatic centralized lubrication
  • Coolant System
  • Halogen Lamp
  • Fiberglass splash tray
  • Air powered draw bar

Key features

  • Bolt hole circle (PCD)
  • Arc Contouring
  • Line hole calculator
  • Centre find
  • Polar Co-ordinates

Optional:

  • Rear splash guarding
  • Slotting head

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
King Rich KR-V3000SL
Working surface of table 1473mm x 305mm
Longitudinal travel of table 1016mm (*916mm) (*) Actual travels with DRO & power
Cross travel of table 400mm (*355mm) (*) Actual travels with DRO & power
Vertical travel of table 406mm
T-slots (3) 15.9mm (M12 x 16mm)
Ram travel (Overarm) 450mm
Spindle nose to table 110 - 516mm
Quill diameter 105mm
Quill travel 127mm
Quill feeds 0.038 / 0.076 / 0.152 mm/rev
Spindle speed range 70 - 460rpm (Low) 460-3000 rpm (High) 50Hz
Spindle speed ranges Low / High
Spindle taper NT40
Motor power 3.72 kW (5HP)
Floor space (LxWxH) 1850mm x 1700mm x 2450mm
Shipping dimensions Pallet size (LxWxH): 1.9 x 1.7 x 2.6m 8 m3
Machine weight 1900 kg
