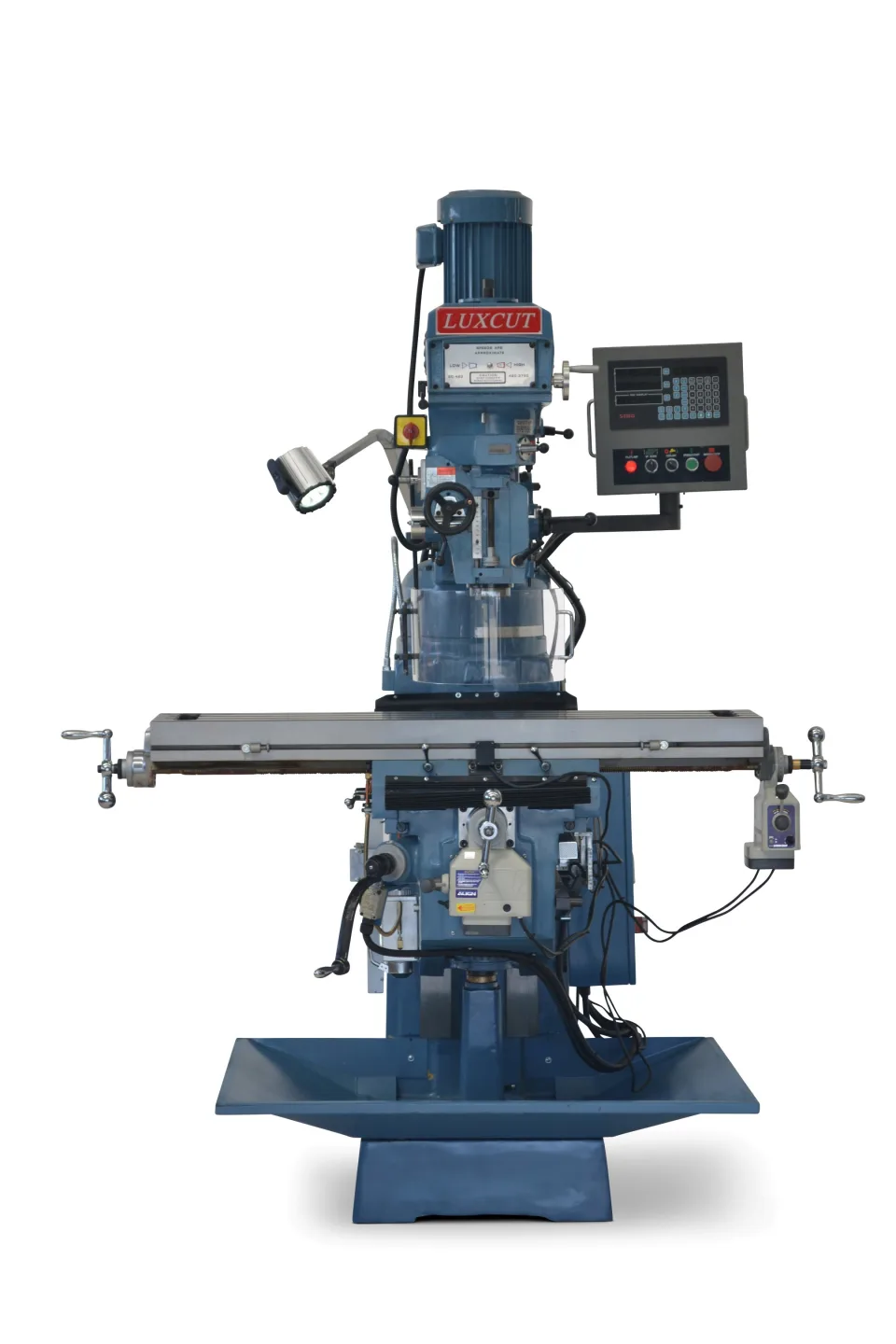

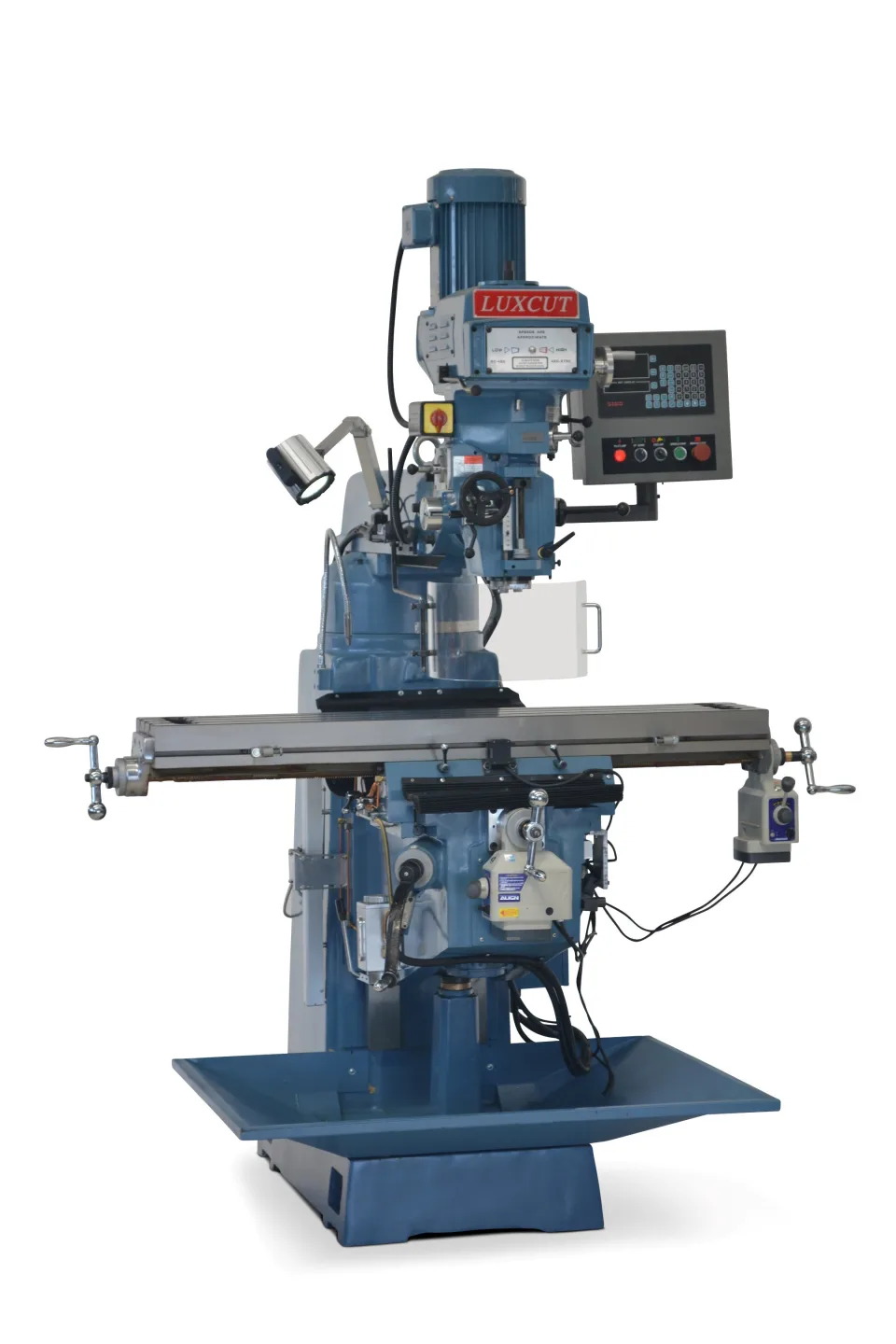

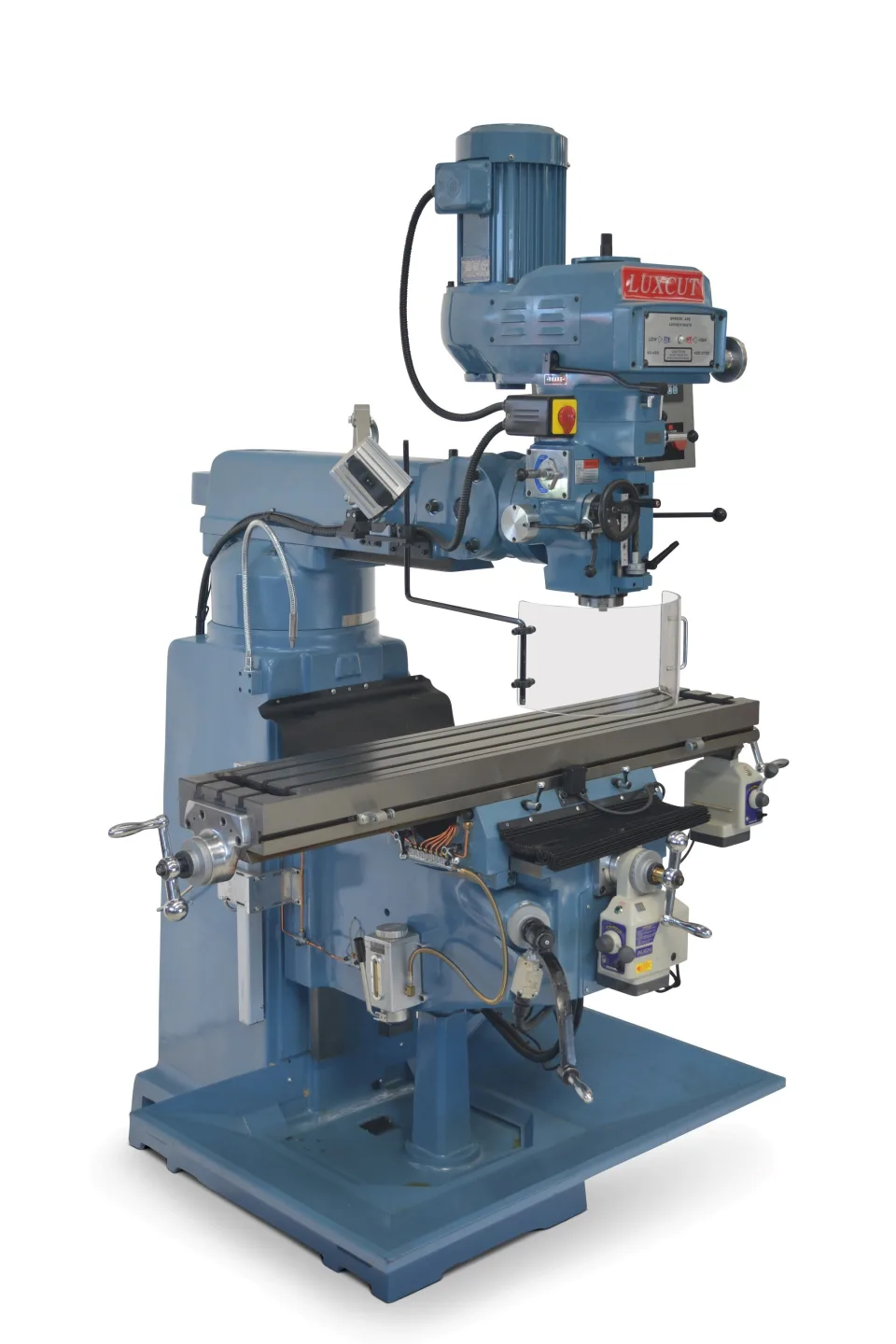

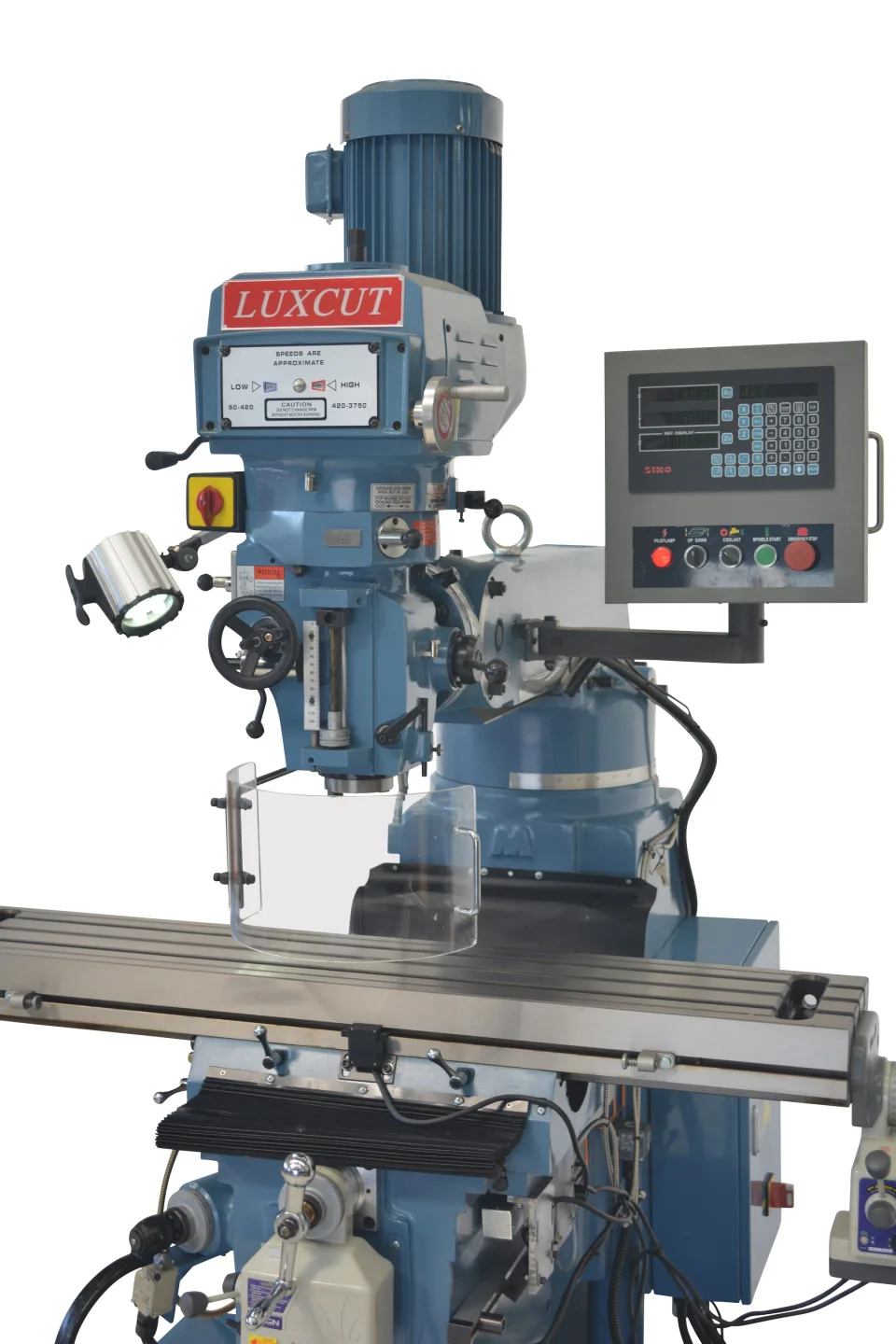

Luxcut TM-4VSL Turret Mill
c/w 3 Axis DRO
$22,490.00
MTUR-0-0007 | Prices exclude GST
Product overview
About this machine.
Workshop Quality Series, Fitted with 3 axis digital readout. NT40 taper, 5hp, feeds, Powered knee lift
Standard features:
- SINO Digital readout 3 axis with mill functions
- Power feed on quill
- ALIGN longitudinal power feed
- ALIGN cross power feed
- Centralised lubrication system
- Brake on spindle
- Meehanite casting
- Powered elevating knee
- M12 x 16 Tee nut size
Solid square Y & Z slideways
- Hardened and ground table & slideways
- Coolant system
- Halogen lamp
- Splash tray
- Interlocked spindle guard
New feature:
- Extended column now 520mm spindle to table
Optional Extras
- Air power drawbar
- Slotting attachment
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Luxcut | TM-4VSL | |
|---|---|---|
| Working surface of table | 1372 x 254mm | |
| Longitudinal travel | 1000mm (*910) | (*) Actual travels with DRO & power feeds |
| Cross travel | 440mm (*410) | |
| Vertical travel | 406mm | |
| Speed range | 60 - 3,000 rpm (50Hz) | Variable |
| Quill diameter | 105mm | |
| Quill travel | 127mm | |
| Spindle to table | 520mm | |
| Spindle taper | NT40 | |
| Spindle motor power | 3.75 kW (5 hp) | |
| Machine size | 1900 x 1700 x 2450mm | |
| Weight | 1650kg | |
| Shipping | 1770kg 5.7m3 |
