Luxcut TM-2VSL 3ph Turret Mill
1 / 11
Luxcut logo MTUR-0-0005

Workshop Machinery · Mills & mill drills

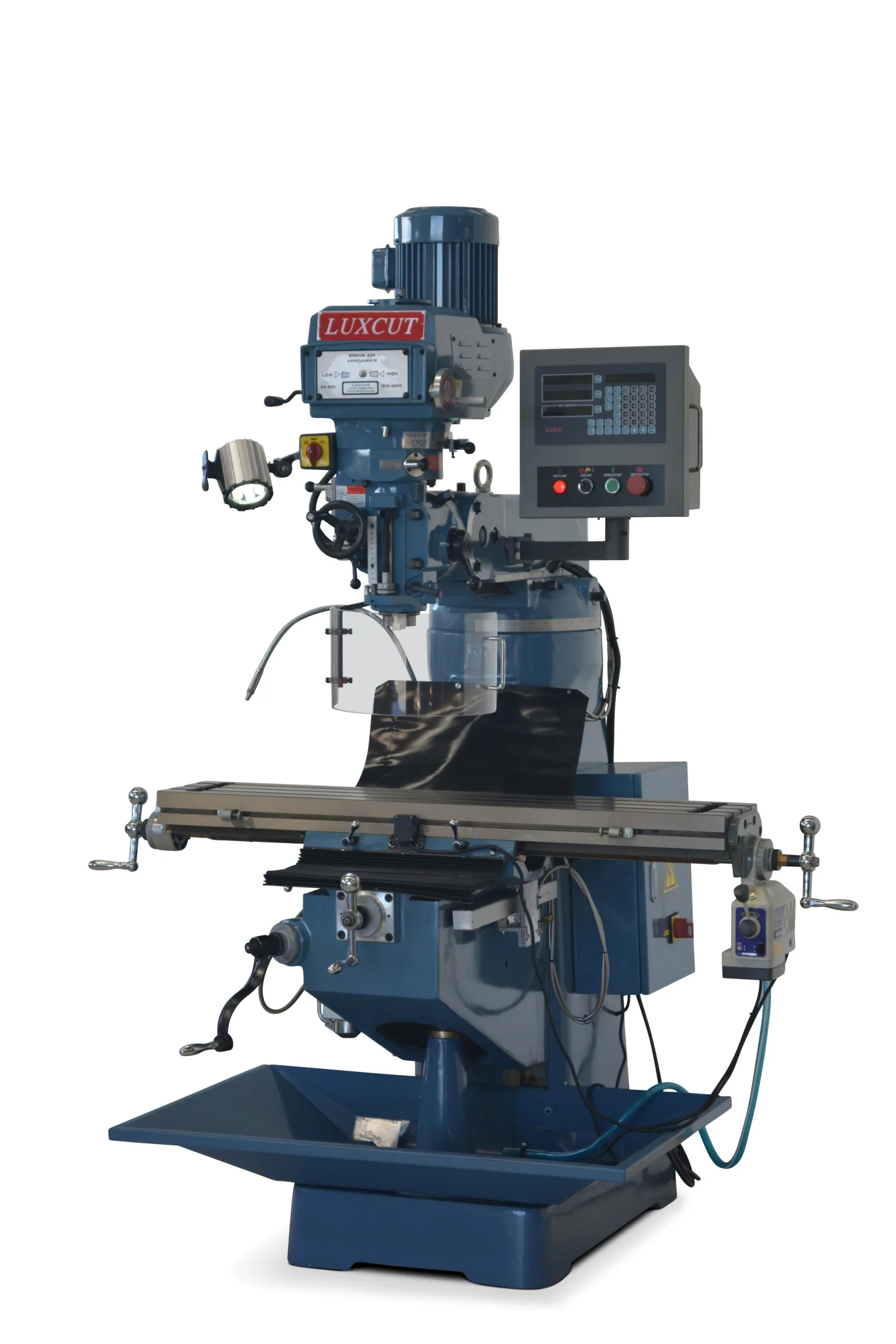

Luxcut TM-2VSL 3ph Turret Mill

Workshop Quality Series, Fitted with 3 axis digital readout

$16,990.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Working surface of table 1244 x 230mm
Cross travel 330mm (*300)
Vertical travel 406mm
Quill diameter 86mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The TM-2VSL comes with a 3 axis Digital Readout fitted at the factory with all standard milling features.

Standard features:

  • Taiwanese variable speed change milling head
  • Variable speed change milling head
  • Digital Readout 3 Axis
  • Power Feed On Quill
  • ALIGN Longitudinal Power Feed
  • Centralised Lubrication System
  • Brake on spindle
  • Meehanite Casting

Hardened and ground table & slideways

  • ( accepts M12 x 16 Tee nuts )
  • Coolant System
  • Halogen Lamp
  • Splash tray
  • Interlocked spindle guard

Optional Extras

  • Single phase
  • Air power drawbar
  • Slotting attachment

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Luxcut TM-2VSL
Working surface of table 1244 x 230mm
Longitudinal travel 920mm (*830) (*) Actual travels with DRO & power feeds
Cross travel 330mm (*300)
Vertical travel 406mm
Speed range 68 - 3,600 rpm (50Hz) Variable
Quill diameter 86mm
Spindle taper NT30 or R8 on request
Spindle motor power 3 hp / 2.25 kW
Tee slot size 16mm
Machine weight 1000 kg
Shipping 5.5m3, 1100kg

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
