King Rich KR-V2000 Premium Quality Mill
1 / 9
King Rich logo MTUR-0-0020

Workshop Machinery · Mills & mill drills

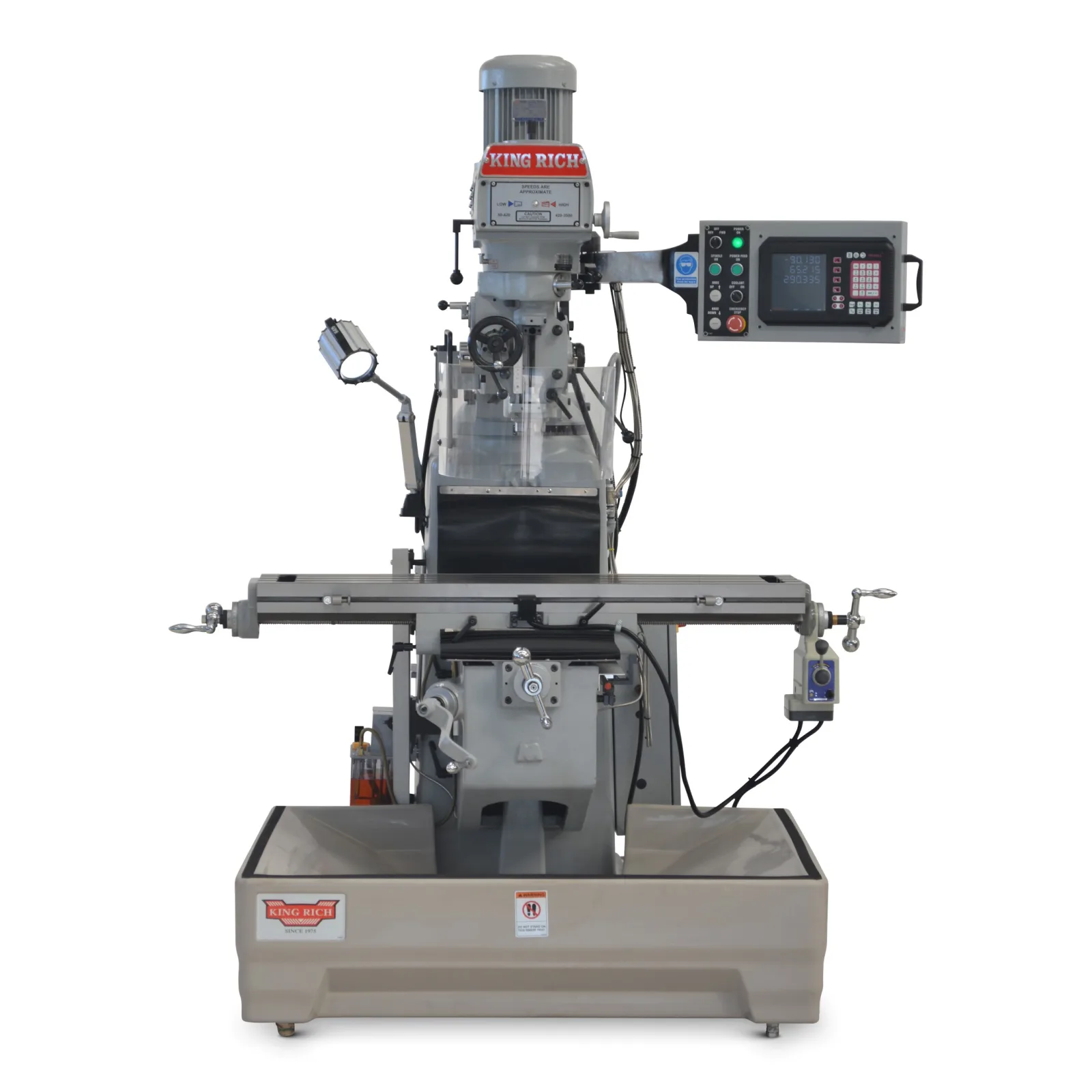

King Rich KR-V2000 Premium Quality Mill

Premium Quality Manual Turret Mill

$28,650.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Speed range 50 - 500rpm (Low) 500-3500 rpm (High) 50Hz
Working surface of table 1270mm x 254mm
Vertical travel of table 406mm
T-slots (3) 15.9mm (M12 x 16mm)
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The King Rich KRV series are targeted at customers that would like the best in turret mills as they offer the highest reputation of machine build quality, precision, and performance. Featuring robust Meehanite castings and hardened dovetail slideways, ensuring long-lasting structural integrity and smooth operation. Equipped with precision-class 7 spindle bearings, these machines deliver maximum spindle runout of just 5 microns, providing outstanding accuracy for a variety of milling tasks. Renowned for their exceptional precision, durability, and versatility. These mills are ideal for toolrooms, workshops, and educational institutions seeking high-quality, reliable equipment.

Features:

  • Class 7 precision spindle bearings
  • Maximum spindle runout 5 microns
  • Variable speed head
  • Unique honeycomb design meehanite castings
  • Hardened and ground table
  • Hardened dovetail slideways on X axis
  • Rolled ball screws fitted to X&Y axis for increased precision and accuracy
  • Forward/backward head tilt is held by 6 bolts through the knuckle to increase stiffness in the head

Standard Accessories:

  • ALIGN Longitudinal Power Feed Unit
  • Automatic centralized lubrication
  • Coolant System
  • Halogen Lamp
  • Fiberglass splash tray

Key features

  • Bolt hole circle (PCD)
  • Arc Contouring
  • Line hole calculator
  • Centre find
  • Polar Co-ordinates

Optional:

  • Rear Splash guarding (shown in 2nd image)
  • Air power draw bar
  • Align power cross feed (Y axis)
  • Align power knee feed (Z axis)
  • Slotting head
  • NT40

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
King Rich KR-V2000
Working surface of table 1270mm x 254mm
Longitudinal travel of table 800mm (*700mm) (*) Actual travels with DRO & power feeds
Cross travel of table 400mm (*355mm) (*) Actual travels with DRO & power feeds
Vertical travel of table 406mm
T-slots (3) 15.9mm (M12 x 16mm)
Ram travel (Overarm) 450mm
Spindle nose to table 50mm - 456mm
Quill diameter 80mm
Quill travel 127mm
Quill feeds 0.038 / 0.076 / 0.152 mm/rev
Speed range 50 - 500rpm (Low) 500-3500 rpm (High) 50Hz
Spindle speed ranges Low / High
Spindle taper R8 / NT30
Motor power 2.25kW (3hp)
Floor space (LxWxH) 1800 x 1700mm x 2150mm
Shipping dimensions Pallet size (LxWxH): 1.9 x 1.7 x 2.3m 7.4 m3
Weight 1200 kg
