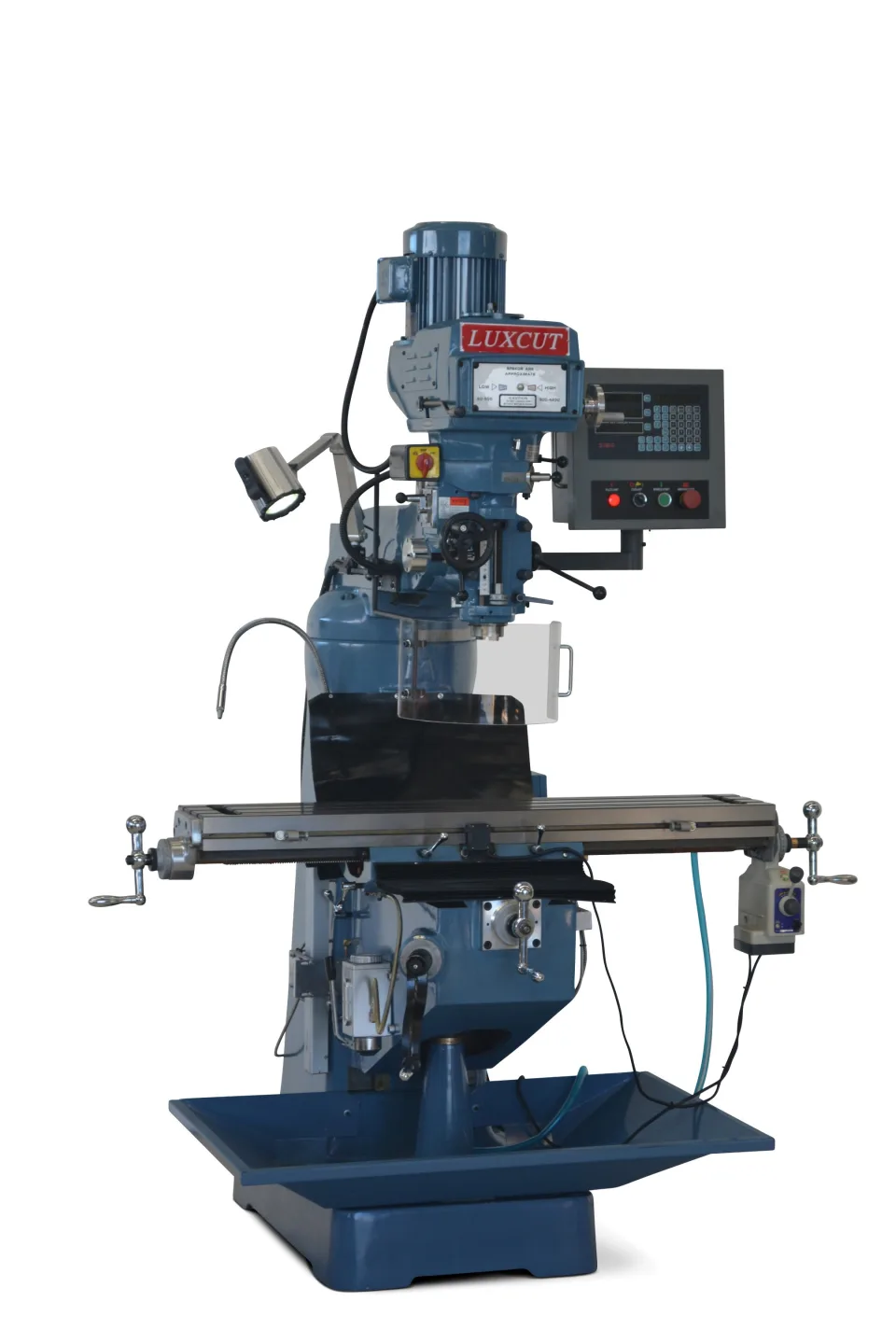

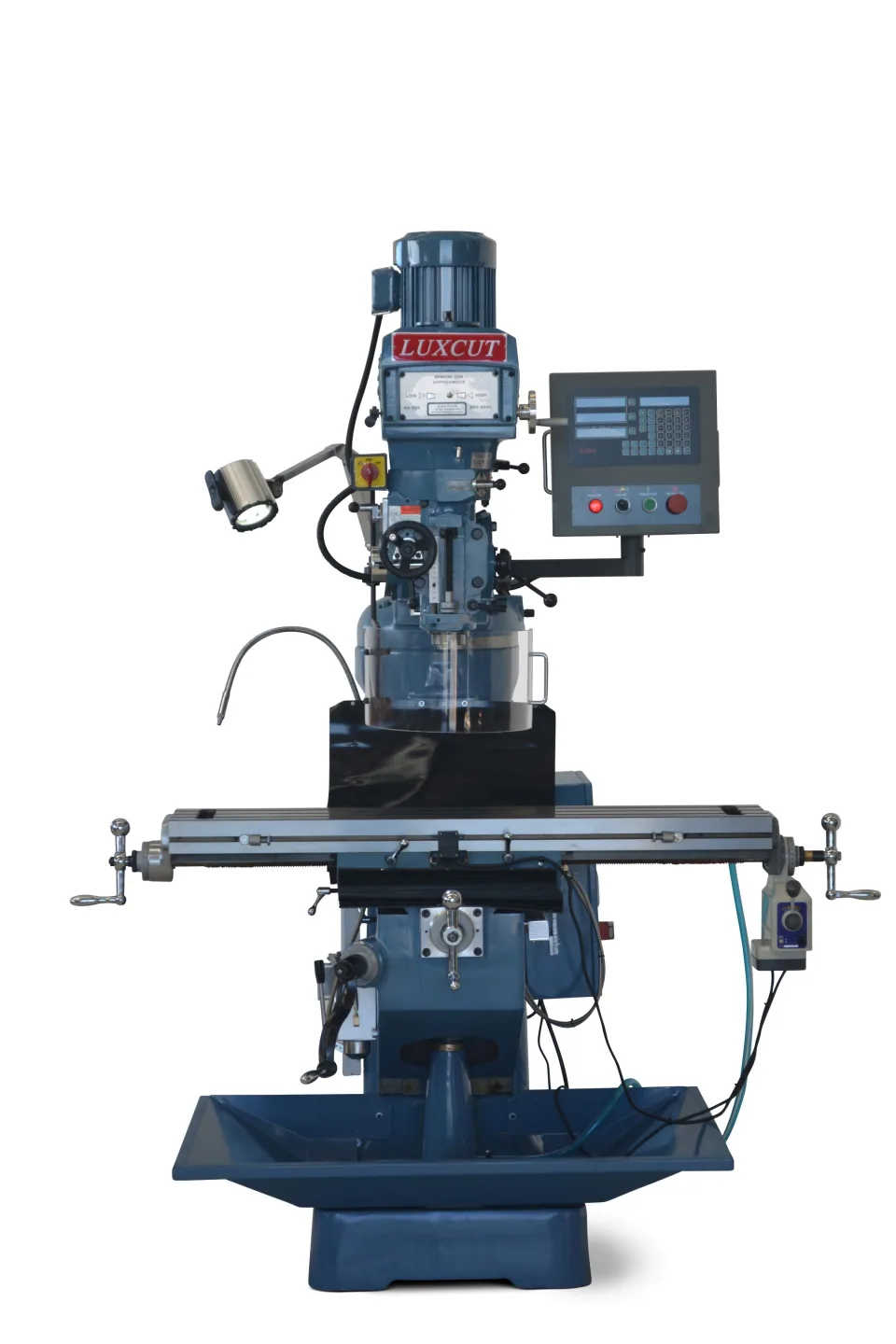

Luxcut TM-2VSL 3ph Turret Mill
c/w 3 Axis DRO
$16,990.00
MTUR-0-0005 | Prices exclude GST
Product overview
About this machine.
The TM-2VSL comes with a 3 axis Digital Readout fitted at the factory with all standard milling features.
Standard features:
- Taiwanese variable speed change milling head
- Variable speed change milling head
- Digital Readout 3 Axis
- Power Feed On Quill
- ALIGN Longitudinal Power Feed
- Centralised Lubrication System
- Brake on spindle
- Meehanite Casting
Hardened and ground table & slideways
- ( accepts M12 x 16 Tee nuts )
- Coolant System
- Halogen Lamp
- Splash tray
- Interlocked spindle guard
Optional Extras
- Single phase
- Air power drawbar
- Slotting attachment
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Luxcut | TM-2VSL | |
|---|---|---|
| Working surface of table | 1244 x 230mm | |
| Longitudinal travel | 920mm (*830) | (*) Actual travels with DRO & power feeds |
| Cross travel | 330mm (*300) | |
| Vertical travel | 406mm | |
| Speed range | 68 - 3,600 rpm (50Hz) | Variable |
| Quill diameter | 86mm | |
| Spindle taper | NT30 | or R8 on request |
| Spindle motor power | 3 hp / 2.25 kW | |
| Tee slot size | 16mm | |
| Machine weight | 1000 kg | |
| Shipping | 5.5m3, 1100kg |
