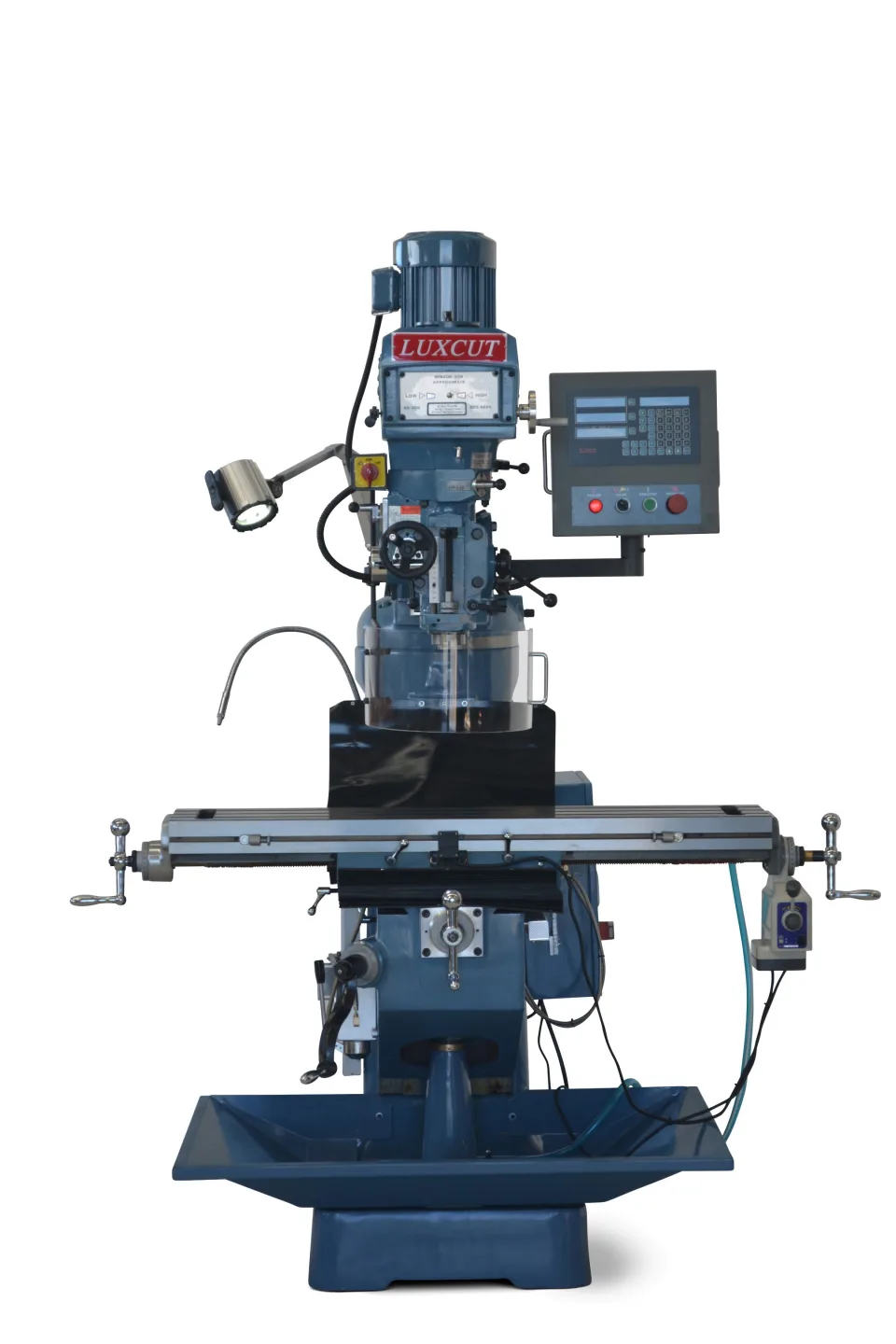

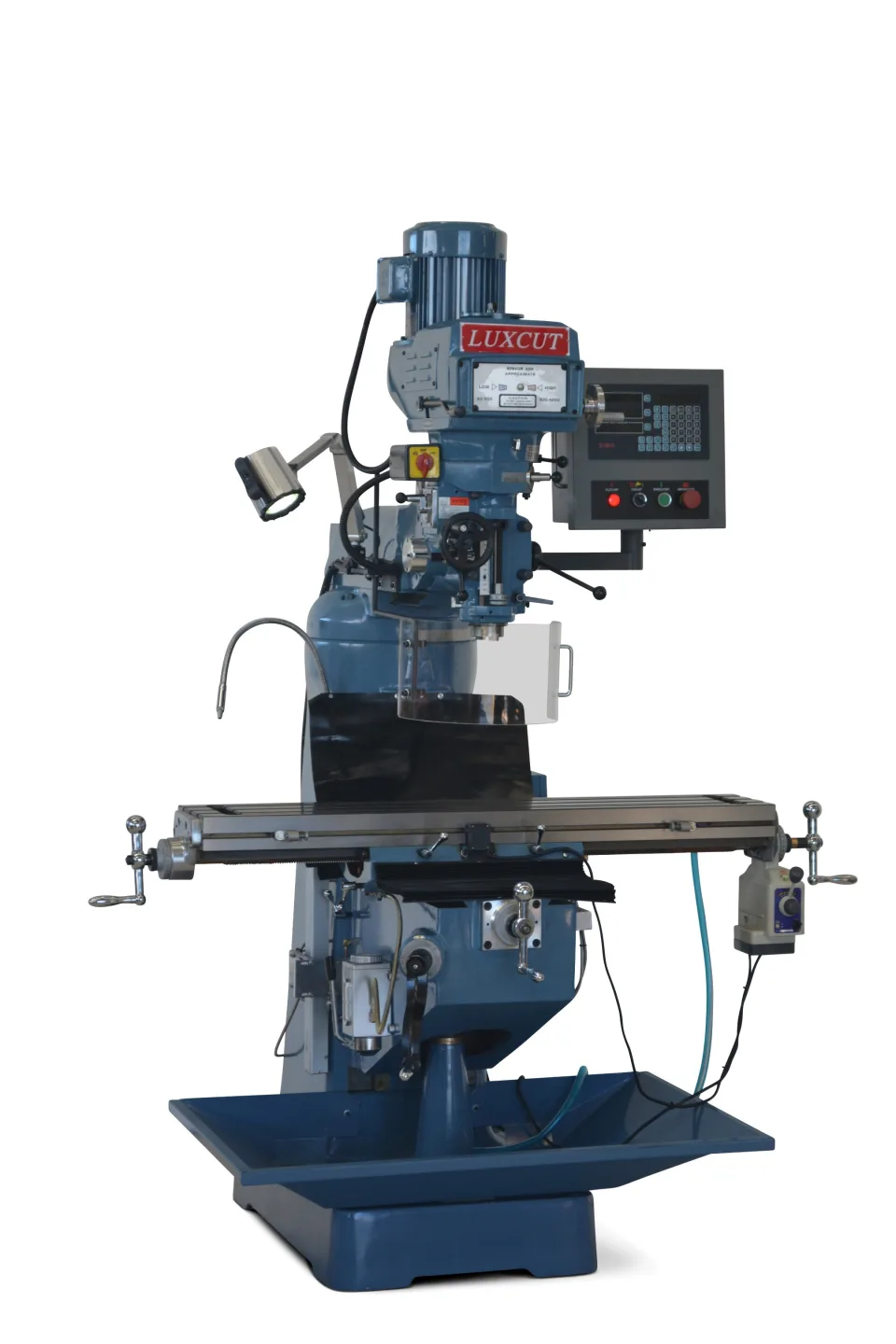

Luxcut TM-2VSL Turret Mill
1 Phase c/w 3 Axis DRO
$17,990.00
MTUR-0-0004 | Prices exclude GST
Product overview
About this machine.
The TM-2VSL comes with a 3 axis Digital Readout fitted at the factory with all standard milling features.
Standard features:
- Taiwanese variable speed change milling head
- Variable speed change milling head
- Digital Readout 3 Axis
- Power Feed On Quill

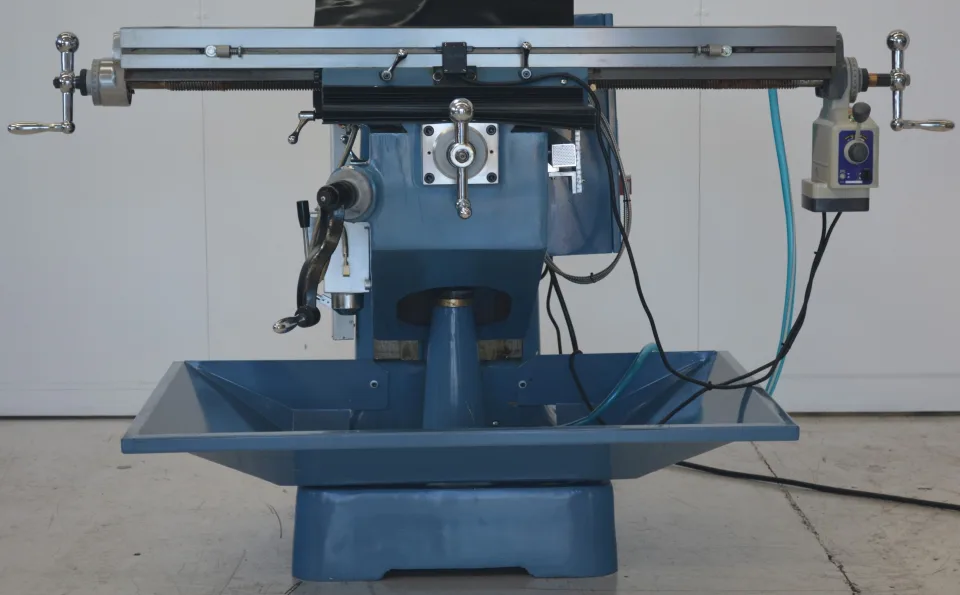

- ALIGN Longitudinal Power Feed
- Centralised Lubrication System
- Brake on spindle
Meehanite Casting
- Hardened and ground table & slideways
- Coolant System
- Halogen Lamp
- Splash tray
- Interlocked spindle guard
Optional Extras
- Three phase
- Air power drawbar
- Slotting attachment
- Note: Supplied with 15A 3 pin plug & heavy duty 1.5m cable. Customer will need 15A socket.
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
TM-2VSL
Table size
1244 x 230mm
Longitudinal table travel
825mm
Cross table travel
310
Vertical travel of knee
370
Spindle to table
90 - 460mm
Quill travel
127mm
Quill diameter
86mm
Quill feeds
0.045 / 0.086 / 0.142 mm/rev

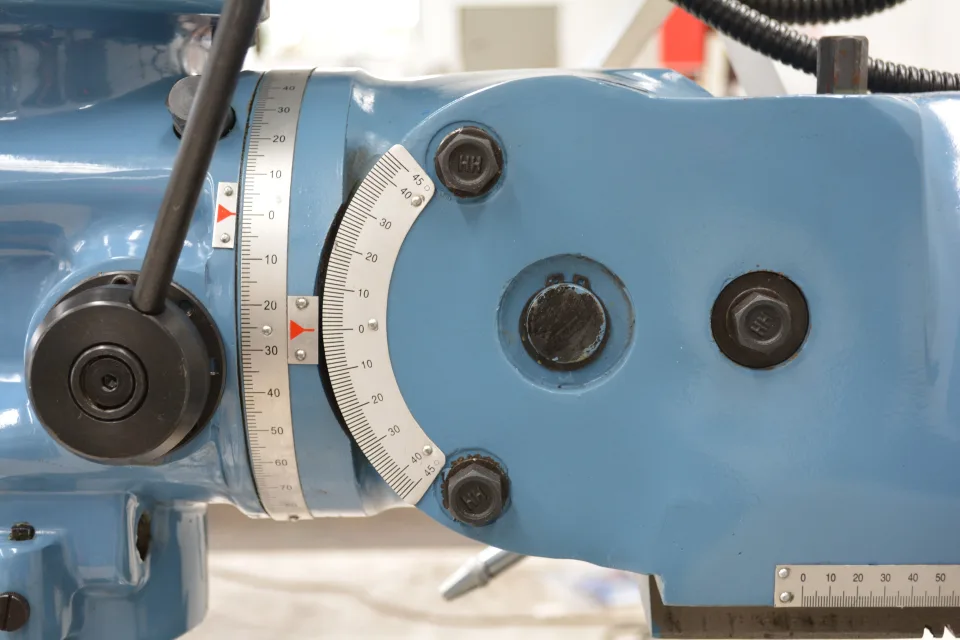

Head tilt forward & back
45 deg L/R
Head tilt left & right
90 deg L/R
Spindle steps
Infinite in high and low range
Spindle taper
NT30 or R8 by request
Motor power
2.25kW 3HP 1 Ph (Customer requires 15Amp socket)
Dimensions (L x D x H)
1700 x 1750 x 2200mm
Machine nett weight
1000 kg
Shipping Details
5.5m3 / 1050kg
