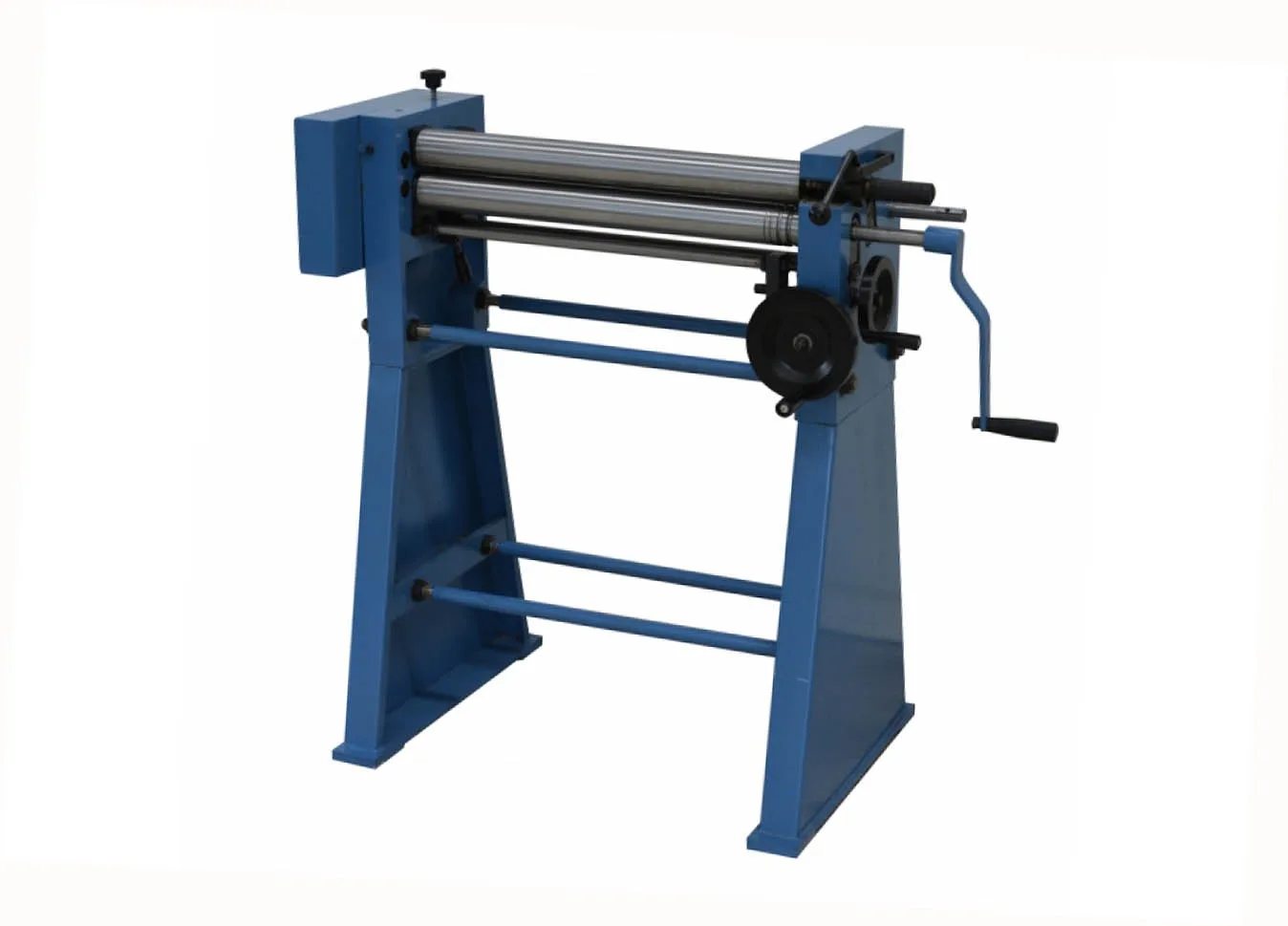

METALEX RH610x2 Manual Asymmetrical Rolls

610mm x 2mm

$1,880.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

METALEX RH610x2mm
Maximum width 610mm
Capacity 2mm
Diameter of pinch rolls 60mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications

The Metalex RH610 x 2mm is a precision manual slip roll designed for forming cylinders, and curves in sheet metal up to 2 mm thick and 610 mm wide. Featuring an asymmetrical roll configuration, it enables pre bending and improved control over the leading edge, making it ideal for light fabrication, ducting, and general workshop use. With robust cast construction, hardened and ground rolls, and manual adjustment via handwheels and levers, the RH1250 delivers consistent, high quality results in mild steel, aluminium, and similar materials

Features

  • Hand operation with 2 speeds

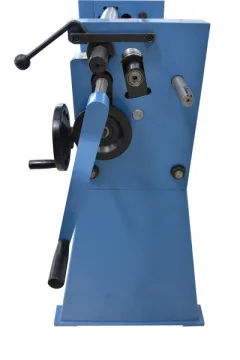

  • Handwheel adjustment of back roll position
  • Handwheel adjustment for front roll gap
  • Initial pinch for pre-bending
  • Swing out top roll for material removal
  • 610 mm working width
  • 2 mm mild steel capacity
  • Asymmetrical roll configuration for effective pre bending
  • Precision ground steel rolls for accurate and consistent forming
  • Manual top roll adjustment for workpiece thickness
  • Quick release top roll for easy removal of finished parts
  • Manual rear roll adjustment for bend radius control
  • Includes wire forming grooves for additional versatility
  • Solid cast iron frame ensures strength and durability
  • Ideal for forming cylinders, cones, and curves in sheet metal

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
METALEX RH610x2mm
Maximum width 610mm
Capacity 2mm
Diameter of pinch rolls 60mm
Diameter of back roll 66mm
Weight 166 kg
Dimensions (L x D x H) 1200mm x 560mm x 1050mm
Shipping dimensions 1,100mm x 750mm x 1,200 (175kg)
