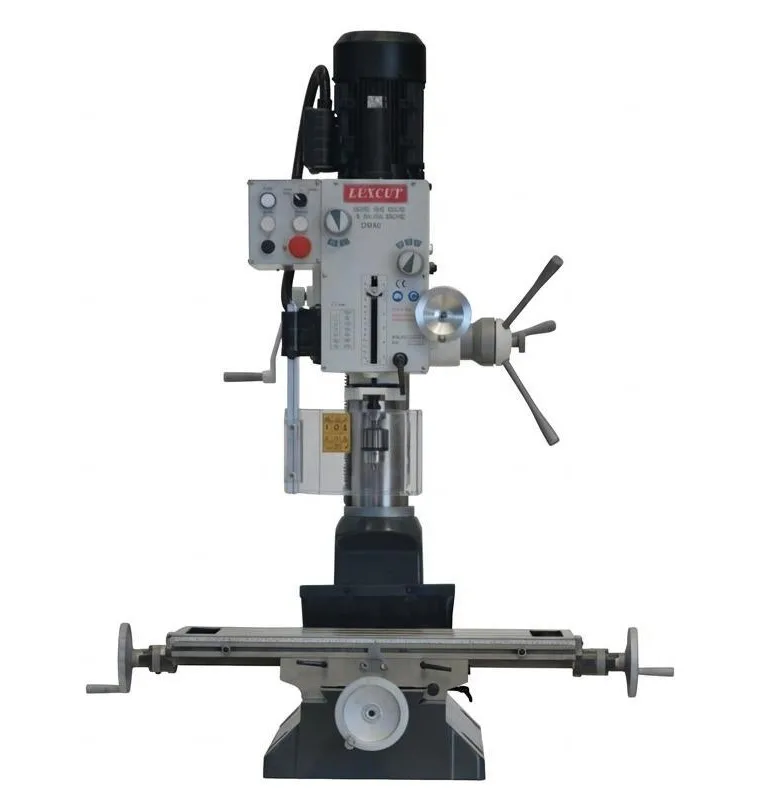

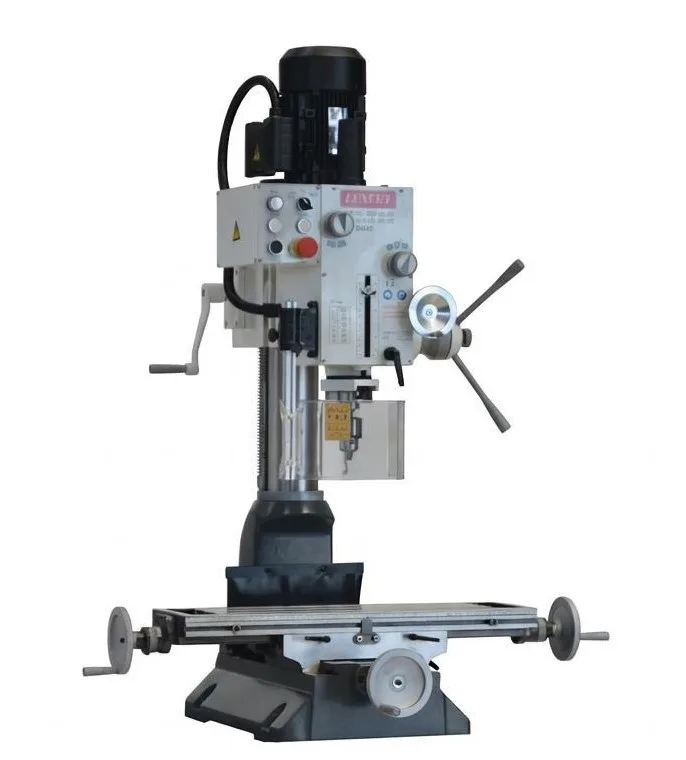

Luxcut DM-40 Geared Head Mill Drill
230v, 730x210 table
Product overview
About this machine.
Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks
The Luxcut DM-40 is a robust geared head drill built for precision and durability. With a 130mm quill travel, six speed head (95-1,600rpm), 3MT spindle, and 30mm steel drilling capacity, it handles tough workshop tasks with ease. Features include a tilting/rotating head, fine-feed handwheel, forward/reverse spindle, coolant system, and a 730 x 210mm compound table with T slots. Powered by a single phase 1.5kW motor, the DM40 combines reliable performance with versatile setup, ideal for fabrication, prototyping, or general machine shop work.
Features:
- Geared head drive with 6 speed range (95-1,600 rpm) for smooth, high-torque performance across various materials
- Drilling capacity up to 30 mm in mild steel (maximum) and 25 mm continuous
- 3 MT spindle taper with M12 draw bar

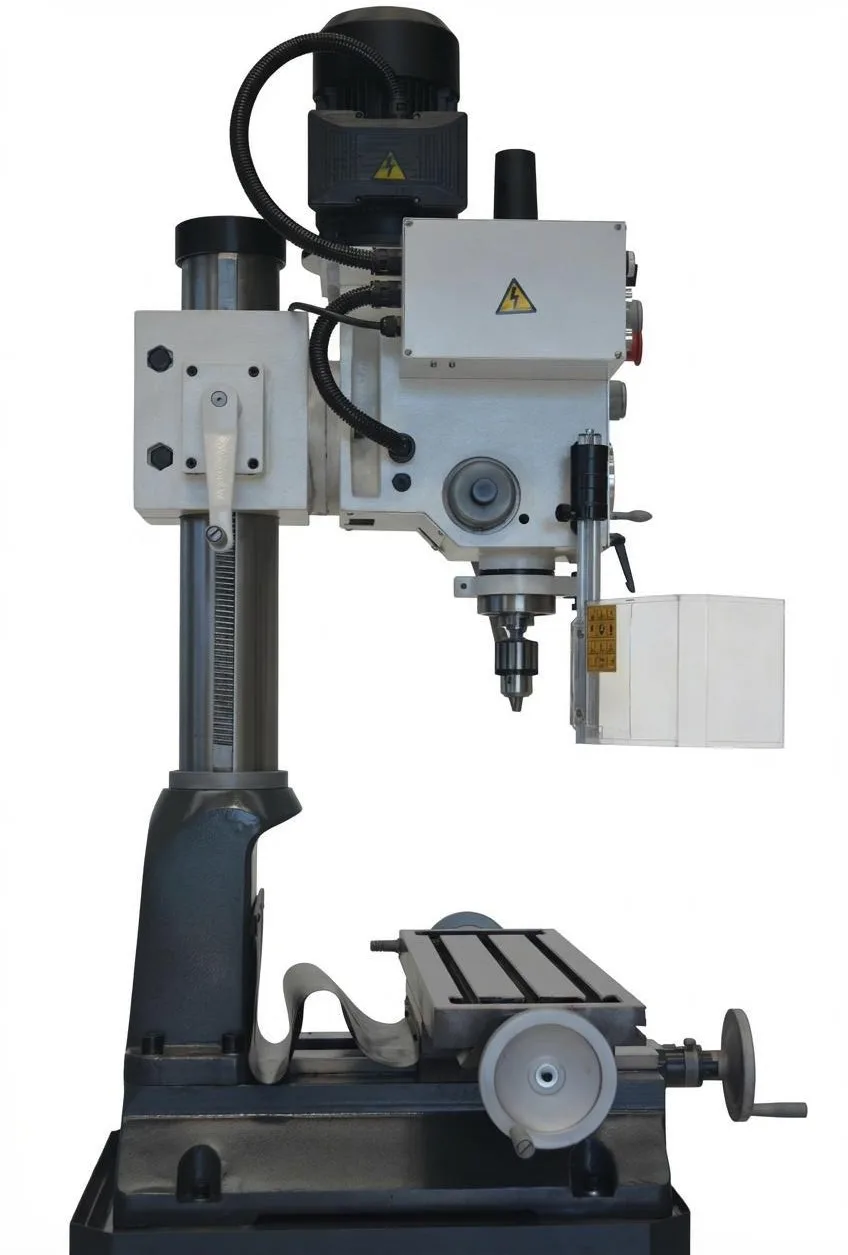

- Tilting and rotating head for angled drilling and versatile setups
- Integrated fine-feed handwheel for precise depth control
- Forward/reverse spindle operation
- Integrated coolant system for extended tool life

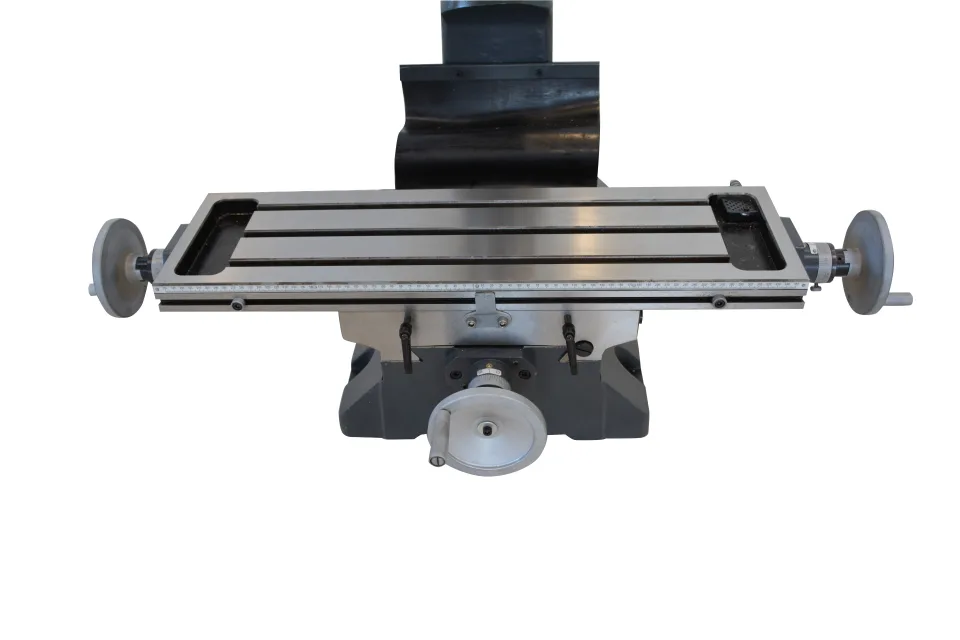

- 730 x 210 mm compound table with 500 x 230 mm X/Y travel, T-slots for secure fixturing
- Accepts Tee nut M12 x 14mm on compound table
- 130 mm quill travel and 115 mm diameter cast iron column for stability
- Single-phase 230 V, 1.5 kW motor for workshop-friendly operation
Optional accessories :
- Coolant system
- Sheetmetal cabinet stand (check last photo)
- Longitudinal power feed unit
- Heavy duty cast iron stand
- Drill Chuck & arbor (as shown)
Safety features:
- Latching Emergency stop separate from the on / off buttons
- Drill chuck safety shield with interlocked microswitch
- CE conformity
