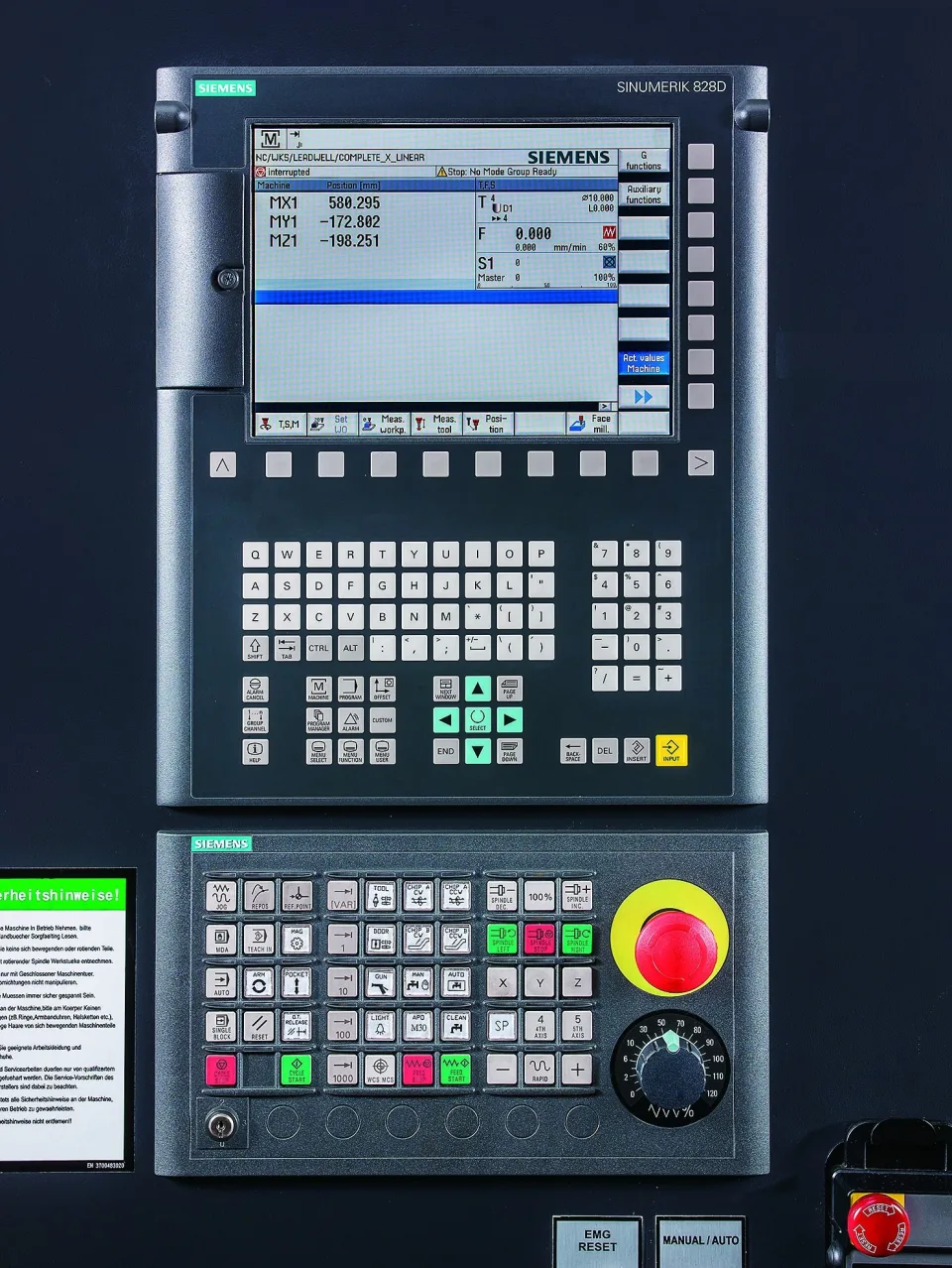

Leadwell V60 CNC Vertical Machining Centre
POA
CNC-0-1061 | Prices exclude GST
Product overview
About this machine.
Quality Taiwanese Manufacturing
Standard Accessories:
- 8000rpm spindle
- Rigid tapping
- Inside screw type chip conveyor
- Umbrella type chip conveyor
- RS 232 interface
- Fanuc 21MB
Options:
- Coolant through spindle preparation
- High pressure filter system
- Arm type ATC
- 10000 rpm spindle
- 15000 rpm spindle
- 20000 rpm spindle
- 45000 rpm attachment
- Chain type chip conveyor
- 2 speed geared head
- Automatic tool length measurement
- Automatic tool breakage detection
- 4th axis package
- Other controls available
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | V-60 | |
|---|---|---|
| Travel | ||
| Travel on X axis (Table, longitudial) | mm | 1520 |
| Travel on Y axis (Table, cross) | mm | 760 |
| Travel on Z avis (Spindle, vertical) | mm | 610+110 |
| Table | ||
| Table top to spindle nose | mm | 120-730 |
| Working Area | mm | 1680x750 |
| Spindle | ||
| Spindle Taper | BT40 | |
| Spindle speed r.p.m. | 80-8000 | |
| Feedrates | ||
| Rapid traverse speed, X,Y/Z | mm/min | 18000/1500 |
| Automatic Tool Changer | ||
| Number of tool pots / Arm type ATC(OPT.) | 24/214(32) | |
| Motors | ||
| Spindle motor 30min./continuous | HP | 20/14.7 |
| Miscellaneous | ||
| Total machine wieght | kg | 9000 |
