Leadwell V-50L CNC Vertical Machining Centre
Siemens 828D
POA
CNC-0-1058 | Prices exclude GST
Product overview
About this machine.

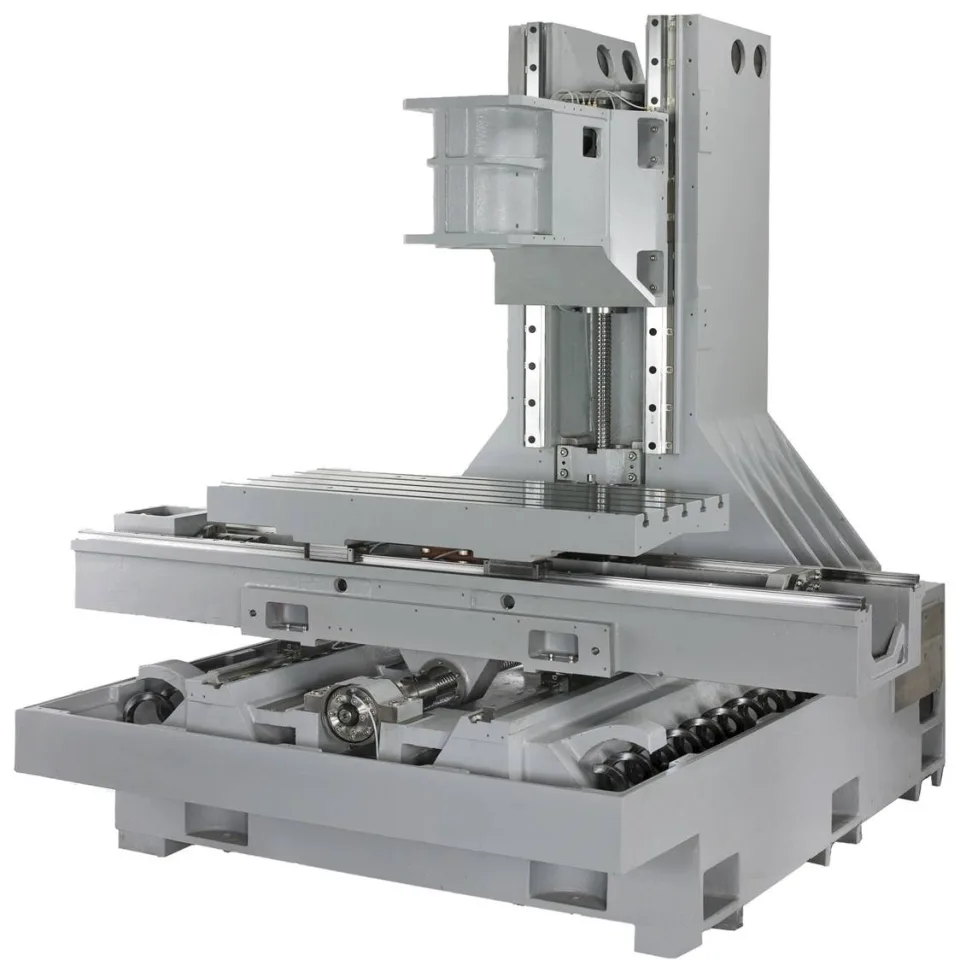

New generation V-Series with enhanced rigidity and cutting performance. This has been achieved with an increased base weight of 1000kg, FEA computer analysis of design, closed type cast iron construction. Cross roller type, instead of ball type linear guides, Heavy duty ballscrew support with increased pretension and higher rapid traverse rates. Many other new features have been incorporated in this new design.

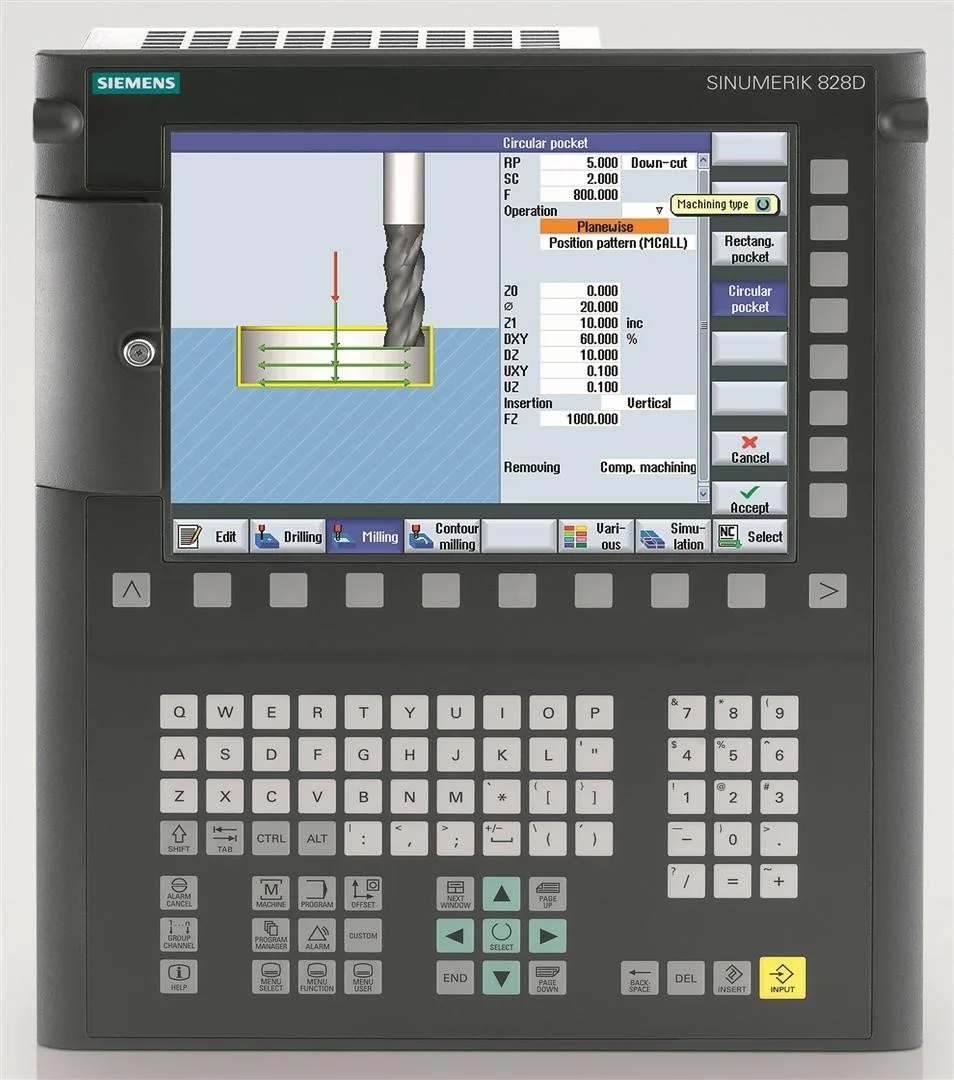

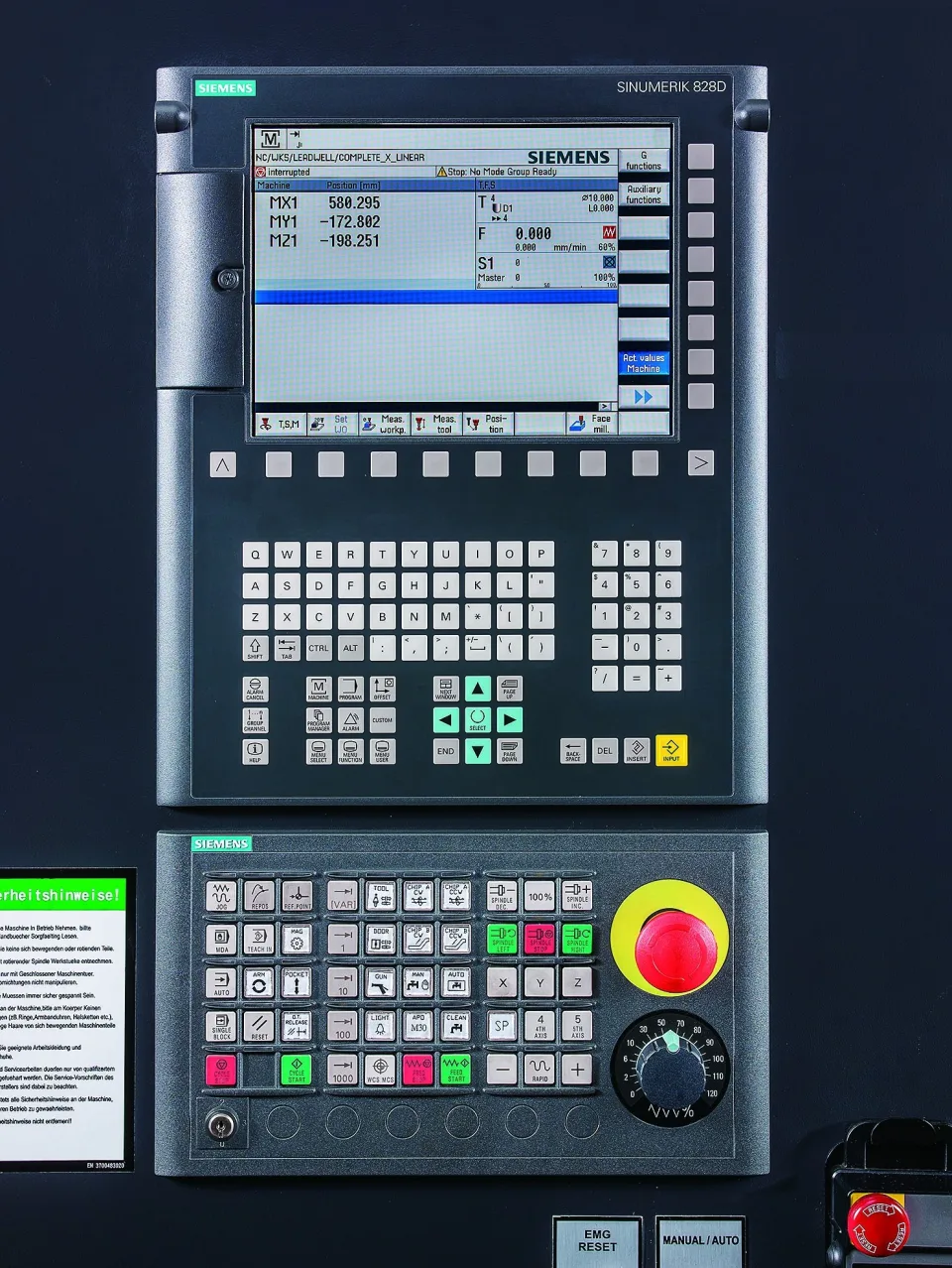

Siemens 828D Control (Fanuc optional)
- ShopMill conversational programming, ProgramGUIDE and ISO programming
- 3D Solid graphics simulation
- Advance Surface technology for highspeed 3D surfaces
- Ethernet
- CF Card
- USB
- RS-232
ATC 24 Tools (arm type)
- Spindle 10,000rpm (ceramic bearings)
- Spindle Cooler Device
- Spindle Purge System (w/ valve)
- Spindle Air Blast
- Spindle coolant ring (4 jets)
- Programmable air blow
- CTS Preparation
- Base wash coolant system
- Coolant gun
- Oil skimmer
- Twin auger chip converyors plus
- Chain type chip conveyor and bucket
- 4th axis Preparation (pre-wire)
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | V-50L | |
|---|---|---|
| Travel | ||
| Travel on X axis (Table, longitudial) | mm | 1270 |
| Travel on Y axis (Table, cross) | mm | 635 |
| Travel on Z avis (Spindle, vertical) | mm | 610 |
| Table | ||
| Table top to spindle nose | mm | 100 - 710 |
| Working Area | mm | 1420 x 610 |
| Spindle | ||
| Spindle Taper | BT40 | |
| Spindle speed | rpm | 10,000 |
| Feedrates | ||
| Rapid traverse speed, X,Y/Z | m/min | 36 |
| Cutting feedrate | m/min | 10 |
| Automatic Tool Changer (ATC) | ||
| Number of tools | 24 | |
| ATC Type | Arm type | |
| Motors | ||
| Spindle motor | kW (HP) | 18.5 (25) |
| Machine size | ||
| Floor space (LxWxH) | mm | 2200 x 3840 x 2721 |
| Weight | kg | 7000 |
