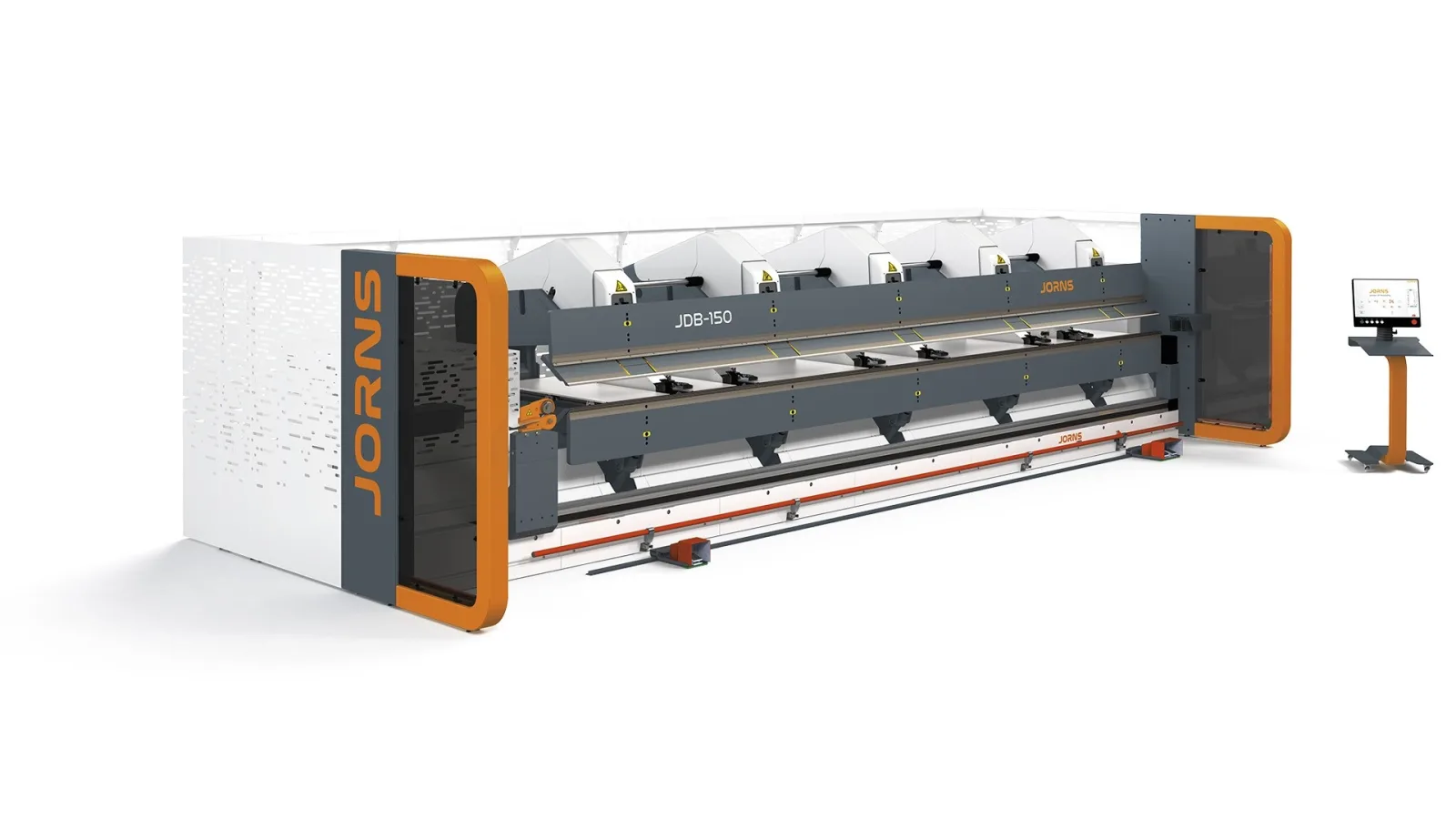

Jorns JDB CNC Double Bending Machines

Made in Switzerland Fully Automatic Bending Series Models up to 3mm capacity by 12.2m long

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Thickness Range Bending Length Range
1.25mm - 3mm 3.2m / 4m / 5.2m / 6.4m / 8m / 10m / 12.2m
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

For over 50 years, JORNS AG has been pioneering sheet metal solutions with uncompromising Swiss quality. JORNS bending and double bending machines don't just process metal, they transform your workflow and expand your possibilities. The fully automated JDB double bending machine enables simultaneous bending of parallel, tapered, or overlapped profiles, dramatically accelerating your production cycles while maintaining exacting precision. All this is achieved without needing to remove & turn material. The automatic loading and unloading system, combined with individually driven clamping fingers, delivers efficiency without compromise.

Made in Switzerland

  • Fully Automatic Series
  • with finger clamp feeding system
  • 21 1/2 inch LCD touch screen control with user friendly graphically assisted program input
  • Team viewer integration for remote support
  • Programable 1250mm depth stop
  • Every JORNS machine is configurable to your exact specifications
  • Bending lengths from 3.2 to 12.2 meters
  • Capacity for sheet metal up to 3mm thick
  • Maximum bending angle of 145 degrees
  • Specialized geometric tooling allowing for complex folds
  • Advanced options for control systems, back stop systems, and precision shears

Integrated software options

  • Offline programming software is available
  • J Bend app allows for users to create drawings on site and send them directly to the machine
  • Optional
  • Dynamic positioning for compensating deformation on profile ends
  • Laser hardened tooling
  • Hydraulic material thickness adjustment for air gap settings.

Machine video

See Jorns JDB in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Thickness Range Bending Length Range
1.25mm - 3mm 3.2m / 4m / 5.2m / 6.4m / 8m / 10m / 12.2m
