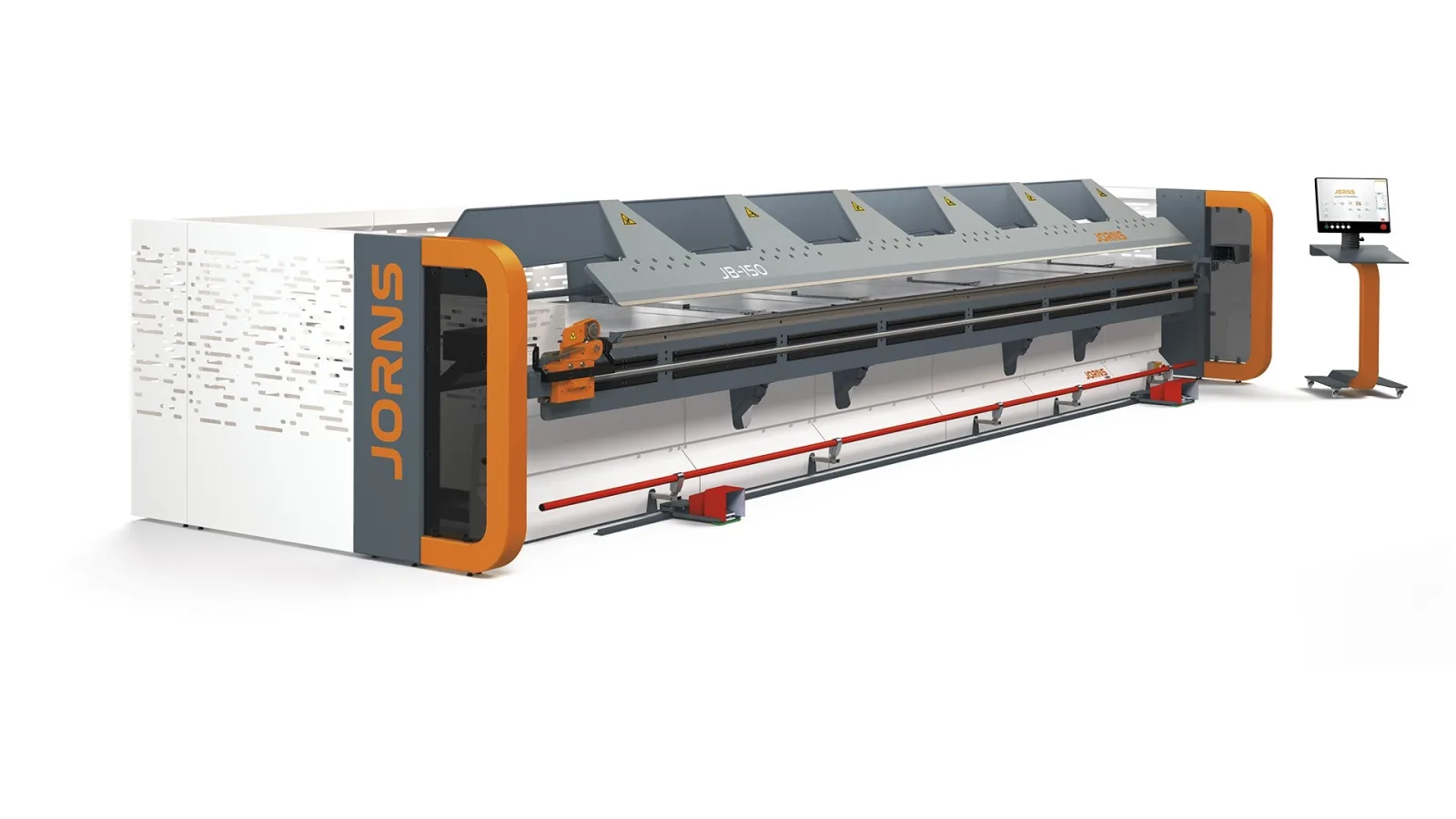

Jorns JB CNC Bending Machines

Made in Switzerland Models up to 3mm capacity by 12.2m long

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Ranges & Models Material lengths
1.25mm & 1.5mm 3.2m / 4m / 5.2m / 6.4m / 8m / 10m / 12.2m
2mm 3.2m / 4m / 5.2m / 6.4m / 8m / 10m / 12.2m
3mm 3.2m / 4m / 5.2m / 6.4m / 8m / 10m / 12.2m
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

For over 50 years, JORNS AG has been pioneering sheet metal solutions with uncompromising Swiss quality. JORNS bending and double bending machines don't just process metal, they transform your workflow and expand your possibilities. The semi automatic JB bending machine gives you unprecedented open space behind the clamping tool, allowing you to manufacture complex profiles without constraints. With intuitive graphic controls and servo technology precision, your projects gain both time and creative freedom.

Made in Switzerland

  • 21 1/2 inch LCD Touch screen control with user friendly graphically assisted program input.
  • Team viewer integration for remote support
  • Folding simulation can be checked step by step at the display for feasibility.
  • Programmable 1250mm depth stop
  • Every JORNS machine is configurable to your exact specifications
  • Bending lengths from 3.2 to 12.2 meters
  • Capacity for sheet metal up to 3mm thick
  • Advanced options for control systems, back stop systems, and precision shears
  • Upper bending beam overload relief
  • Overload protection
  • Equipped with slitter cutter

Integrated software options

  • Offline programming software is available
  • J Bend app allows for users to create drawings on site and send them directly to the machine
  • Optional
  • Dynamic positioning for compensating deformation on profile ends
  • Laser hardened tooling
  • Hydraulic material thickness adjustment for air gap settings.

Machine video

See Jorns JB in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Ranges & Models Material lengths
Norma Line
1.25mm & 1.5mm 3.2m / 4m / 5.2m / 6.4m / 8m / 10m / 12.2m
Maxi Line
2mm 3.2m / 4m / 5.2m / 6.4m / 8m / 10m / 12.2m
Super Line
3mm 3.2m / 4m / 5.2m / 6.4m / 8m / 10m / 12.2m

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
