Jorns JDB CNC Double Bending Machines
POA
WEB-JORNS TWIN | Prices exclude GST
Product overview
About this machine.

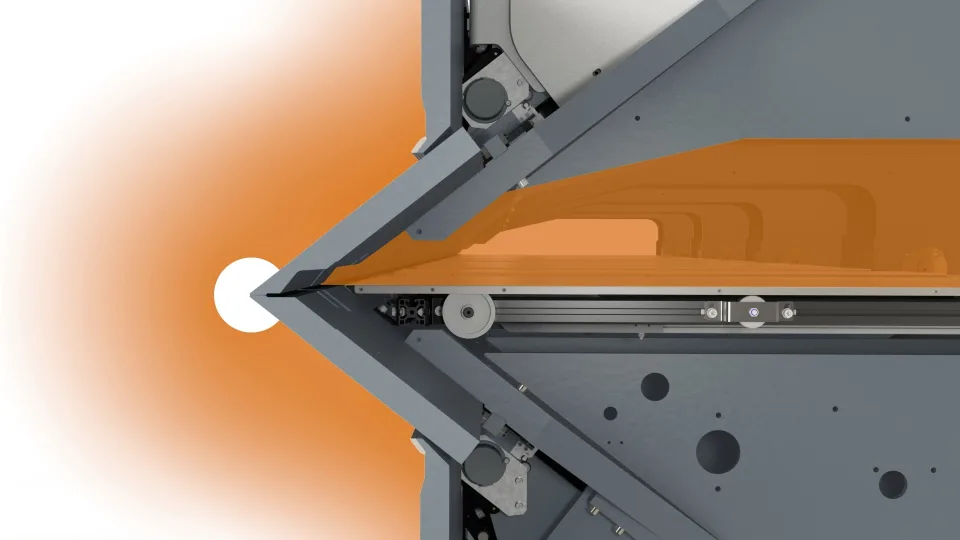

For over 50 years, JORNS AG has been pioneering sheet metal solutions with uncompromising Swiss quality. JORNS bending and double bending machines don't just process metal, they transform your workflow and expand your possibilities. The fully automated JDB double bending machine enables simultaneous bending of parallel, tapered, or overlapped profiles, dramatically accelerating your production cycles while maintaining exacting precision. All this is achieved without needing to remove & turn material. The automatic loading and unloading system, combined with individually driven clamping fingers, delivers efficiency without compromise.
Made in Switzerland
- Fully Automatic Series

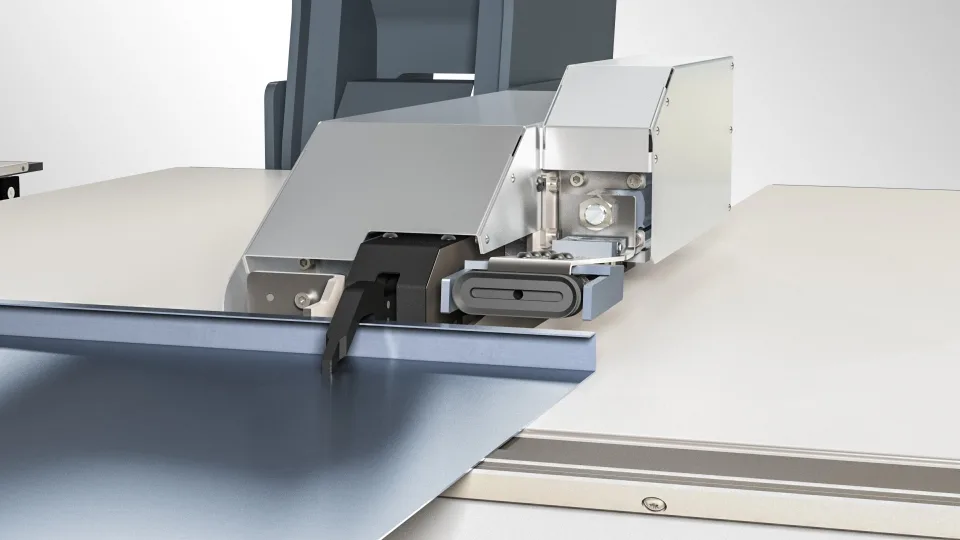

- with finger clamp feeding system

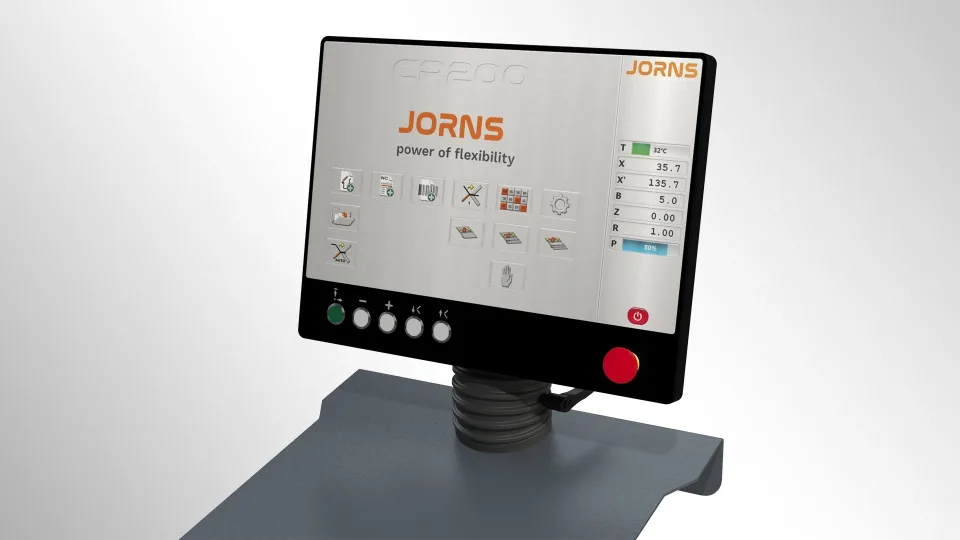

- 21 1/2 inch LCD touch screen control with user friendly graphically assisted program input
- Team viewer integration for remote support
- Programable 1250mm depth stop
- Every JORNS machine is configurable to your exact specifications
- Bending lengths from 3.2 to 12.2 meters
- Capacity for sheet metal up to 3mm thick
- Maximum bending angle of 145 degrees

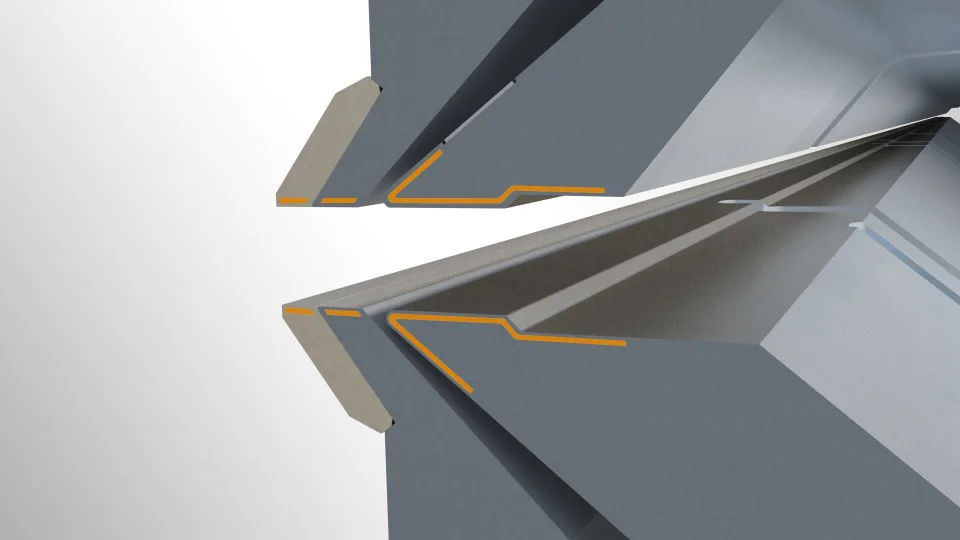

- Specialized geometric tooling allowing for complex folds
- Advanced options for control systems, back stop systems, and precision shears
Integrated software options
- Offline programming software is available
- J Bend app allows for users to create drawings on site and send them directly to the machine
- Optional
- Dynamic positioning for compensating deformation on profile ends
- Laser hardened tooling
- Hydraulic material thickness adjustment for air gap settings.
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Thickness Range
Bending Length Range
1.25mm - 3mm
3.2m / 4m / 5.2m / 6.4m / 8m / 10m / 12.2m
