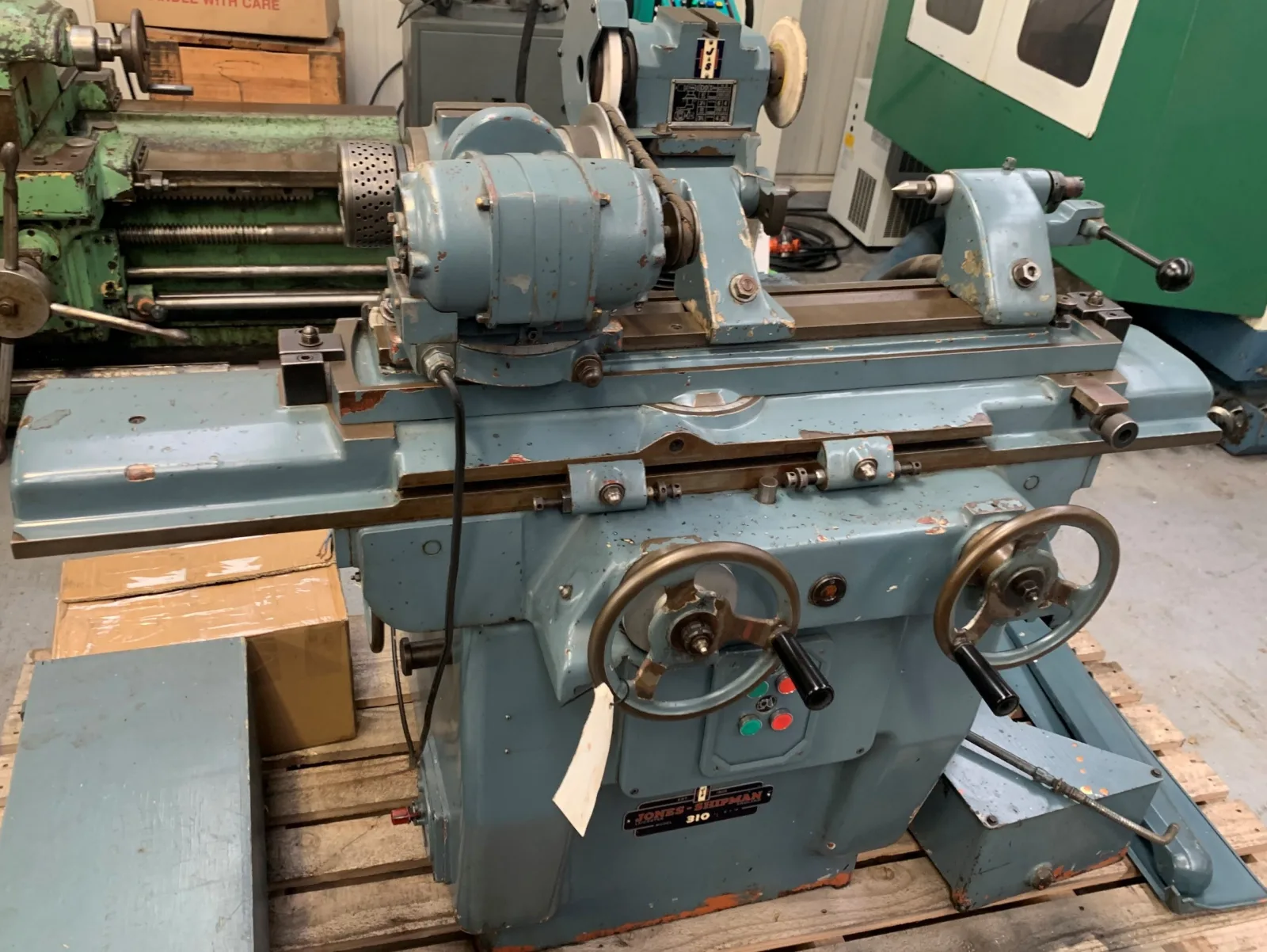

Jones & Shipman 301 Used Tool & Cutter Grinder
1 / 9
GMIS-1-1902

Jones & Shipman 301 Used Tool & Cutter Grinder

Beautiful Jones & Shipman Tool and cutter grinder. Accessories and attachments as per the photos.

SOLD Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Power supply 415 volts / 50 hz / 3 phase
Freight details 1700mm x 1200mm x 1800mm
Weight (Approximate) 1000kg
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The Jones & Shipman 301 is a compact, high precision tool and cutter grinder designed for sharpening a wide variety of cutting tools including end mills, drills, reamers, and lathe tools. Renowned for its robust British engineering and exceptional build quality, the 301 delivers smooth, accurate grinding performance ideal for toolrooms, maintenance departments, and light production use. Its versatile workhead, adjustable table, and rigid spindle system allow for intricate regrinding work across multiple axes. With Jones & Shipman's reputation for reliability and accuracy, the 301 remains a trusted solution for precision tool maintenance.

The Jones & Shipman 301 is a robust, manual tool & cutter grinder built for high precision in sharpening end mills, drills, reamers, cutters, and various lathe tooling. Rooted in British engineering excellence, it combines fine mechanical control with adaptability, ideal for tool rooms, maintenance work, and light production environments.

Key features

  • Table Dimensions & Travel
  • Working surface: approx 749 x 108 mm Longitudinal traverse: 445 mm
  • Cross traverse: 187 mm
  • Swing Capacity
  • Maximum swing between standard centres: approx 203 mm On cutter head: up to 305 mm
  • Wheelhead & Motor
  • Dual wheel speeds: 3,600 and 5,000 rpm
  • Motor power: approx 1.13 kW
  • Adjustability & Swivels
  • 360 degree swivel of wheelhead column
  • 360degree swivel in vertical plane and 180degree motor swivel for ergonomic positioning
  • Vertical adjustment range of approx 230 mm
  • Workhead & Attachments
  • Supplied with universal workhead, tailstock, swivel table, and centres
  • Fully manual controls offering tactile precision and repeatability
  • Rigid build ensures stability under light to moderate tool regrinding tasks

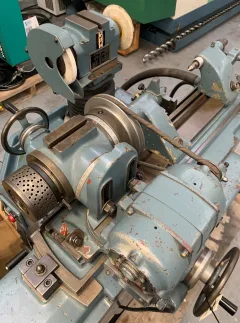

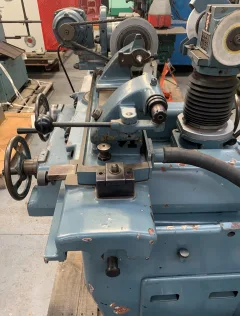

The photos show additional accessories and set up arrangements

  • All accessories in the photos come with the machine
  • Please note
  • We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Power supply 415 volts / 50 hz / 3 phase
Freight details 1700mm x 1200mm x 1800mm
Weight (Approximate) 1000kg
