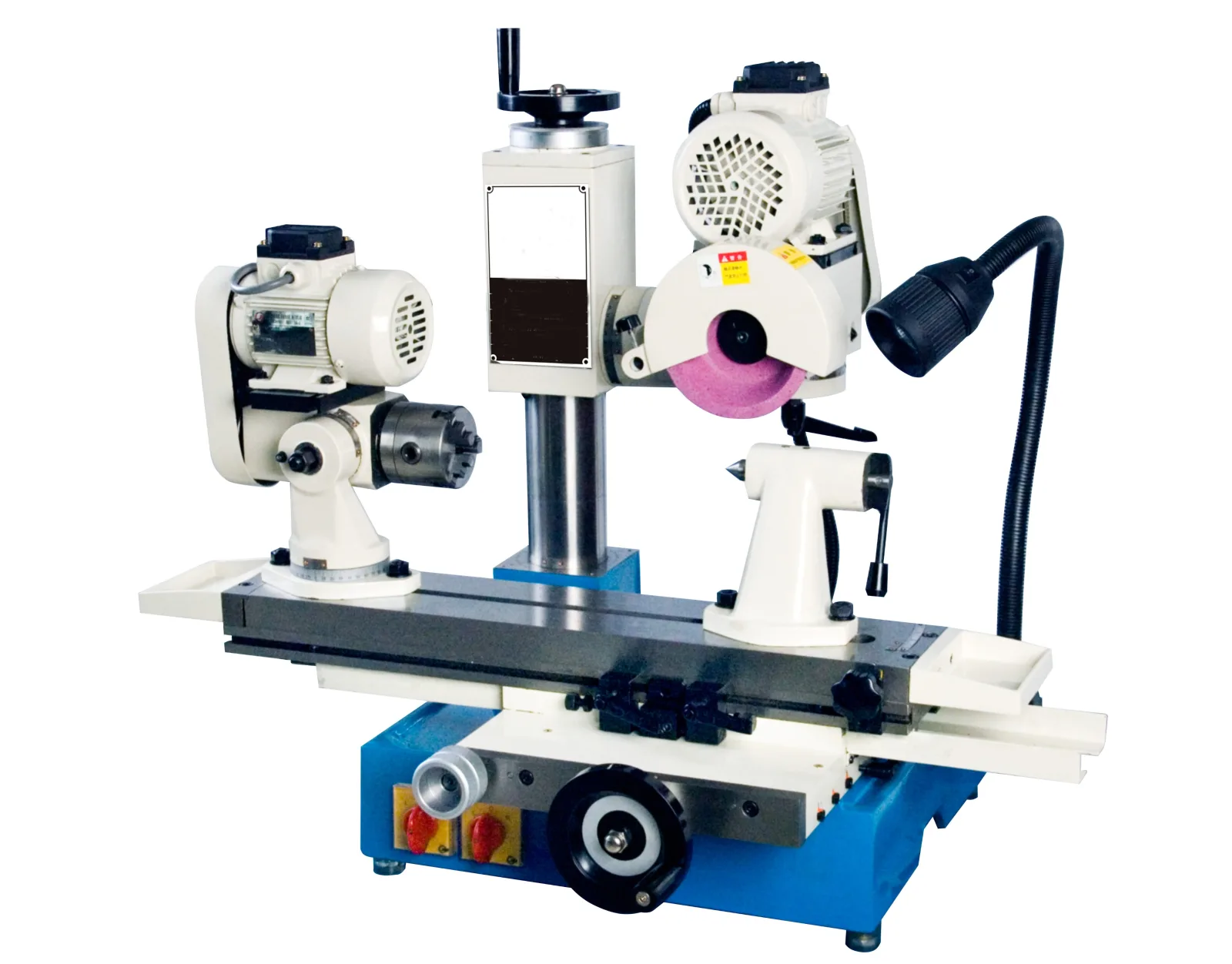

Luxcut TC-6025 Tool & Cutter Grinder

TOOL & CUTTER GRINDER LUXCUT TC6025 1PH

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Distance between centres 450mm
Centre height 135mm
Grinding diameter (nominal) 250mm
Longitudinal table travel 310mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

The Luxcut TC-6025 Tool & Cutter Grinder is a standard 6025-type universal grinder. It is built for sharpening and reworking cutters in-house rather than sending them out. Handles drills, end mills, taps, lathe tools and form cutters using the supplied attachments. The 360 degree rotating wheel head and motorised work head let you set up most angles you need without fighting the machine. Cast base and linear slide table keep it stable and predictable, not flimsy. Comes with collets, arbors and indexing gear so you can actually use it straight away.

Features:

  • Wheel head can rotate 360 degrees around column
  • Driven head with 80mm 3 jaw chuck
  • 50C 50H Universal tool grinding attachment with indexing plates
  • Tailstock & dead centre
  • 50K Drill grinding attachment with 113mm 6 jaw chuck
  • 50D End mill grinding attachment 5C collet type & tool support c/w 7 pces 5C collets 6,8,10,12,16,20,25mm
  • Single phase 240v
  • Bench mount
  • Swivel table
  • Halogen lamp
  • Forward/reverse on both motors
  • Arbor 4MT x 27mm

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Centre height 135mm
Grinding diameter (nominal) 250mm
Distance between centres 450mm
Longitudinal table travel 310mm
Cross table travel 150mm
Table size 130 x 680mm
Height movement of wheel head 150mm
Speed of grinding wheel 4,200 / 7,000 rpm
Grinding wheel dimensions 150 x 32 x10mm
Grinding wheel power 750w
Drive head power 560w
Spindle taper 4MT
Nett machine weight 215 kg
Gross packaged weight 235 kg
Packaged shipping dimensions 730 x 710 x 715mm
