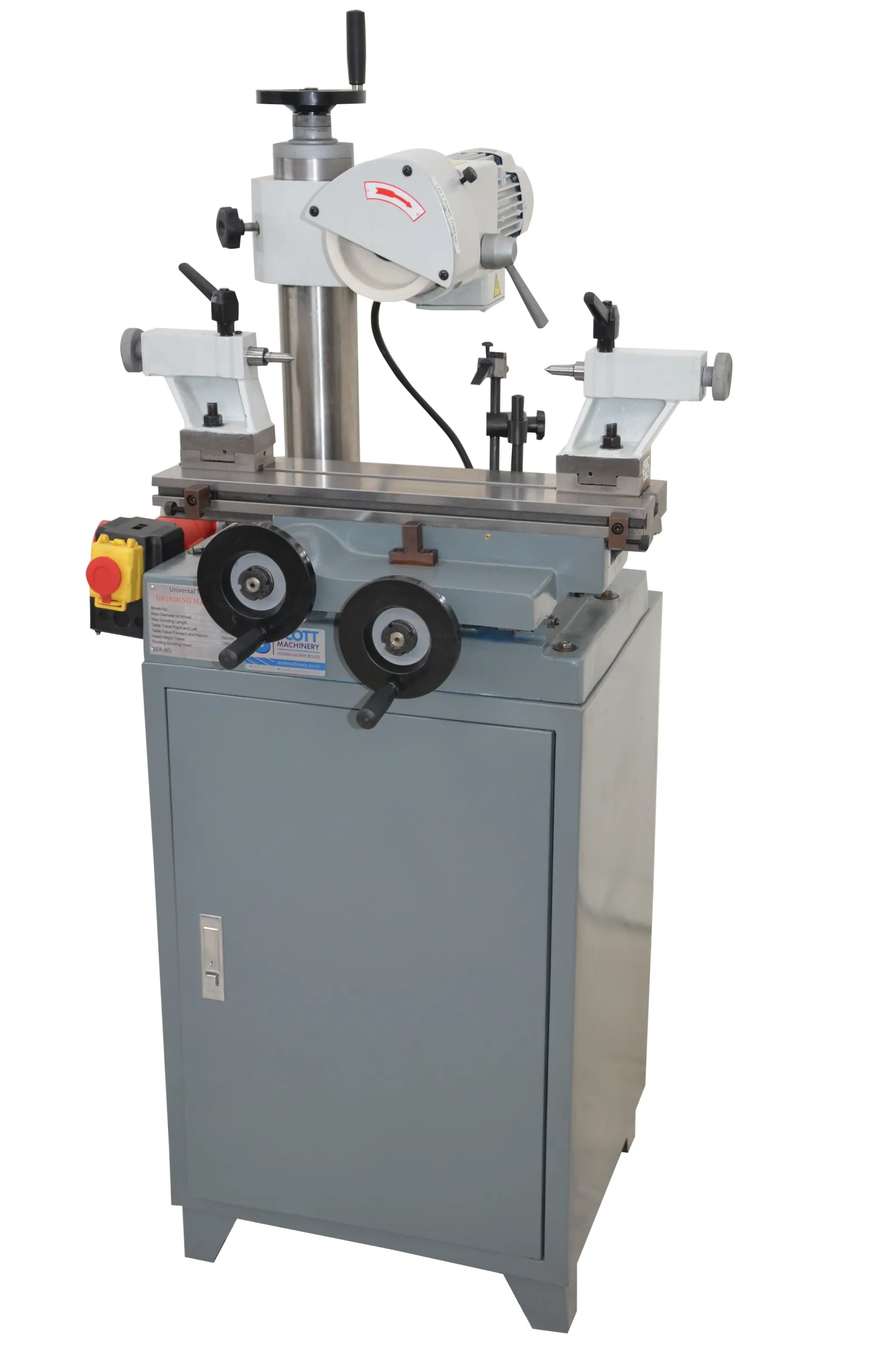

Luxcut GJW-120 Universal Tool & Cutter Grinder
Luxcut logo GT&C-0-0031

Workshop Machinery · Grinding & linishing

Luxcut GJW-120 Universal Tool & Cutter Grinder

Ideal for sharpening end mills, counter sinks, fluted cutters

$4,500.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Maximum grinding length 320mm
Longitudinal table travel 360mm
Cross table travel 160mm
Height movement of wheel head 120mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

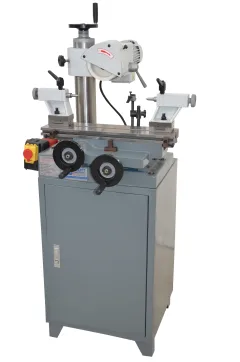

The Luxcut GJW-120 Tool & Cutter Grinder is a small, manual cutter grinder for basic sharpening jobs, not a full universal toolroom machine. Built for end mills, countersinks and fluted cutters, it uses a simple table, chuck and tailstock setup to hold and index tooling. Travel and adjustment are straightforward, so you can set angles without overcomplicating things. Lightweight wheel head and small motor mean it's suited to touch-ups and light regrinding, not heavy stock removal or production work. It's the same type of machine sold worldwide under different names for small shops and maintenance use. Good option for a workshop that needs a simple, low-cost way to keep cutters usable without sending them out.

Features:

  • Ideal for sharpening end mills, countersinks and fluted cutters
  • Simple manual setup - no complex controls or electronics
  • 80mm 3-jaw chuck for holding cutters
  • Tailstock with centres for supporting longer tooling
  • Adjustable table travel (longitudinal and cross) for positioning work
  • Grinding head tilt +/-40 degrees for setting rake and clearance angles
  • Grinding head swivel +/-50 degrees around column for added flexibility
  • 125mm grinding wheel running at 2800 RPM
  • Compact bench machine with cabinet stand
  • Light-duty motor (180W) suited to sharpening, not heavy grinding
  • Cast construction for basic rigidity and repeatable setups

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Maximum grinding length 320mm
Longitudinal table travel 360mm
Cross table travel 160mm
Height movement of wheel head 120mm
Grinding wheel dimension 125mm
Grinding wheel tilt forward/back +/- 40 degrees
Grinding head pivot around column +/- 50 degrees
Grinding wheel speed 2800 rpm
Wheel motor 180w 3 phase 400v
Dimensions 1300 x 780 x 950mm
Nett weight 208 kg + stand
