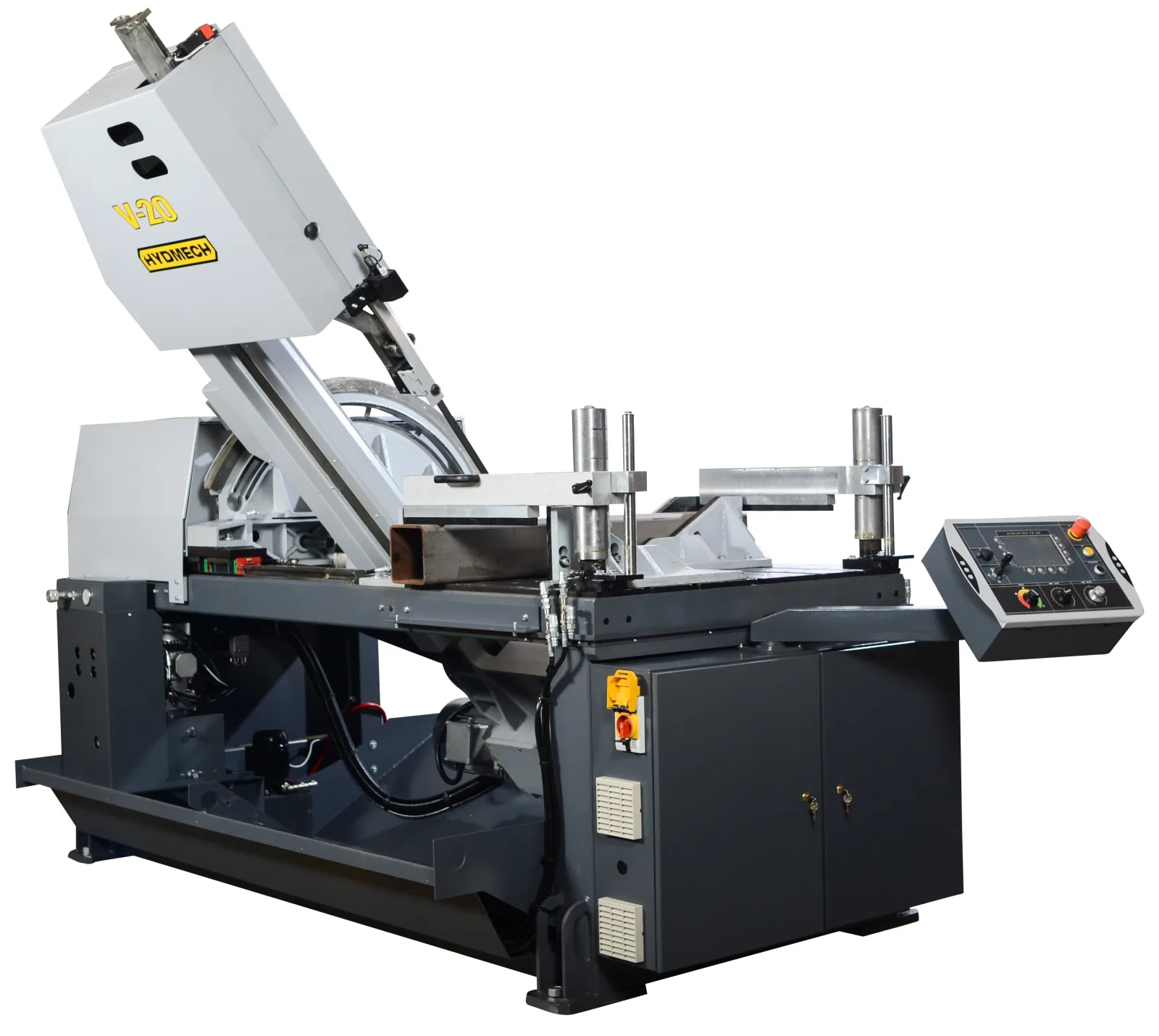

Hydmech V-20 Semi-Auto Vertical Mitering Band Saw
Vertical double mitre cutting to 60 degrees Semi-automatic, 635 x 508mm capacity
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Blade size
41x5880mm
Blade drive
7.5kW VFD
Blade speed
19-121m/min
Machine weight
1909kg
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Quality Canadian Manufacturing
Key features
- 4° canted head allows for efficient cutting and improved blade life
- Cast iron, torsion free saw head provides durability, stiffness, and absorbs vibrations
- On-demand hydraulics save energy
- High efficiency, constant torque electric ball screw feed system
- Automatic programmable mitring with “go to” angle functionality from 60° left to 60° right
- Semi-automatic touch screen NC controller
- Two full stroking hydraulic vises
- Electronic ball screw powered, guide arm
- 10 HP VFD. True direct blade drive – no belts/pulleys
- Cast iron band wheels
- Replaceable blade brush
- Robust steel base
- Variable vise pressure
- Easy access electrical panel and hydraulics
- Electric chip conveyor
- Blade breakage switch
Electronic band tensioning provides consistent, automatic blade tension
- Replaceable carbide guide inserts
- 2 HP hydraulic pump provides system pressure
- Safety door interlocks
- Flood coolant with wash down hose
- Laser light
- Work light
Optional Machine Features:
- Hydraulic overhead bundling
- Mist lubrication
- Tall square vise inserts
- Pop up feed roller and table
- Idler conveyors
- Powered conveyors
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Hydmech | V-20 | ||
|---|---|---|---|
| Capacity | Rectangular (HxW) | Square | Round |
| 90° | 635x508mm | 508x508mm | 508mm |
| 45° Left/Right | 431x508mm | 431x431mm | 431mm |
| 60° Left/Right | 285x508mm | 287x287mm | 287mm |
| Blade size | 41x5880mm | ||
| Blade drive | 7.5kW VFD | ||
| Blade speed | 19-121m/min | ||
| Machine weight | 1909kg | ||
| Table height | 1118mm | ||
| Dimensions (LxWxH) | 3251x1178x2844mm |
