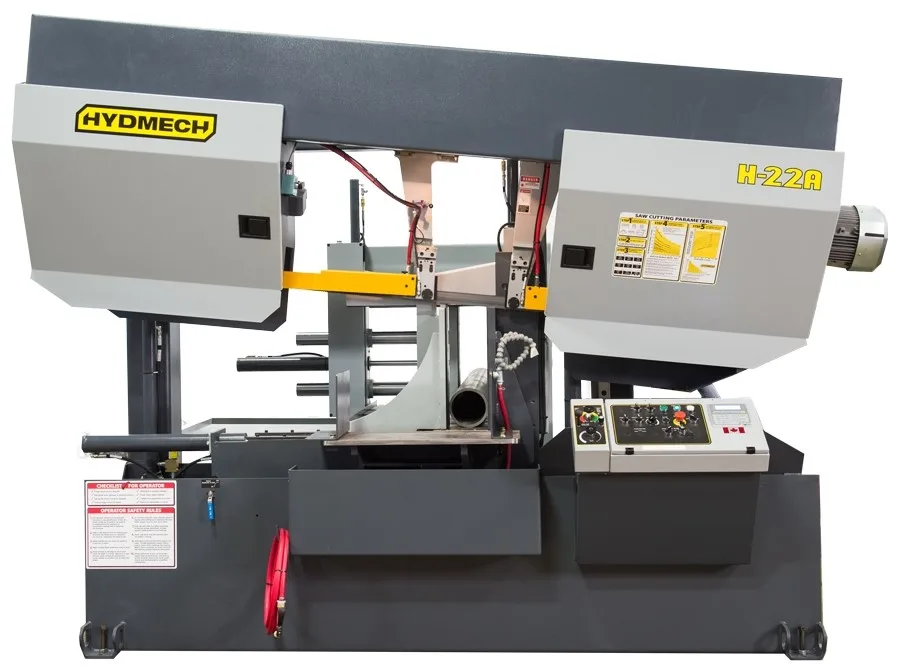

Hydmech H-22A Automatic Dual Post Horizontal Band Saw
1 / 3
Hydmech logo SAWB-0-8820

Saws & Cutting · Bandsaws

Hydmech H-22A Automatic Dual Post Horizontal Band Saw

Fully automatic NC feed band saw Horizontal 560 x 560mm capacity

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Blade size 6853 x 54mm
Blade drive 7.5 kW VFD
Blade speed range 12 - 91 m/min
Machine weight 5861kg
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Fully automatic NC feed band saw Horizontal 560 x 560mm capacity

Quality Canadian Manufacturing

Key features

  • One piece design – no alignment necessary
  • Spilt front vise allows for short remnant length
  • Cast iron shuttle features automatic multi-indexing up to 863 mm in a single stroke with automatic kerf compensation.
  • Cast iron guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
  • Hydraulic positive down feed
  • Blade chamber separates material from cut part
  • 7.5 kW VFD. True direct blade drive – no belts/pulleys
  • Full capacity, full stroking hydraulic vises
  • High resolution feed rate valve allows for constant feed rate when cutting special alloys
  • Cast iron band wheels
  • Automatic PLC control programmable up to 99 jobs with 5 in queue.
  • Replaceable blade brush
  • Robust steel base
  • Automatic chip removal auger
  • Easy access electrical panel and hydraulics
  • Blade breakage switch
  • Hydraulic band tensioning with digital readout

Hydraulic carbide guide tensioning

  • Hardened, replaceable wear plates
  • Safety door interlocks
  • Flood coolant with wash down hose
  • Work light

Key features

  • Full capacity hydraulic overhead bundling
  • Variable vise pressure
  • 4 or 6 degree canted head
  • Blade deviation
  • Mist lubrication
  • Out of stock switch
  • Outboard vise
  • Outboard vise with bundling
  • Pedestal control
  • Roller discharge table
  • Vertical alignment rollers
  • Laser light
  • Idler conveyors
  • Powered conveyors

Machine video

See Hydmech H-22A in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Hydmech H-22A
Capacity Rectangle (HxW) Round Square
Straight 560x560mm 560mm 560mm
4° Canted 560x530mm 530mm 530mm
6° Canted 560x500mm 500mm 500mm
Blade size 6853 x 54mm
Blade drive 7.5 kW VFD
Blade speed range 12 - 91 m/min
Machine weight 5861kg
Table height 787mm (889mm w/cant)
Floor size (LxWxH) 3581 x 2248 x 2350mm
