Hydmech H-22A Automatic Dual Post Horizontal Band Saw
POA
SAWB-0-8820 | Prices exclude GST
Product overview
About this machine.
Fully automatic NC feed band saw Horizontal 560 x 560mm capacity
Quality Canadian Manufacturing
Key features
- One piece design – no alignment necessary
- Spilt front vise allows for short remnant length
- Cast iron shuttle features automatic multi-indexing up to 863 mm in a single stroke with automatic kerf compensation.

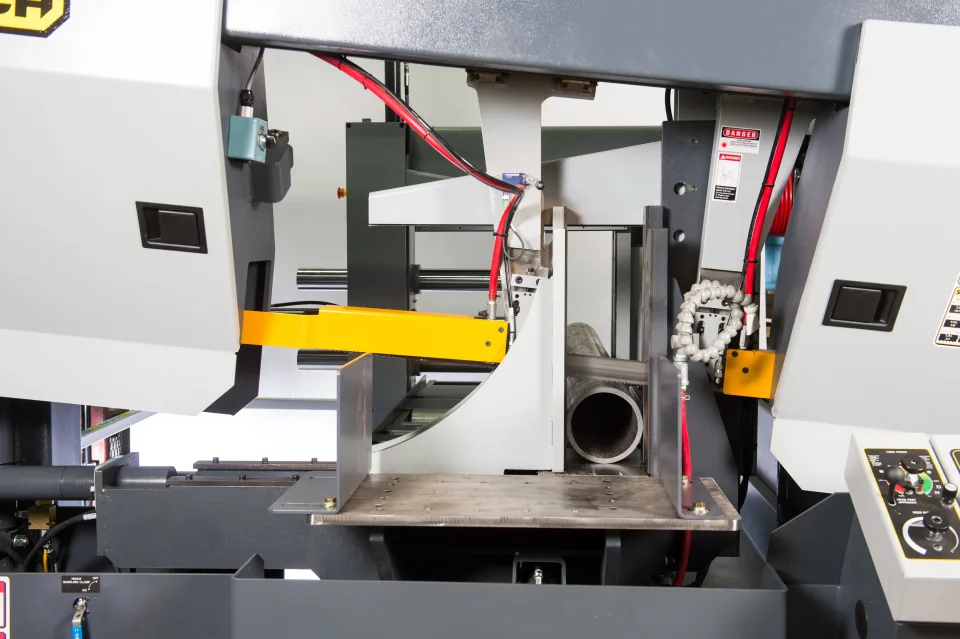

- Cast iron guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
- Hydraulic positive down feed
- Blade chamber separates material from cut part
- 7.5 kW VFD. True direct blade drive – no belts/pulleys
- Full capacity, full stroking hydraulic vises
- High resolution feed rate valve allows for constant feed rate when cutting special alloys
- Cast iron band wheels

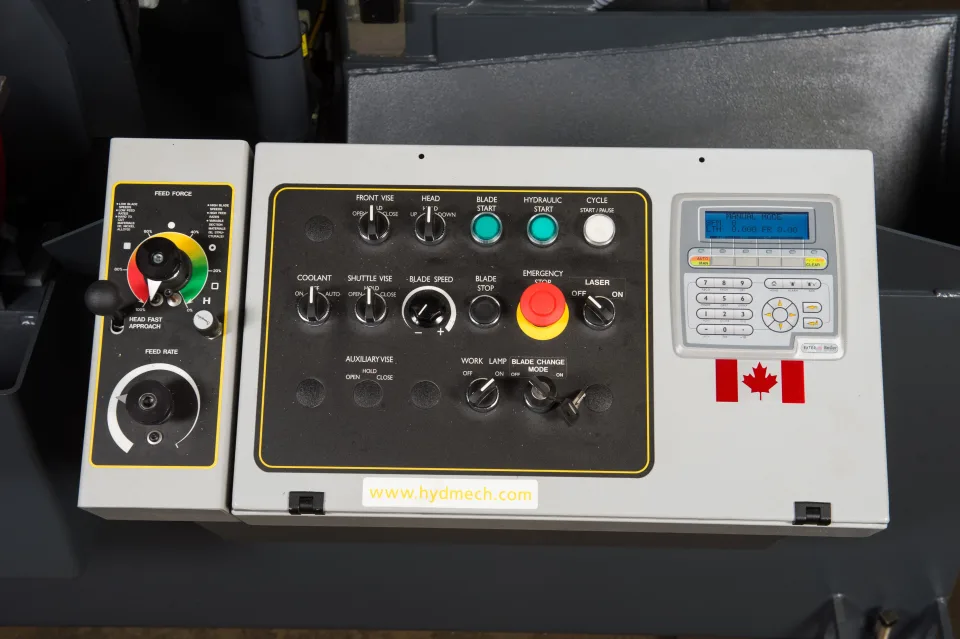

- Automatic PLC control programmable up to 99 jobs with 5 in queue.
- Replaceable blade brush
- Robust steel base
- Automatic chip removal auger
- Easy access electrical panel and hydraulics
- Blade breakage switch
- Hydraulic band tensioning with digital readout
Hydraulic carbide guide tensioning
- Hardened, replaceable wear plates
- Safety door interlocks
- Flood coolant with wash down hose
- Work light
Key features
- Full capacity hydraulic overhead bundling
- Variable vise pressure
- 4 or 6 degree canted head
- Blade deviation
- Mist lubrication
- Out of stock switch
- Outboard vise
- Outboard vise with bundling
- Pedestal control
- Roller discharge table
- Vertical alignment rollers
- Laser light
- Idler conveyors
- Powered conveyors
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Hydmech | H-22A | ||
|---|---|---|---|
| Capacity | Rectangle (HxW) | Round | Square |
| Straight | 560x560mm | 560mm | 560mm |
| 4° Canted | 560x530mm | 530mm | 530mm |
| 6° Canted | 560x500mm | 500mm | 500mm |
| Blade size | 6853 x 54mm | ||
| Blade drive | 7.5 kW VFD | ||
| Blade speed range | 12 - 91 m/min | ||
| Machine weight | 5861kg | ||
| Table height | 787mm | (889mm w/cant) | |
| Floor size (LxWxH) | 3581 x 2248 x 2350mm |
