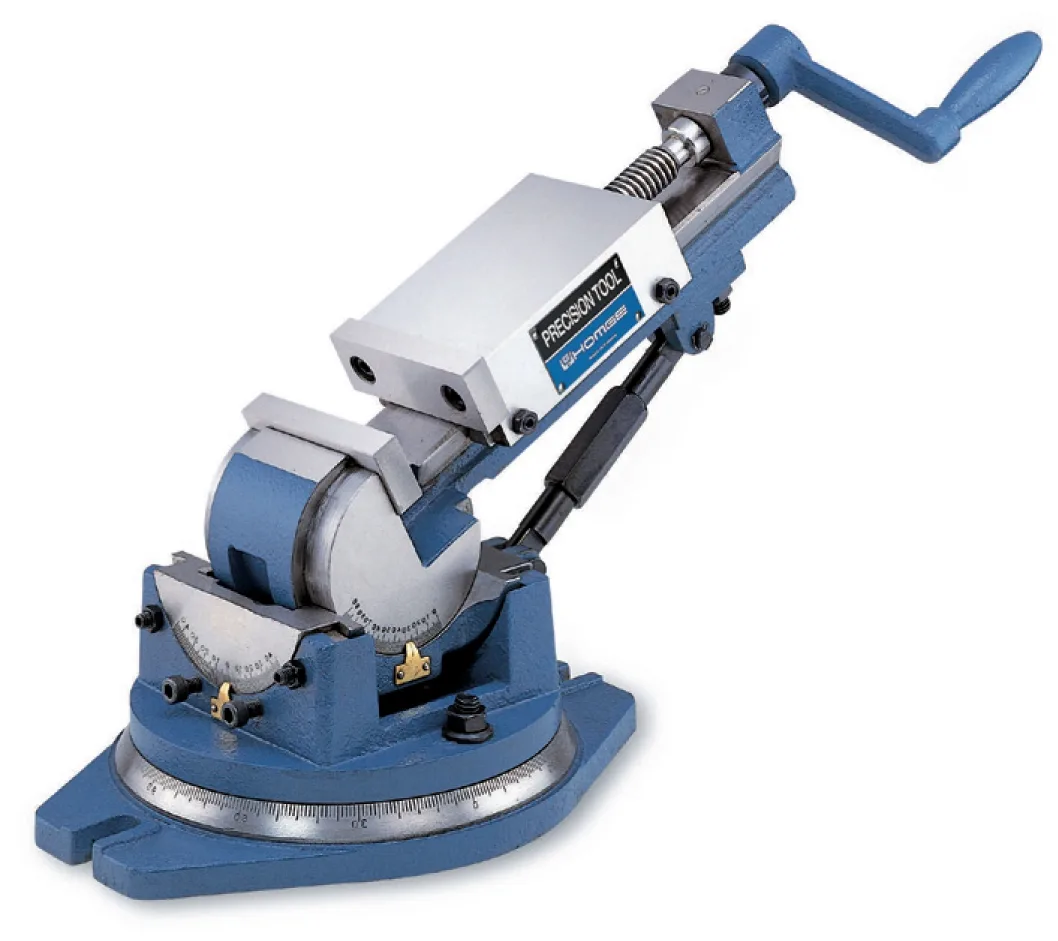

Homge HY5 Tilting Machine Vice
1 / 2
Homge logo G-VICE-0-2145

Tooling, Accessories & Consumables · Workholding

Homge HY5 Tilting Machine Vice

Universal 3-way tilting vice

POA Configured to suit your application. Talk to us for a price.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

HOMGE HY-5
Jaw width 132mm
Jaw opening 140mm
Jaw height 40mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

HOMGE manufactures precision workholding and inspection equipment built for workshop and production use. Their range includes machine vices, angle plates, sine tables, magnetic chucks and modular fixturing designed to deliver repeatable accuracy and solid clamping performance. Made in Taiwan using hardened and precision-ground components, HOMGE products are known for consistent quality, reliable alignment, and long service life in toolrooms, CNC machining, and general engineering environments. Suitable for both manual and CNC machines, HOMGE workholding is built to handle daily workshop use without unnecessary complexity.

The HOMGE HY-5 Tilting Machine Vice is a 3-axis adjustable vice designed for angled machining, inspection, and fixture work where flexible positioning is required. The design allows the workpiece to be set and locked in multiple orientations, reducing the need for complex fixturing. Built from ductile iron with hardened and ground slideways, it is suited to toolroom and general machining applications.

Features:

  • 3-axis adjustment allows positioning in multiple planes for angled machining
  • 360 degree swivel base with graduated scale for accurate rotation setting
  • Tilts 0-90 degrees from horizontal to vertical for flexible setup
  • Secondary tilt plus or minus 45 degrees left and right for compound angle work
  • All axes can be locked securely to maintain position under load
  • High quality ductile iron (FCD55) body for rigidity and durability
  • Hardened and ground slideways for wear resistance and smooth operation
  • Suitable for milling, drilling, jig and fixture work, and inspection setups
  • Reduces need for complex fixturing by allowing direct angle setting on the vice

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
HOMGE HY-5
Jaw width 132mm
Jaw opening 140mm
Jaw height 40mm
Dimensions L x W x H 625 x 275 x 420mm
Weight 45kg

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
