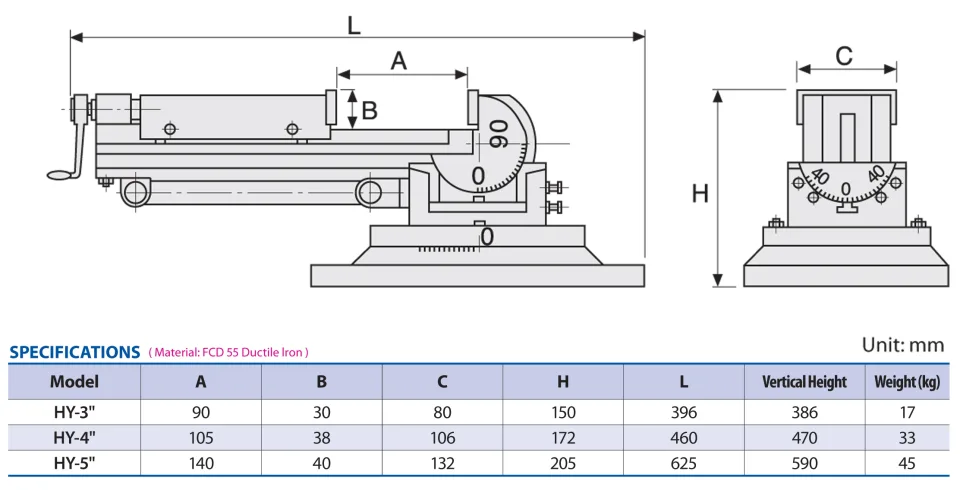

Homge HY5 Tilting Machine Vice
132 x 140mm
Product overview
About this machine.
HOMGE manufactures precision workholding and inspection equipment built for workshop and production use. Their range includes machine vices, angle plates, sine tables, magnetic chucks and modular fixturing designed to deliver repeatable accuracy and solid clamping performance. Made in Taiwan using hardened and precision-ground components, HOMGE products are known for consistent quality, reliable alignment, and long service life in toolrooms, CNC machining, and general engineering environments. Suitable for both manual and CNC machines, HOMGE workholding is built to handle daily workshop use without unnecessary complexity.
The HOMGE HY-5 Tilting Machine Vice is a 3-axis adjustable vice designed for angled machining, inspection, and fixture work where flexible positioning is required. The design allows the workpiece to be set and locked in multiple orientations, reducing the need for complex fixturing. Built from ductile iron with hardened and ground slideways, it is suited to toolroom and general machining applications.
Features:
- 3-axis adjustment allows positioning in multiple planes for angled machining
- 360 degree swivel base with graduated scale for accurate rotation setting
- Tilts 0-90 degrees from horizontal to vertical for flexible setup
- Secondary tilt plus or minus 45 degrees left and right for compound angle work
- All axes can be locked securely to maintain position under load
- High quality ductile iron (FCD55) body for rigidity and durability
- Hardened and ground slideways for wear resistance and smooth operation
- Suitable for milling, drilling, jig and fixture work, and inspection setups
- Reduces need for complex fixturing by allowing direct angle setting on the vice
