Homge HUT-300 Universal Tilting Rotary Table

TILTING ROTARY TABLE HOMGE HUT300 300mm

Indent Only Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

HOMGE manufactures precision workholding and inspection equipment built for workshop and production use. Their range includes machine vices, angle plates, sine tables, magnetic chucks and modular fixturing designed to deliver repeatable accuracy and solid clamping performance. Made in Taiwan using hardened and precision-ground components, HOMGE products are known for consistent quality, reliable alignment, and long service life in toolrooms, CNC machining, and general engineering environments. Suitable for both manual and CNC machines, HOMGE workholding is built to handle daily workshop use without unnecessary complexity.

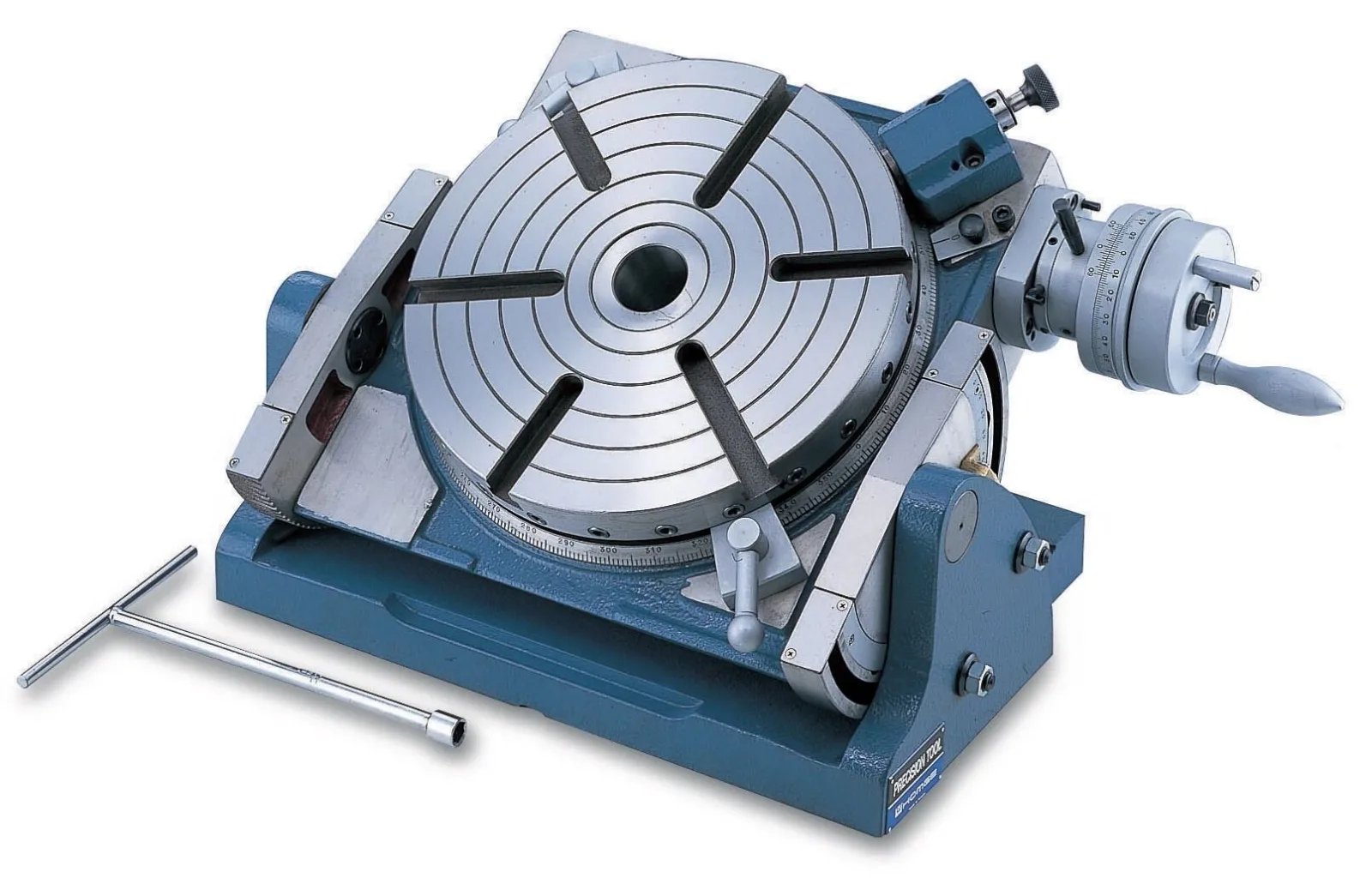

The HOMGE HUT-300 Universal Tilting Rotary Table is a manual indexing table designed for accurate angular positioning and multi-axis machining setups. It combines rotary indexing with a full tilting function, allowing components to be positioned for circular machining, angled drilling, and complex multi-face work in a single setup. The table tilts from horizontal through to vertical, giving flexibility for a wide range of machining operations without additional fixturing. A precision worm drive and clear graduated scales allow controlled, repeatable adjustment, making it suitable for toolroom and production environments where accuracy and setup efficiency are required.

Features:

  • Universal design allows horizontal, vertical, and full 0-90 degree tilting setups
  • Precision worm and gear drive with 90:1 ratio for accurate and repeatable indexing
  • Manual indexing with 24 hole positions for quick, repeatable division
  • Handwheel-controlled tilt adjustment (approx. 3 degrees per revolution) for controlled angle setting
  • Large, clearly marked graduations for easy setup of complex angles
  • Suitable for milling, drilling, boring, shaping, dividing, and circular cutting operations
  • 300mm diameter table size with MT5 centre bore for increased capacity and tooling options
  • Rigid construction for stability under machining loads
  • Can be used for angle work, bolt circles, and multi-face machining in a single setup
  • Made in Taiwan

Available on indent

Optional:

  • 3 Jaw chuck 7" , 8' or 9"
  • Dividing plate set HUT-300DP
  • Tailstock HUT-300TS

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Homge Table diameter Centre taper Gear ratio Weight
HUT-300 300mm MT5 90:1 93kg
