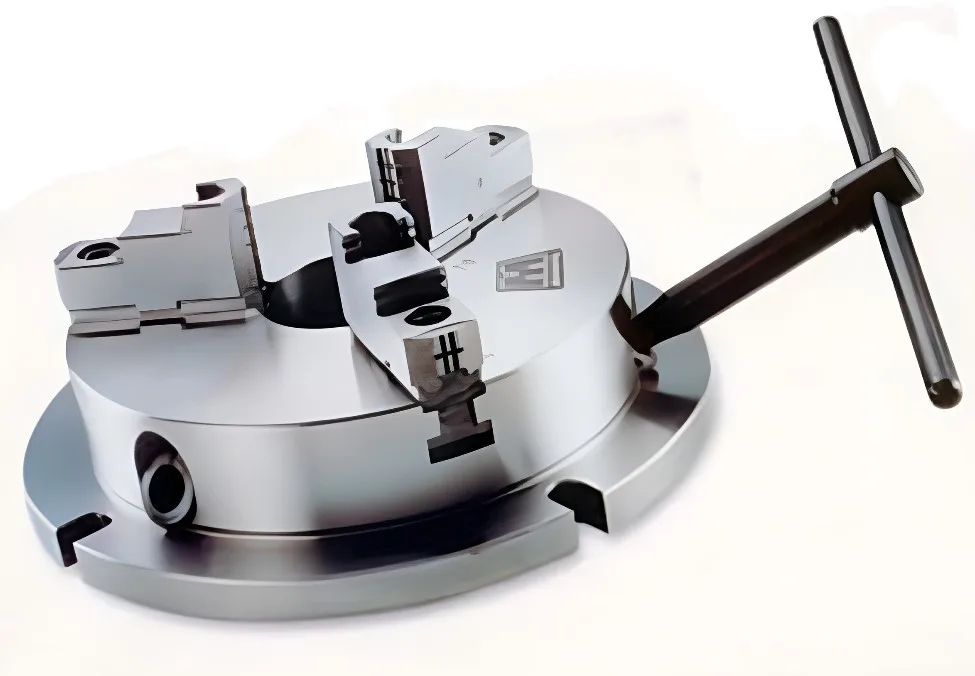

Homge Super Thin 3 Jaw Chucks
Homge logo WEB-HOMGE THIN CHUCK

Tooling, Accessories & Consumables · Workholding

Homge Super Thin 3 Jaw Chucks

Self Centering Chuck Flanged design allows easy mounting

POA Configured to suit your application. Talk to us for a price.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

HOMGE manufactures precision workholding and inspection equipment built for workshop and production use. Their range includes machine vices, angle plates, sine tables, magnetic chucks and modular fixturing designed to deliver repeatable accuracy and solid clamping performance. Made in Taiwan using hardened and precision-ground components, HOMGE products are known for consistent quality, reliable alignment, and long service life in toolrooms, CNC machining, and general engineering environments. Suitable for both manual and CNC machines, HOMGE workholding is built to handle daily workshop use without unnecessary complexity.

The Homge NBK-6 to NBK-12 Super Thin 3-Jaw Chucks are low-profile workholding chucks designed for applications where maximum table clearance and reduced setup height are required. The slim body design allows more usable Z-axis travel, making them suitable for machining thin components or setups where height is limited.

Built for CNC and precision machining environments, these chucks provide accurate centring and stable clamping while maintaining a compact footprint. Suitable for milling and rotary table applications, the NBK series offers consistent holding performance across a range of component sizes.

Features:

  • Precision-machined components for repeatable centring accuracy
  • Suitable for use on rotary tables and milling machine setups
  • Flanged design allows easy mounting
  • 45 degree key angle
  • Made in Taiwan
  • Rigid construction for stable clamping during machining
  • Available in sizes NBK-6 through NBK-12 to suit different workpiece capacities
  • Suitable for machining thin or low-profile components
  • Designed for consistent performance in toolroom and production environments

Optional:

  • Soft Jaws

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
HOMGE Chuck Diameter Flange Diameter Bore Body Depth Jaw Depth Price Excl GST
NBK-6 170mm 220mm 45mm 58mm 40mm POA
NBK-8 210mm 270mm 60mm 65mm 43mm POA
NBK-10 255mm 315mm 80mm 73mm 52mm POA
NBK-12 305mm 370mm 105mm 80mm 59mm POA
Model OD Clamping ID Clamping Weight
NBK-6 8-160mm 48-150mm 10.6kg
NBK-8 11-200mm 62-190mm 18.1kg
NBK-10 12-250mm 72-240mm 27.9kg
NBK-12 15-300mm 86-290mm 42.9kg
