Gemma Group Autocut 550 Non-ferrous automatic up cutting saw
Product overview
About this machine.
Gemma Group is a leading manufacturer of advanced machinery for processing aluminium extrusions. Renowned for their innovation, precision, and engineering excellence, Gemma designs and builds fully automated cutting, machining, handling, and packaging systems tailored to the unique demands of the aluminium extrusion industry. Their solutions are trusted by manufacturers worldwide for increasing productivity, reducing waste, and delivering consistent, high-quality results. With decades of experience and a commitment to continuous improvement, Gemma Group is a go-to partner for efficient, state-of-the-art aluminium extrusion processing.
The Gemma Autocut 550 is a high performance automatic single head saw engineered for precise, high-volume aluminium profile cutting. Powered by a 5.5 kW motor running at 2,800 rpm and fitted with a 550mm diameter widia blade, it delivers clean, burr free 90 degree cuts. The machine includes automatic bar feeding (5-660 mm range), four horizontal and three vertical pneumatic clamps, and a rigid "bridge" locking system to secure profiles tightly during operation. The cutting area uses Venturi atomised lubrication to maintain blade quality, while the operator controls everything from a 7-inch PC Windows touchscreen. Built on an electro welded steel base, this saw meets CE safety standards and includes integrated protection for operator safety
Features:
- Automatic single head machine designed for 90 degree cuts with automatic in-feeding.
- Rigid, electro welded steel base for stability and minimal vibration.

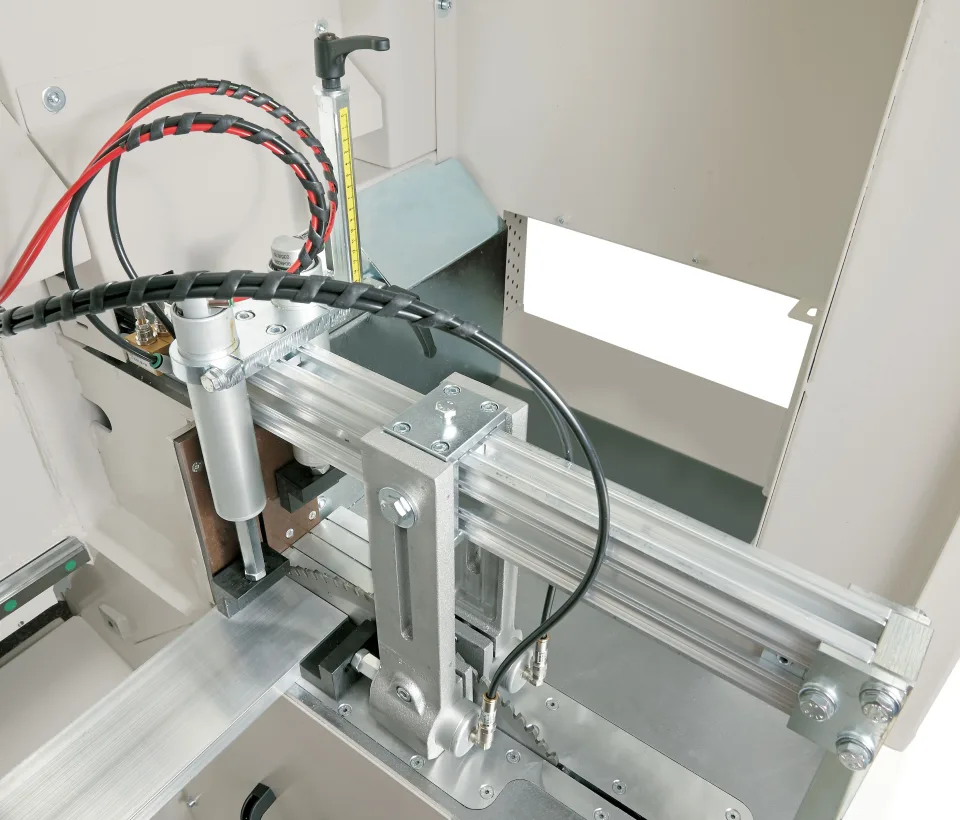

- 4 horizontal and 3 vertical pneumatic clamps plus a central support for small section profiles.
- Heavy duty "bridge" locking system ("pont" system) for profile locking to ensure secure grip during cutting.
- Motor: 5.5 kW running at 2,800 rpm, with a 550mm diameter widia (carbide) blade.
- Venturi (nebulised / mist) lubrication system to reduce blade wear and improve cut quality.
- Cutting range minimum cutting length of 5 mm, up to a maximum of 660 mm.
- Bar advancement / feed system: Brushless motors, linear guides, ground rack; includes end-bar length laser detector.

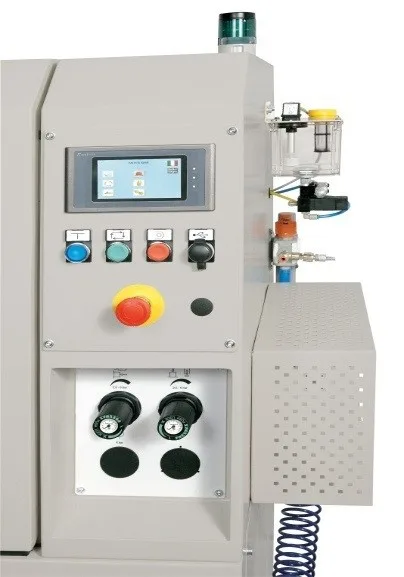

- Operator interface PC-Windows based control with a 7 inch colour touchscreen.

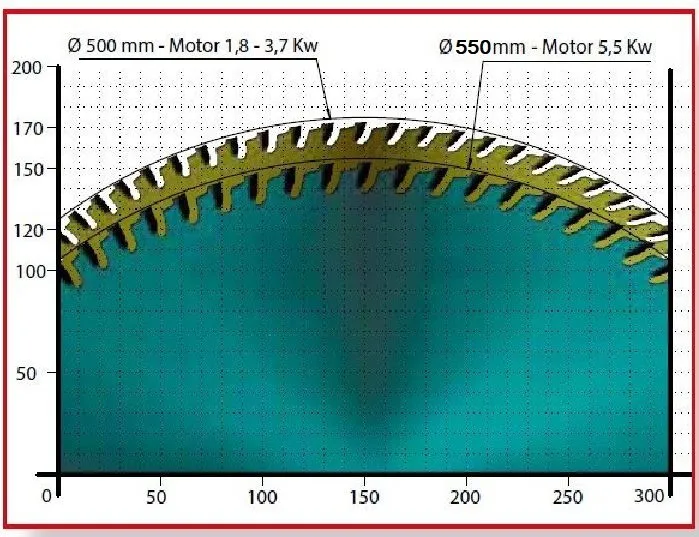

- Maximum material section: approx 160 x 160 mm (square) or 300 x 120 mm in another orientation.
- Dimensions & weight approx 1,600 x 800 x 1,650 mm, with a machine weight around 680 kg.
Standard Accessories:
- 550mm TCT blade
- Vertical and horizontal clamps
- Pneumatic spray mist lubrication
- Central support for small profiles
- Air gun / air filter
Optional Accessories:
- Spare blades
- 3m infeed roller ( As shown in image )
Safety Features:
- Standard safety and protection devices compliant with EU / CE regulations.
