FALCON HPK80NC Profile Rolling Machine

NC controlled sectional Rolls Hydraulic lateral guide rolls Three driven rolls

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Falcon HPK-80NC
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Falcon has earned a reputation as a workhorse brand for heavy-duty metal forming. This includes, but is not limited to, sheet metal and plate rolling, as well as profile rolling machines. Built with robust welded steel frames and heavy-duty transmission components, Falcon machines are engineered to stand up to daily industrial use under the most demanding conditions. The brand blends European design sophistication with practical functionality, and many machines come with options for full CNC, NC/multi-mode automation, digital readouts, and hydraulic control systems as well as the more simple manually controlled options. Falcon machines are designed for serious performance, whether you're rolling sheet, plate, angle, channel, or pipe; working with flats, solids, or complex profiles, Falcon offers solid and reliable solutions for your rolling needs. With premium hydraulic and electric components from top-tier suppliers, Falcon delivers both power and finesse.

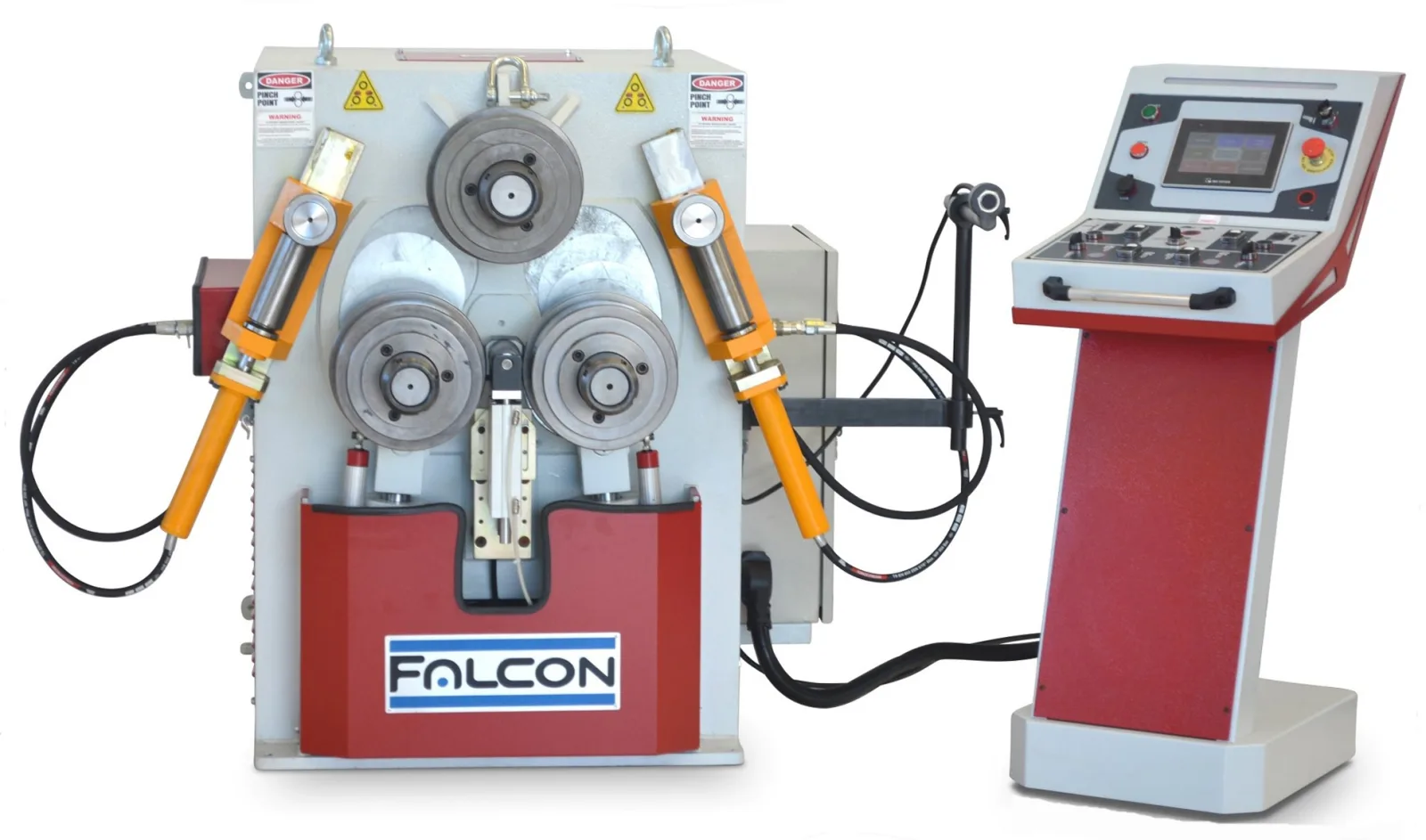

The FALCON HPK80NC Motorized Profile Rolling Machine is a robust and versatile solution for precision metal bending tasks utilizing twin hydraulically positioned bottom rolls. Engineered for both horizontal and vertical operations, this hydraulically operated, European-made machine is designed to handle a variety of profiles with efficiency and accuracy, designed to bend angle iron (flange in or flange out),flat , flat on edge, pipe, RHS, solid round and square bar, I or U sections, etc. in steel or other materials. The NC controller on the HPK80 NC offers multiple modes of operation: manual, semi-automatic, and automatic. This flexibility allows operators to choose the most suitable mode for their specific bending tasks. The controller can store up to 500 programs, facilitating quick setup and repeatability for various bending operations

Features:

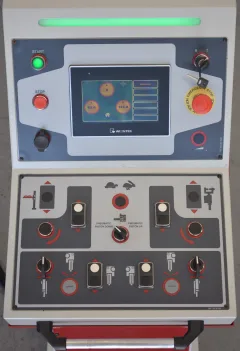

  • The NC Controller along with the mobile control panel is equipped with push-button controls and digital readouts. This interface enables precise and repeatable control over the positioning of the bottom rolls and other machine functions, c/w foot pedals.
  • Robust welded Steel Frame

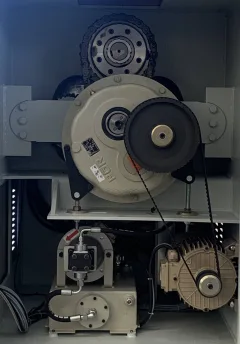

  • All three rolls are mechanically driven via an electric motor through a planetary gearbox and heavy duty gears ensuring consistent bending performance
  • The HPK80NC can operate in both horizontal and vertical orientations

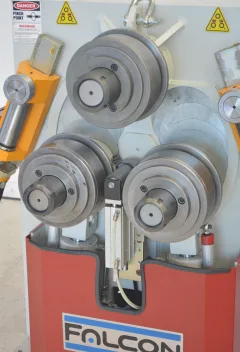

  • Hardened Standard Rolls
  • Hardened and Ground Shafts
  • Fully interactive NC screen with digital readouts for bottom roller positions and programming

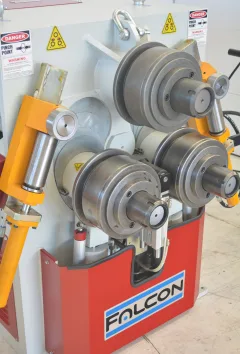

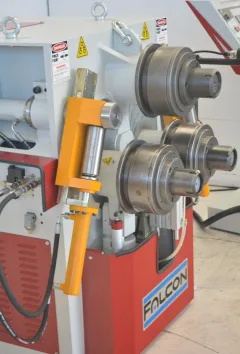

  • 3 axis Mechanical Lateral Angle Guide Rolls
  • Centralized lubrication system
  • Braked electric motor for precision bending
  • Hydraulic elements : Bosch, Rexroth or Duplomatic (Italian) components used.
  • Electric components : Siemens (German) or Telemecanique(France)
  • Built according to EC Safety Directives .(CE Mark) and ISO 9000 Certificate
  • User's Manual in English

NC Controller:

Optional Accessories:

  • Pipe / Tube bending rolls
  • Special profile bending rolls
  • Angle bending rolls
  • Special lateral angle guides

Machine Specification:

  • Top-Shaft Diameter 80mm
  • Bottom-Shafts Diameter 70mm
  • Roll Diameters 245mm
  • Working Speed 6m/min
  • Motor Power 4.75kW
  • Weight 1,700kg Dimensions 1450 x 1000 x 1400 (LxWxH)
  • Power Supply - 415V-3Ph-50Hz

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Falcon HPK-80NC
Profile Capacity Minimum diameter Required rolls
Flat bar (easy way) 100mm x 20mm 2000mm Standard rolls
30mm x 10mm 300mm Standard rolls
Flat bar (easy way) 125mm x 25mm 600mm Standard rolls
60mm x 5mm 300mm Standard rolls
Square bar (solid) 45mm x 45mm 500mm Standard rolls
15mm x 15mm 380mm Standard rolls
Round bar (solid) 50mm 500mm Special rolls required
15mm 380mm Special rolls required
Round tube 100mm x 2.5mm 1200mm Special rolls required
Round pipe 88.9mm x 5.48mm 800mm Special rolls required
RHS 80mm x 25mm x 3mm 800mm Special rolls required
25mm x 15mm x 2mm 350mm Special rolls required
SHS 70mm x 3mm 1300mm Special rolls required
25mm x 2mm 350mm Special rolls required
Angle - Flat in 70mm x 70mm x 7mm 700mm Special rolls required
30mm x 30mm x 3mm 400mm Special rolls required
Angle - Flat out 80mm x 80mm x 8mm 700mm Special rolls required
30mm x 30mm x 3mm 400mm Special rolls required
Channel - Flange out UPN 140mm 1600mm Standard rolls
UPN 120mm 900mm Standard rolls
UPN 100mm 800mm Standard rolls
I Beam - Upright IPN120mm 600mm Standard rolls
IPN 80mm 400mm Standard rolls
