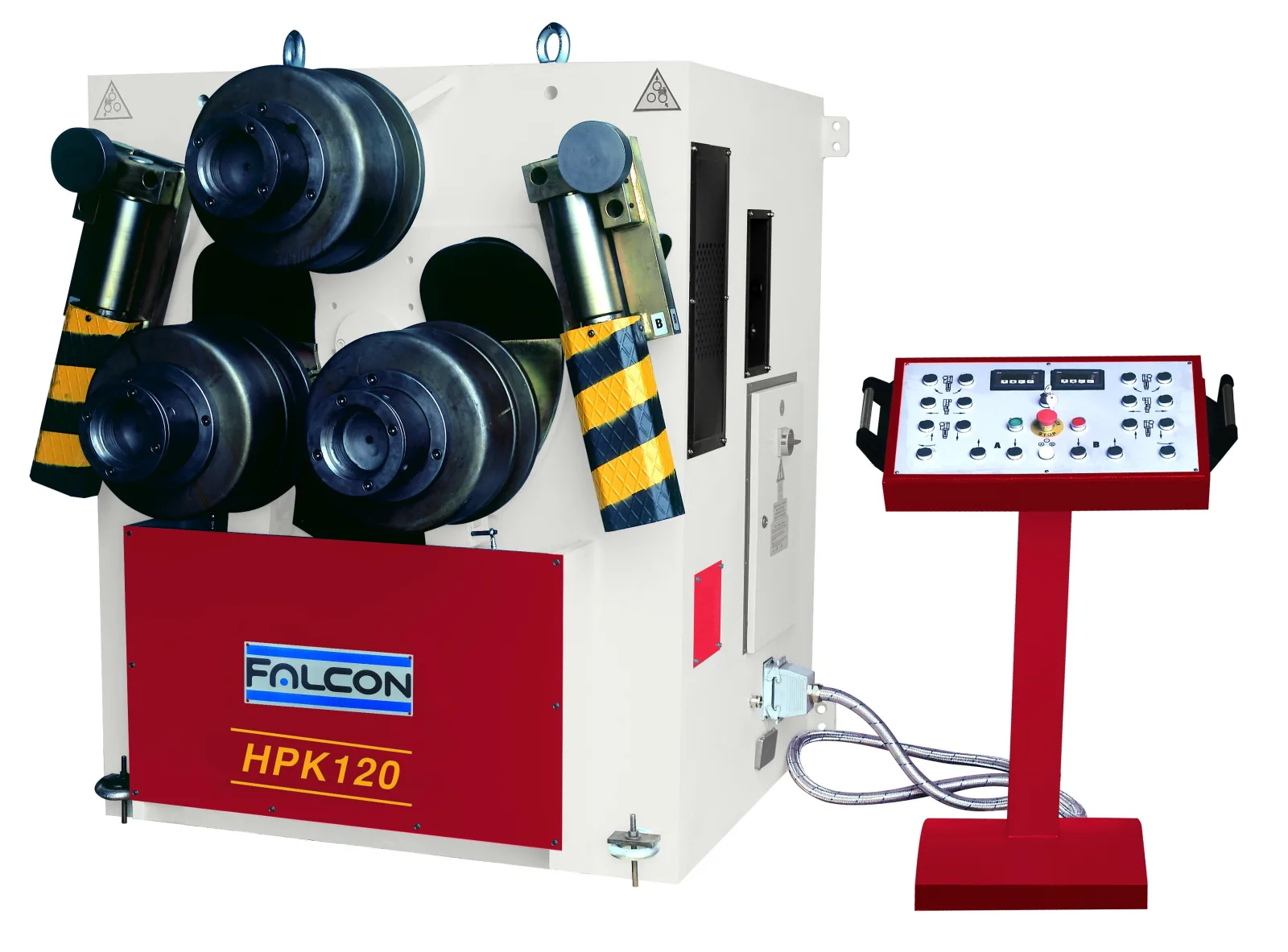

FALCON HPK Large Profile Rolling Machine Series

Name: FALCON HPK Large Profile Rolling Machine Series
Brand: FALCON
SKU: WEB-SAF DS45HV

Sectional Rolls, Hydraulic, Three driven rolls, Many models available HPK100 - HPK240

POA Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Falcon has earned a reputation as a workhorse brand for heavy-duty metal forming. This includes, but is not limited to, sheet metal and plate rolling, as well as profile rolling machines. Built with robust welded steel frames and heavy-duty transmission components, Falcon machines are engineered to stand up to daily industrial use under the most demanding conditions. The brand blends European design sophistication with practical functionality, and many machines come with options for full CNC, NC/multi-mode automation, digital readouts, and hydraulic control systems as well as the more simple manually controlled options. Falcon machines are designed for serious performance, whether you're rolling sheet, plate, angle, channel, or pipe; working with flats, solids, or complex profiles, Falcon offers solid and reliable solutions for your rolling needs. With premium hydraulic and electric components from top-tier suppliers, Falcon delivers both power and finesse.

The range of large FALCON Profile Rolling Machines are a robust and versatile solution for precision metal bending tasks. Engineered for both horizontal and vertical operations, these European-made machines are designed to handle a variety of profiles with efficiency and accuracy. Featuring optional purpose designed integrated NC Controllers which allow for manual, semi-automatic, and automatic operation modes, supporting up to 500 programmable steps for efficient and repeatable bending processes.

Standard Equipment:

Hydraulic positioning bottom rolls with digital readouts
Robust welded Steel Frame
All three rolls are mechanically driven via an electric motor through a planetary gearbox and heavy duty gears ensuring consistent bending performance
Falcon Profile rolls can operate in both horizontal and vertical orientations
Mobile Control Panel
Hardened Standard Rolls
Hardened and Ground Shafts
2 sets of Digital Read Displays for bottom rolls positions
3 axis Mechanical Lateral Angle Guide Rolls
Centralised lubrication system
Braked electric motor for precision bending
Hydraulic elements : Bosch, Rexroth or Duplomatic (Italian) components used.
Electric components : Siemens (German) or Telemecanique(France)
Built according to EC Safety Directives .(CE Mark) and ISO 9000 Certificate
User's Manual in English

Optional:

NC controller
Variable bending speed
Hydraulic lateral guide rolls
Special rolls for pipe, tube profiles and beams etc

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.

Specifications for FALCON HPK
Falcon	HPK100	HPK120	HPK160	HPK200	HPK240
Roll diameter (mm)	315	390	470	650	700
Shaft diameter/s (mm)	100	120	160	200	240
Bending speed (m/min)	7	2 & 7.5	2 & 4	1.5 & 3	1.5 & 3
Machine weight (kg)	3,800	4,770	10,000	12,000	16,000
Motor power (kW)	7.5	15	22	30	44
Type of material mm
Angle (easy way)	100x12 to 1000	120x12 to 1200	150x18 to 2200	200x20 to 3000	200x24 to 3000
Angle (hard way)	100x10 to 1000	100x10 to 1200	150x15 to 3000	200x18 to 5000	200x18 to 4000
Solid round	75 to 800	80 to 850	90 to 1800	120 to 3000	150 to 3000
Solid on edge	100x20 to 1000	125x20 to 1200	100x22 to 1000	200x50 to 3500	200x70 to 3800
Solid flat	160x35 to 800	200x50 to 1000	280x50 to 1500	350x80 to 2500	380x80 to 2500
Box section	80x80x3	90x90x15	80x80x5	120x120x8	200x200x10
Pipe	104mm to 1000	127mm to 1500	150mm to 2500	273mm to 4000	320mm to 10000
