FALCON HPK80NC Profile Rolling Machine
c/w NC control & Hyd guide rolls
Product overview
About this machine.
Falcon has earned a reputation as a workhorse brand for heavy-duty metal forming. This includes, but is not limited to, sheet metal and plate rolling, as well as profile rolling machines. Built with robust welded steel frames and heavy-duty transmission components, Falcon machines are engineered to stand up to daily industrial use under the most demanding conditions. The brand blends European design sophistication with practical functionality, and many machines come with options for full CNC, NC/multi-mode automation, digital readouts, and hydraulic control systems as well as the more simple manually controlled options. Falcon machines are designed for serious performance, whether you're rolling sheet, plate, angle, channel, or pipe; working with flats, solids, or complex profiles, Falcon offers solid and reliable solutions for your rolling needs. With premium hydraulic and electric components from top-tier suppliers, Falcon delivers both power and finesse.

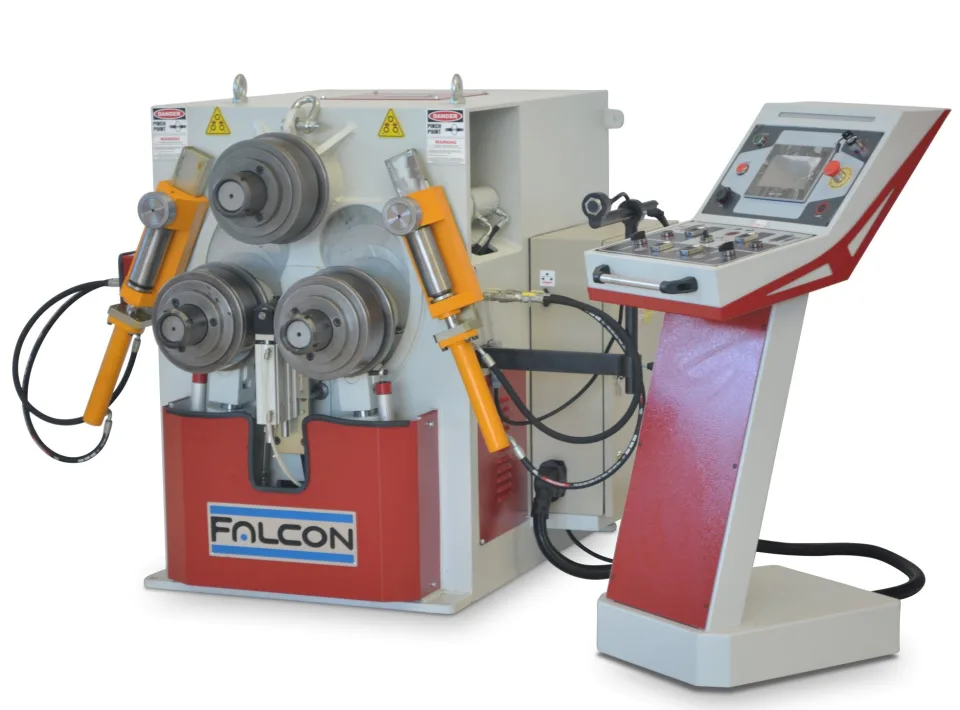

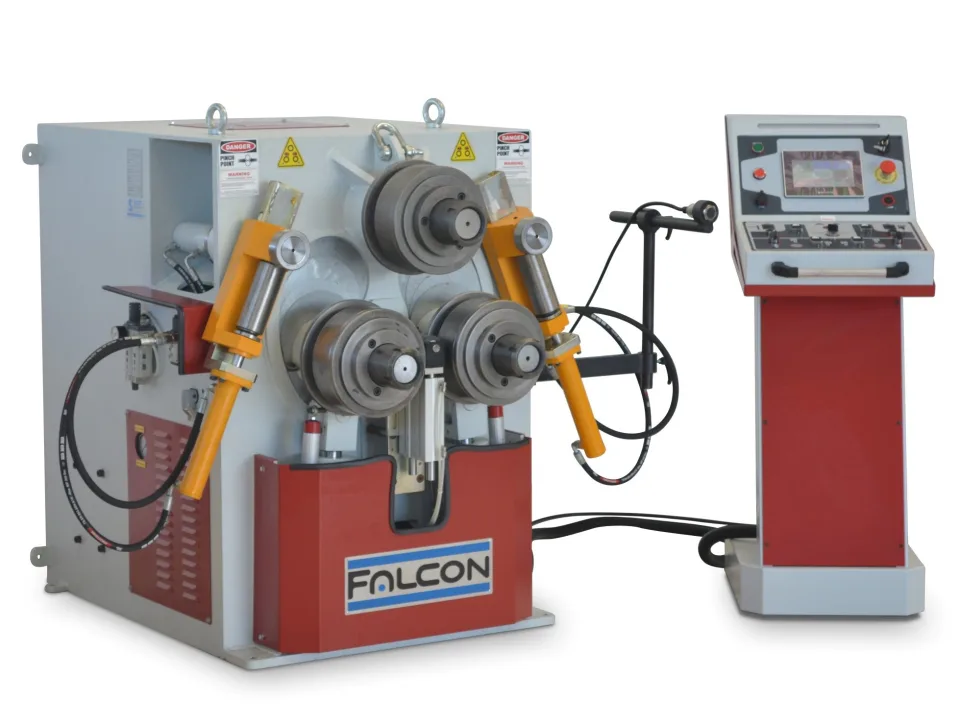

The FALCON HPK80NC Motorized Profile Rolling Machine is a robust and versatile solution for precision metal bending tasks utilizing twin hydraulically positioned bottom rolls. Engineered for both horizontal and vertical operations, this hydraulically operated, European-made machine is designed to handle a variety of profiles with efficiency and accuracy, designed to bend angle iron (flange in or flange out),flat , flat on edge, pipe, RHS, solid round and square bar, I or U sections, etc. in steel or other materials. The NC controller on the HPK80 NC offers multiple modes of operation: manual, semi-automatic, and automatic. This flexibility allows operators to choose the most suitable mode for their specific bending tasks. The controller can store up to 500 programs, facilitating quick setup and repeatability for various bending operations
Features:

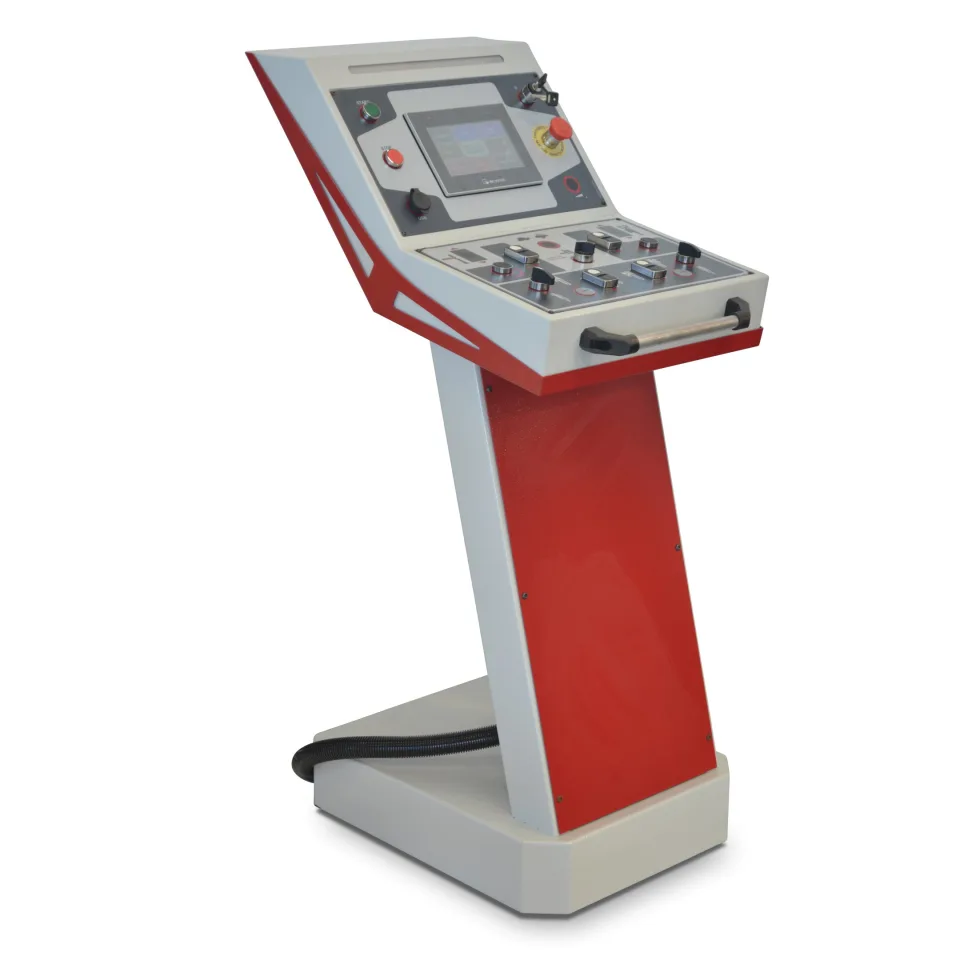

- The NC Controller along with the mobile control panel is equipped with push-button controls and digital readouts. This interface enables precise and repeatable control over the positioning of the bottom rolls and other machine functions, c/w foot pedals.
- Robust welded Steel Frame
- All three rolls are mechanically driven via an electric motor through a planetary gearbox and heavy duty gears ensuring consistent bending performance
- The HPK80NC can operate in both horizontal and vertical orientations
- Hardened Standard Rolls
- Hardened and Ground Shafts
- Fully interactive NC screen with digital readouts for bottom roller positions and programming
- 3 axis Mechanical Lateral Angle Guide Rolls
- Centralized lubrication system
- Braked electric motor for precision bending
- Hydraulic elements : Bosch, Rexroth or Duplomatic (Italian) components used.
- Electric components : Siemens (German) or Telemecanique(France)
- Built according to EC Safety Directives .(CE Mark) and ISO 9000 Certificate
- User's Manual in English

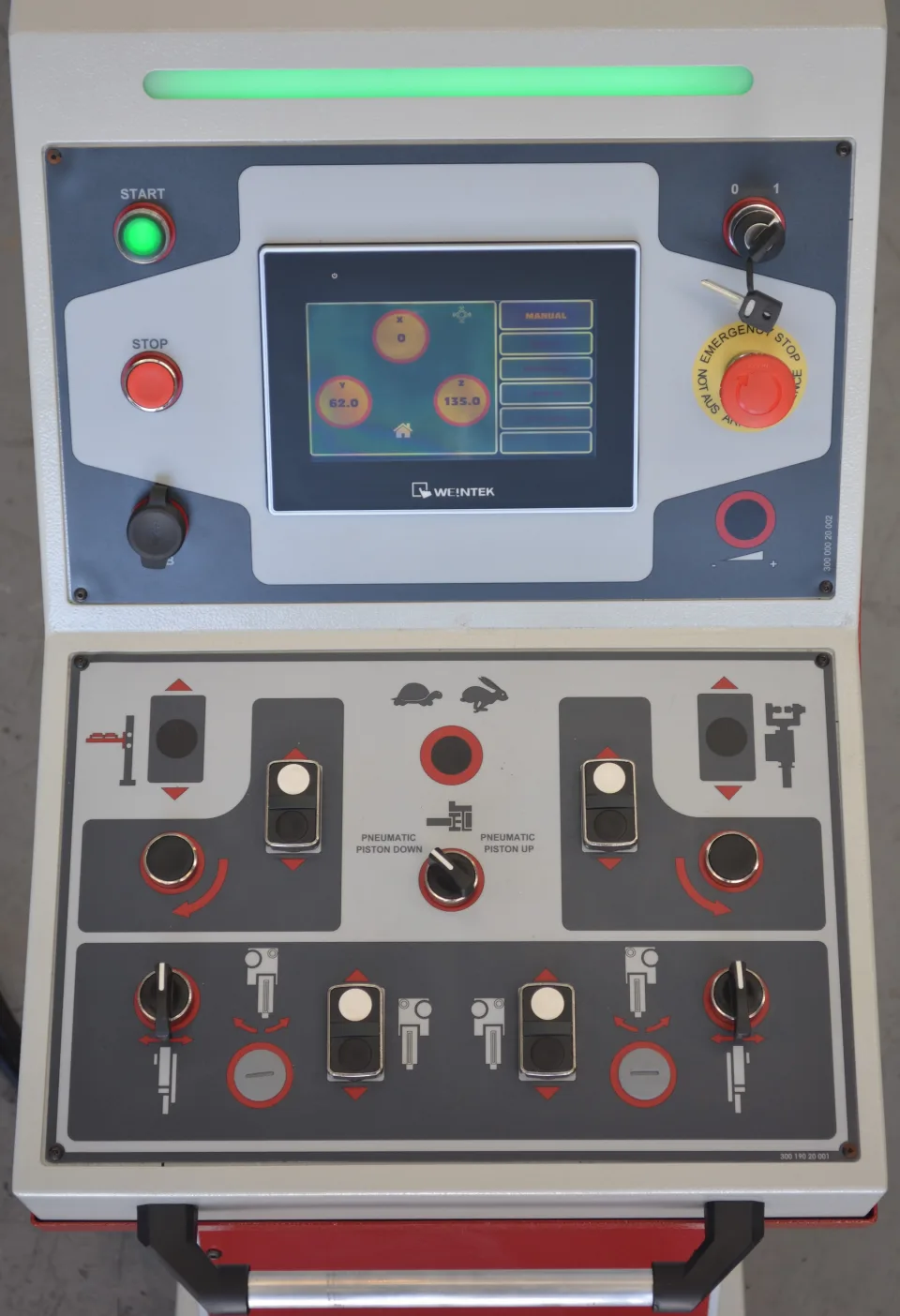

NC Controller:
Optional Accessories:
- Pipe / Tube bending rolls
- Special profile bending rolls
- Angle bending rolls
- Special lateral angle guides
Machine Specification:
- Top-Shaft Diameter 80mm
- Bottom-Shafts Diameter 70mm
- Roll Diameters 245mm
- Working Speed 6m/min
- Motor Power 4.75kW
- Weight 1,700kg Dimensions 1450 x 1000 x 1400 (LxWxH)
- Power Supply - 415V-3Ph-50Hz
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Falcon | HPK-80NC | ||
|---|---|---|---|
| Profile | Capacity | Minimum diameter | Required rolls |
| Flat bar (easy way) | 100mm x 20mm | 2000mm | Standard rolls |
| 30mm x 10mm | 300mm | Standard rolls | |
| Flat bar (easy way) | 125mm x 25mm | 600mm | Standard rolls |
| 60mm x 5mm | 300mm | Standard rolls | |
| Square bar (solid) | 45mm x 45mm | 500mm | Standard rolls |
| 15mm x 15mm | 380mm | Standard rolls | |
| Round bar (solid) | 50mm | 500mm | Special rolls required |
| 15mm | 380mm | Special rolls required | |
| Round tube | 100mm x 2.5mm | 1200mm | Special rolls required |
| Round pipe | 88.9mm x 5.48mm | 800mm | Special rolls required |
| RHS | 80mm x 25mm x 3mm | 800mm | Special rolls required |
| 25mm x 15mm x 2mm | 350mm | Special rolls required | |
| SHS | 70mm x 3mm | 1300mm | Special rolls required |
| 25mm x 2mm | 350mm | Special rolls required | |
| Angle - Flat in | 70mm x 70mm x 7mm | 700mm | Special rolls required |
| 30mm x 30mm x 3mm | 400mm | Special rolls required | |
| Angle - Flat out | 80mm x 80mm x 8mm | 700mm | Special rolls required |
| 30mm x 30mm x 3mm | 400mm | Special rolls required | |
| Channel - Flange out | UPN 140mm | 1600mm | Standard rolls |
| UPN 120mm | 900mm | Standard rolls | |
| UPN 100mm | 800mm | Standard rolls | |
| I Beam - Upright | IPN120mm | 600mm | Standard rolls |
| IPN 80mm | 400mm | Standard rolls |
