Falcon 3R HS 20-280 Hydraulic 3 roll plate rolls

PLATE ROLLS FALCON 3R HS 20-280

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Falcon has earned a reputation as a workhorse brand for heavy-duty metal forming. This includes, but is not limited to, sheet metal and plate rolling, as well as profile rolling machines. Built with robust welded steel frames and heavy-duty transmission components, Falcon machines are engineered to stand up to daily industrial use under the most demanding conditions. The brand blends European design sophistication with practical functionality, and many machines come with options for full CNC, NC/multi-mode automation, digital readouts, and hydraulic control systems as well as the more simple manually controlled options. Falcon machines are designed for serious performance, whether you're rolling sheet, plate, angle, channel, or pipe; working with flats, solids, or complex profiles, Falcon offers solid and reliable solutions for your rolling needs. With premium hydraulic and electric components from top-tier suppliers, Falcon delivers both power and finesse.

The Falcon 3R HS 20-280 hydraulic plate rolls are designed for rolling light to medium plate in general fabrication, engineering, and stainless work. The 3-roll double pinch design gives good control during prebending and rolling, while hydraulic orbital movement of the side rolls allows smooth forming of full cylinders and varying radii. Hardened SAE 1050 rolls, hydraulic drop-end, digital roll position readouts, and heavy welded construction make the machine well suited to regular workshop production work.

Standard features:

  • Suitable for medium plate applications in mild steel and stainless steel
  • Designed for rolling cylinders, ferrules, and variable radius components
  • Capable of producing full cylinders and controlled radii in general fabrication work
  • 3-roll initial pinch hydraulic design for prebending and rolling operations
  • Top roll driven by hydraulic motor coupled to planetary gearbox with overload protection
  • Two lower rolls driven via gear system for consistent traction and rolling force
  • Lateral roll movement via hydraulic pistons in orbital motion for accurate forming
  • Hydraulic balancing system maintains roll parallelism during operation
  • Hydraulic drop-end for easy and safe removal of finished cylinders
  • Independent mobile operator control panel for all machine functions
  • Two digital readouts for accurate positioning of lower rolls
  • Conical bending device with ball bearing support
  • Induction hardened SAE 1050 (CK45) forged steel rolls, heat treated and NDT inspected
  • Heavy-duty welded steel frame construction, stress relieved for stability
  • Central lubrication system for reduced wear and maintenance
  • Hydraulic components supplied by Duplomatic (Italy)
  • Main gearbox by Brevini Riduttori (Italy)
  • Electrical components by Siemens or Telemecanique
  • Electric motor supplied by Omega or WAT (Turkey)

Standard Accessories:

  • Cone Rolling attachment
  • Induction Hardened Rolls (58-60 HRC) Digital read-outs (2 pcs) Mobile Control Panel with Push buttons

Safety Features:

  • Full emergency safety system including safety rope barrier and emergency stop buttons
  • Built in accordance with EC Safety Directives (CE marked)
  • Supplied with English user manual

Pre - Bending

  • With min. inside diameter of 420mm : 12 mm
  • With min. inside diameter of 1400mm : 16 mm

Bending

  • With min. inside diameter of 420mm : 16 mm
  • With min. inside diameter of 1400mm : 18 mm

All capacities calculated for material with 260 kg/mm2 Yield Straight (ST-37/42- Mild Steel)

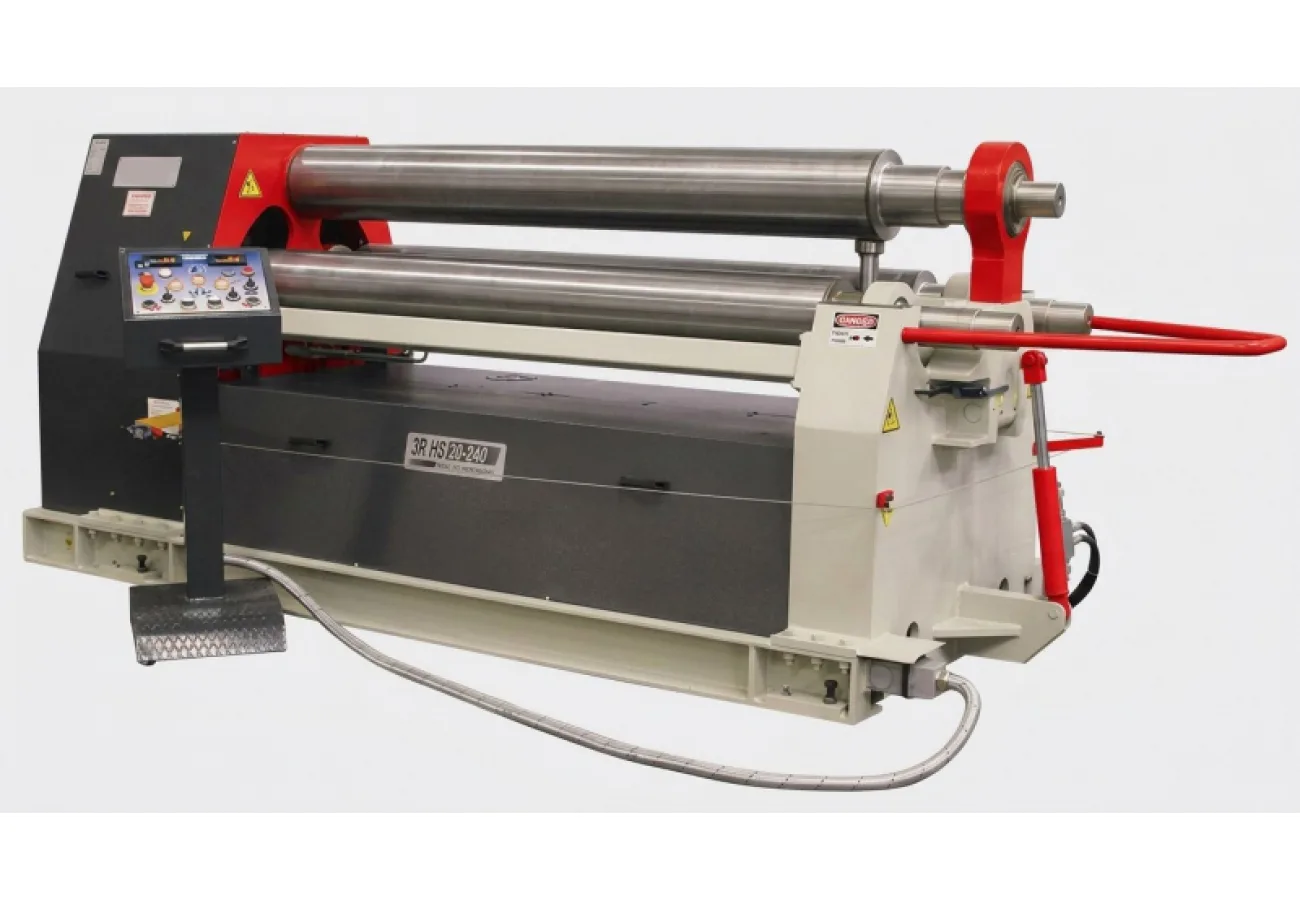

Photo shows 2m version
