FALCON 4R HS 20-260 Plate Rolls

PLATE ROLLS SAHINLER 4R HS 20-260

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

FALCON Model 4R HS 20-260
Bending length 2050mm
Bending capacity 16mm max
Pre-bending capacity 10mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Falcon has earned a reputation as a workhorse brand for heavy-duty metal forming. This includes, but is not limited to, sheet metal and plate rolling, as well as profile rolling machines. Built with robust welded steel frames and heavy-duty transmission components, Falcon machines are engineered to stand up to daily industrial use under the most demanding conditions. The brand blends European design sophistication with practical functionality, and many machines come with options for full CNC, NC/multi-mode automation, digital readouts, and hydraulic control systems as well as the more simple manually controlled options. Falcon machines are designed for serious performance, whether you're rolling sheet, plate, angle, channel, or pipe; working with flats, solids, or complex profiles, Falcon offers solid and reliable solutions for your rolling needs. With premium hydraulic and electric components from top-tier suppliers, Falcon delivers both power and finesse.

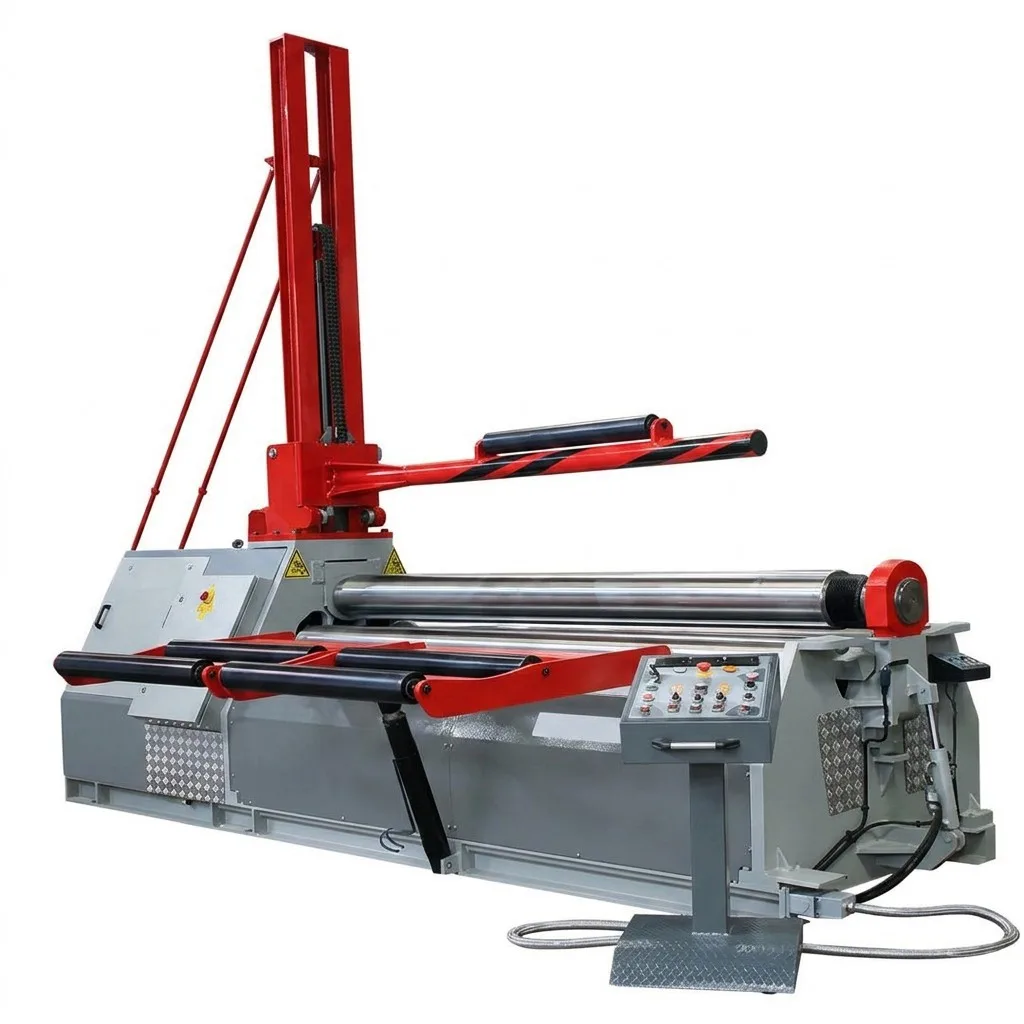

The Falcon 4R HS 20-260 hydraulic plate rolls are designed for accurate rolling and prebending of medium plate and stainless steel work up to 2050 mm wide. The 4-roll design allows full cylinder rolling and efficient prebending in a single pass, improving accuracy and reducing handling time. Hydraulic orbital side roll movement, hardened SAE 1050 rolls, hydraulic drop-end, and digital roll positioning make the machine well suited to fabrication shops producing tanks, cones, ducting, and general rolled components.

Standard features:

  • Suitable for light and medium plate in aluminium, stainless steel, and mild steel across a range of diameters
  • 4-roll hydraulic system designed for prebending and full rolling in a single pass
  • Bottom roll hydraulically adjustable (up/down) for accurate pinching control
  • Two lateral rolls with hydraulic orbital movement and double pinch action for consistent forming
  • Hydraulic balancing system maintains roll parallelism for high accuracy and repeatable production
  • Top roll driven by hydraulic motor and planetary gearbox with integrated overload protection
  • Bottom and lateral rolls are idle (free-running) with controlled hydraulic positioning via pistons
  • 2-speed working system controlled from mobile operator panel for improved cycle control
  • Independent mobile control panel (MCP) for all machine operations
  • Three digital readouts for precise roll positioning
  • Hydraulic drop-end for easy removal of finished cylinders
  • Conical bending device fitted as standard
  • Central lubrication system
  • Heavy-duty welded steel frame construction, stress relieved for stability
  • Induction hardened SAE 1050 (CK45) forged steel rolls, heat treated and NDT tested
  • Hydraulic power unit fitted with quality European components (Duplomatic or equivalent)
  • Gear reducers by Brevini or Comer
  • Siemens or Telemecanique electrical components
  • Full emergency safety system including safety rope barrier and emergency stop buttons
  • CE marked and built to EC Safety Directives with ISO 9000 compliance
  • Supplied with user manual in English

Standard accessories:

  • Cone Rolling attachment
  • Central Lubrication System
  • Two speed working system
  • Digital read-outs
  • Induction Hardened Rolls

Optional accessories:

  • Hydraulic Overhead Crane (Lift)
  • Hyd. Lateral Side Suport (1 pcs on 1 side)
  • 4 Axis NC Controller Panel 7" Touch Screen
  • CNC Control Panel - ESA / GV / Italy

Pre Bending

  • With min. inside diameter of 390mm : mm 10 (1.5 x Top Roll Dia)
  • With min. inside diameter of 1300mm : mm 13 (5 x Top Roll Dia)

Bending

  • With min. inside diameter of 390mm : mm 13 (1.5 x Top Roll Dia)
  • With min. inside diameter of 1300mm : mm 16 (5 x Top Roll Dia)

Bending capacities are calculated based on 260 N/mm2 Yield Strength (ST37-ST42 Mild Steel Plates)

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
FALCON Model 4R HS 20-260
Bending length 2050mm
Bending capacity 16mm max
Pre-bending capacity 10mm
Roll diameters Centre 260mm, side rolls 200mm
Minimum rolling diameter 390mm
Oil capacity 50 - 100 litres (Estimate)
Weight 6100kg
Dimensions (L x W x H) 4300 x 1460 x 1550
