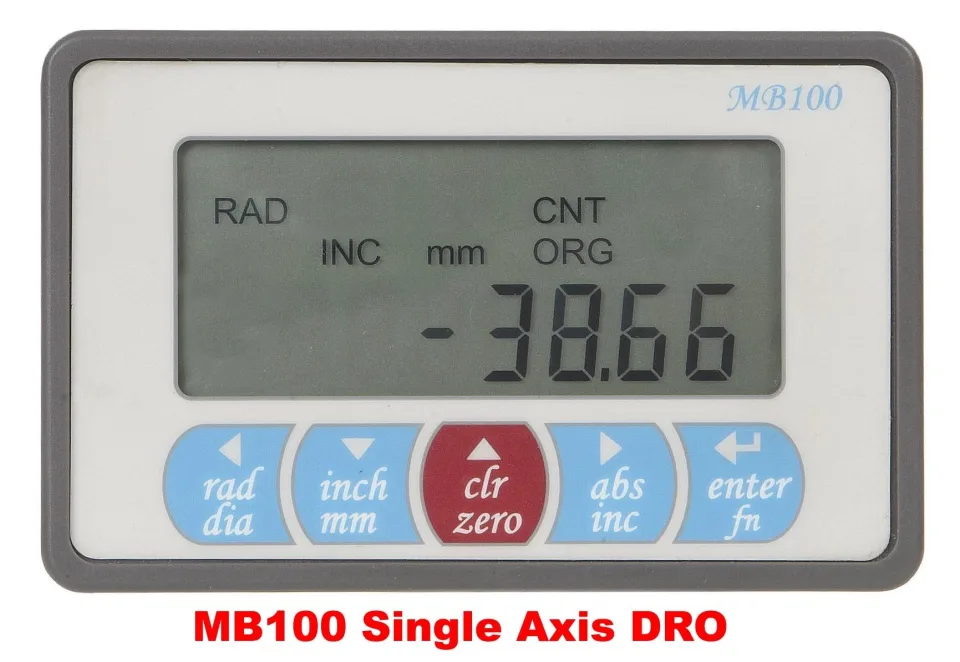

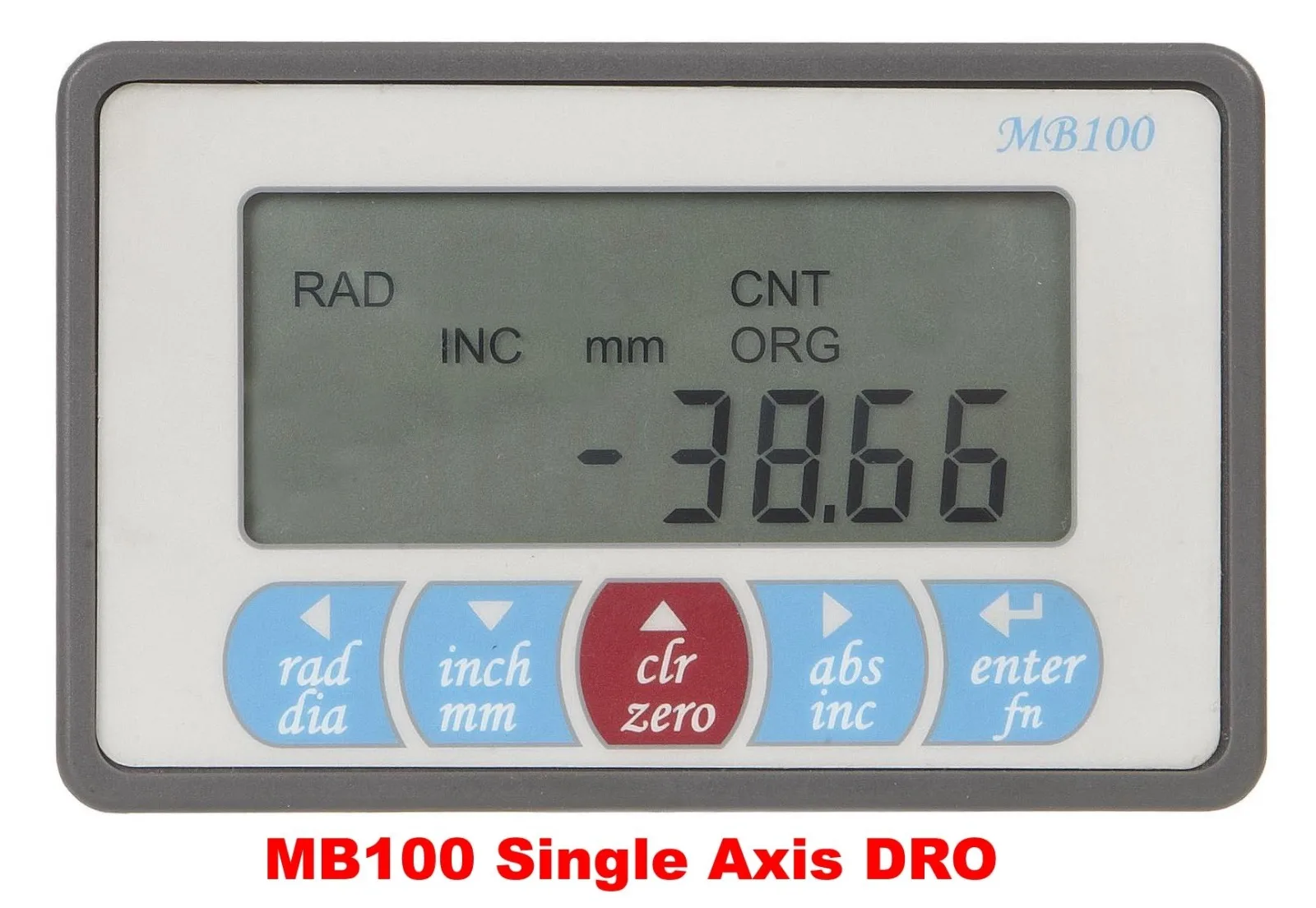

Electronica MB100 1 Axis Digital Readout Display

Dedicated 1-Axis DRO with LCD display

POA Configured to suit your application. Talk to us for a price.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Feature MB100
No. of Axis 1
Display Custom LCD
Case Aluminium
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The MB100 is a battery powered DRO with miniature integrated sensor that can be used for many applications where only a single axis display is required. The fully sealed miniature reader-head is rated to IP67 and as such can work in the harshest of conditions.

The MB100 comes with a mounting bracket but can also be panel mounted. A fully guided version is also available providing instant measurement up to 10m in length. An ideal replacement for a steel rule when higher accuracy is required.

Dedicated 1-Axis DRO with LCD display

  • Integrated IP67 miniature sensor (2m lead).
  • Battery operated - no mains power required
  • Guided option
  • Linear or Angular display
  • Can be panel mounted

Membrane keypad

  • Latest Surface Mount manufactured design
  • Fits all models and makes of milling machines
  • Quality International manufacturer
  • Ideal for retrofit.
  • Manufactured to ISO 9001:2000

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Feature MB100
No. of Axis 1
Display Custom LCD
Case Aluminium
Power 2 x AA battery
Battery Life > 1 year (typical)
Operating temerature 0 - 50 degree
Reader head dimensions 20 x 15 x 10mm
DRO dimensions 102 x 65 x 48.5mm
Panel cutout 96.5 x 59.5mm
Keyboard type Wipe clean membrane
Feature MB100
Measuring range +/- 9.99m
Linear/Angular compensation Standard
Absolute/Incremental Modes Standard
Angular resolution 1.0deg or 0.1deg
Linear resolution 0.01mm or 0.1mm
Inch/mm conversion Linear mode only
Radius/Diameter toggle Linear mode only
