Electronica EL400 Series Displays
2, 3 or 4 axis options Optical, magnetic and inductive encoder systems.
POA
Configured to suit your application. Talk to us for a price.
NZ Prepared, installed and supported nationwide by Scott Machinery.
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.

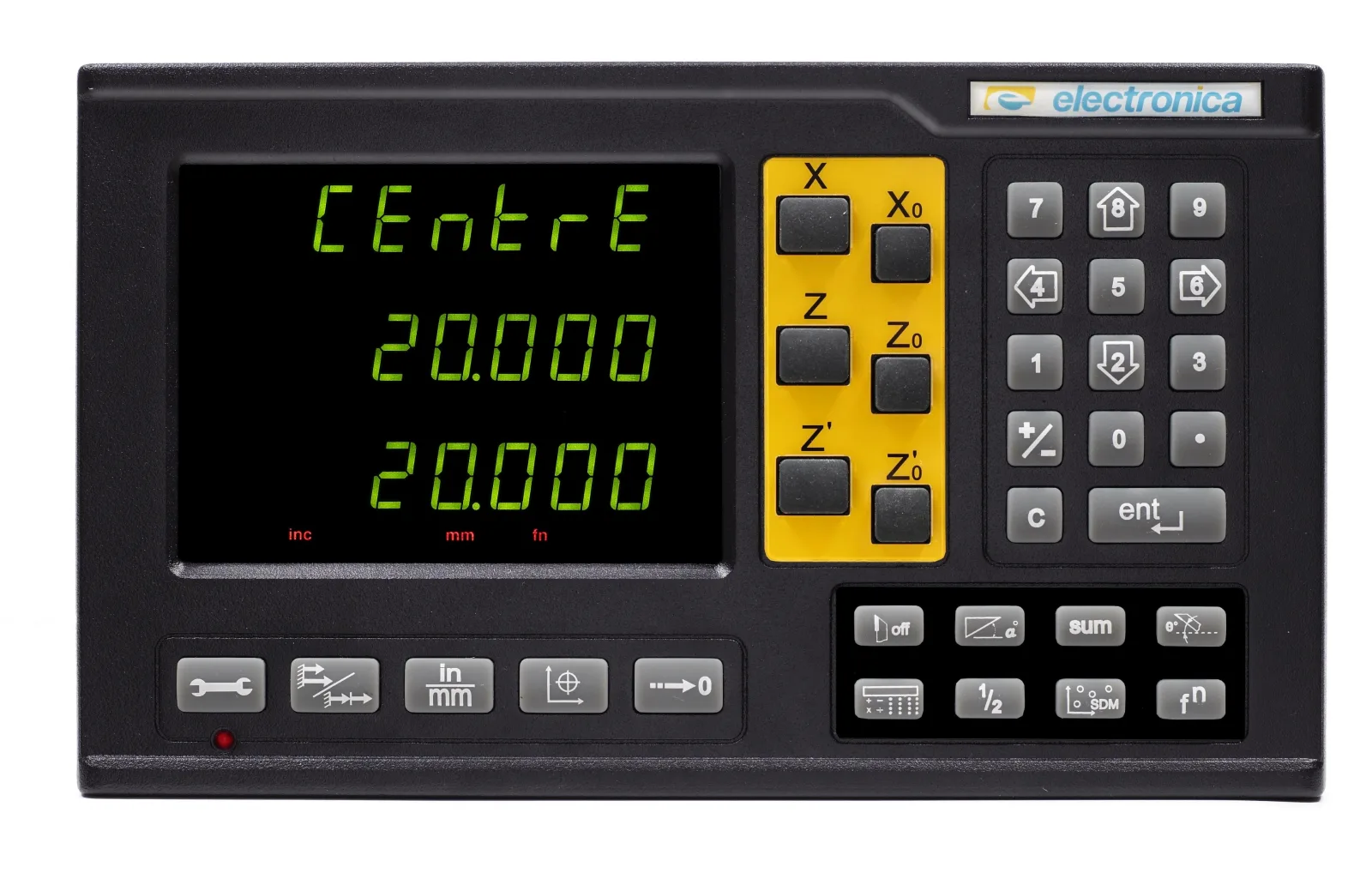

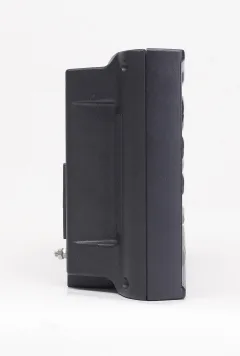

The EL400 Digital readout is ideal for first fit and retrofit applications. The rugged die-cast housing is complemented by a tactile keypad designed to keep those functions most needed at the fingertips of the operator. The DRO includes dedicated one-touch axis zero keys and a bright, clear, LED display with wide viewing angle that can be viewed in all light conditions.

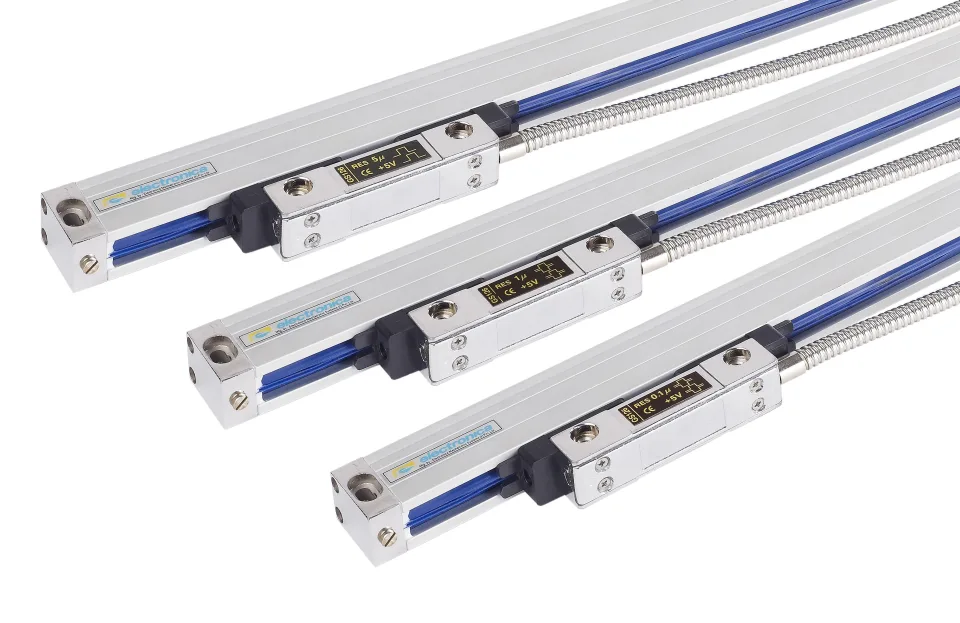

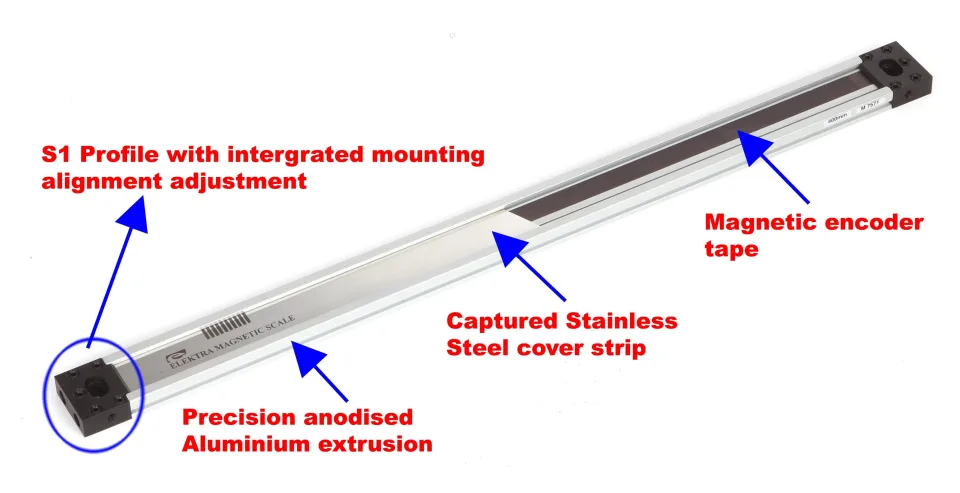

Multiple encoder interface options are available to work with a wide variety of encoders including optical, magnetic and inductive encoder systems.
The 4-axes Mill versions allow for the internal summing of both Knee and Quill axes without the need for expensive additional external electronics.
Machine type specific. Mill, Lathe or EDM
- 4 axis version for mills with internal summing for knee and quill*
- Probe interface included as standard
- Programmable machine default settings
- Clear wide-viewing angle display
- Quality international manufacture
Ideal replacement for retrofit. Mulitple encoder interface options available
- IP67 magnetic encoders or optical encoders

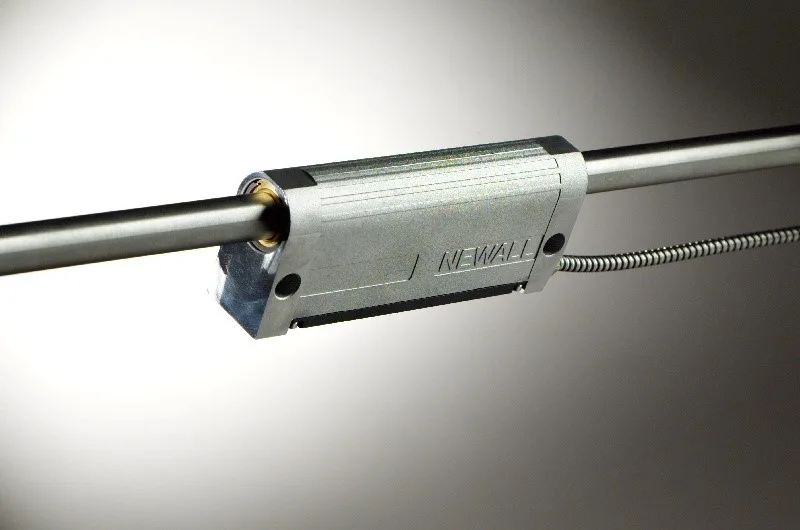

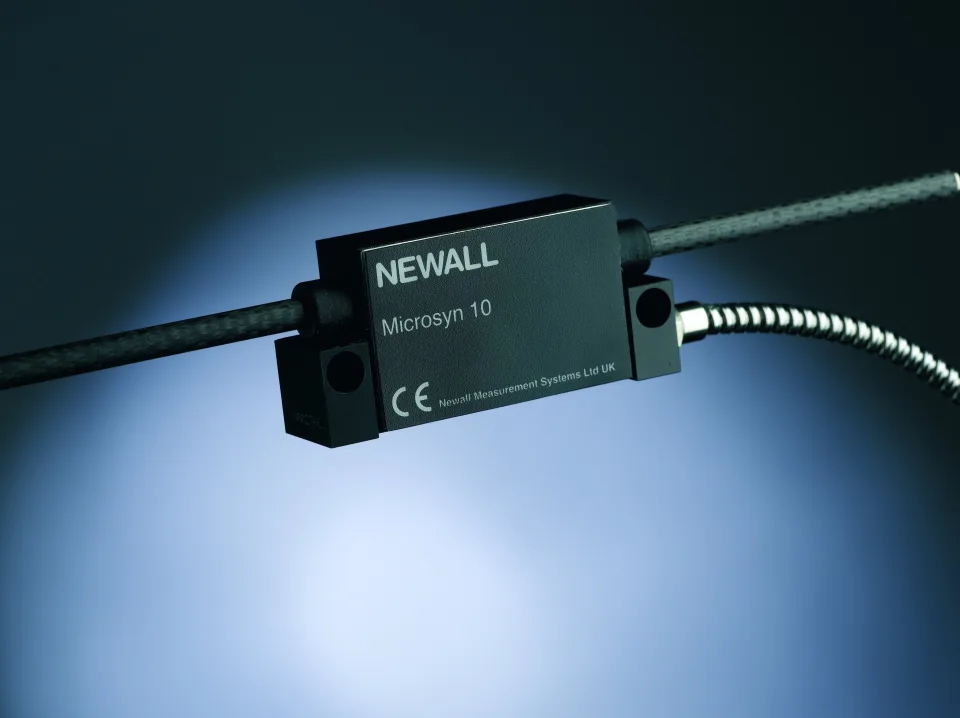

- Enductive encoder option (Newall)
- Manufactured to ISO 9001:2000
*4-axes encoder input, 3-axes display
Note:
- We generally stock a range of magnetic linear scales from 170mm - 3000mm travels.
- For an accurate quote please measure each axis travel, not overall length.
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Feature | Mill | Lathe | Simple | EDM |
|---|---|---|---|---|
| No. Axes | 2, 3, 4 | 2, 3 | 2, 3 | 2 |
| Display | 7 LED | 7 LED | 7 LED | 7 LED |
| USB Service | STD | STD | STD | STD |
| Auxiliary Port | Optional | Optional | STD | |
| Feature | Mill | Lathe | Simple | EDM |
| Half Funtion | STD | STD | STD | STD |
| Axis Home Reference | STD | STD | STD | STD |
| Machine Reference | STD | STD | STD | STD |
| One-touch axis zero | STD | STD | STD | STD |
| Linear Error Compensation | STD | STD | STD | STD |
| Segmented Compensation | STD | STD | STD | STD |
| Sub Datums | STD | STD | STD | |
| Tool Offsets | STD | |||
| Bolt-Hole-Circle (PCD) | STD | STD | ||
| Arc Bolt Hole | STD | STD | ||
| Arc Contouring | STD | STD | ||
| Grid Hole Funtion | STD | STD | ||
| Taper Calculator | STD | |||
| Internal Axis Summing | STD | STD | ||
| Vectoring Funtion | STD | |||
| Line Hole Funtion | STD | STD | ||
| Calculator (Trigonometric) | STD | STD | ||
| Pre-set Depth | STD | |||
| Encoder Fail Detect | STD | STD | STD | STD |
| Memory Backup | STD | STD | STD | STD |
