Electronica MB100 1 Axis Digital Readout Display
POA
WEB-ELECTRONICA-MB100 | Prices exclude GST
Product overview
About this machine.
The MB100 is a battery powered DRO with miniature integrated sensor that can be used for many applications where only a single axis display is required. The fully sealed miniature reader-head is rated to IP67 and as such can work in the harshest of conditions.

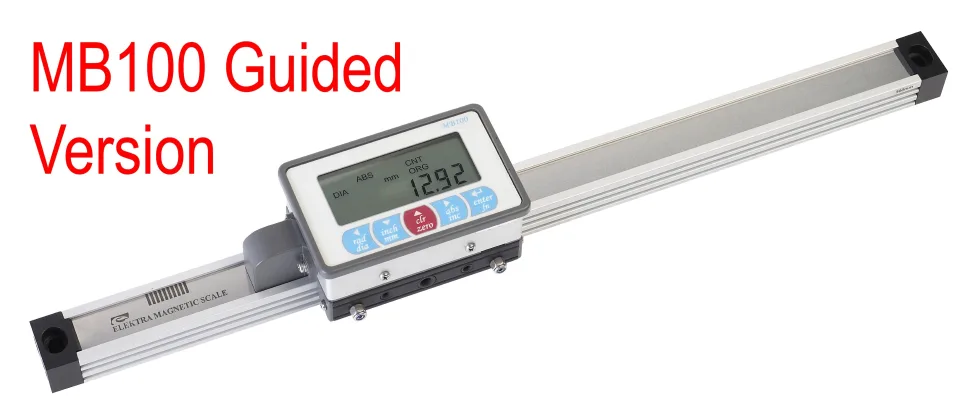

The MB100 comes with a mounting bracket but can also be panel mounted. A fully guided version is also available providing instant measurement up to 10m in length. An ideal replacement for a steel rule when higher accuracy is required.
Dedicated 1-Axis DRO with LCD display
- Integrated IP67 miniature sensor (2m lead).
- Battery operated - no mains power required
- Guided option
- Linear or Angular display
- Can be panel mounted
Membrane keypad
- Latest Surface Mount manufactured design
- Fits all models and makes of milling machines
- Quality International manufacturer
- Ideal for retrofit.
- Manufactured to ISO 9001:2000
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Feature
MB100
No. of Axis
1
Display
Custom LCD
Case
Aluminium
Power
2 x AA battery
Battery Life
> 1 year (typical)
Operating temerature
0 - 50 degree
Reader head dimensions
20 x 15 x 10mm
DRO dimensions
102 x 65 x 48.5mm
Panel cutout
96.5 x 59.5mm
Keyboard type
Wipe clean membrane
Feature
MB100
Measuring range
+/- 9.99m
Linear/Angular compensation
Standard
Absolute/Incremental Modes
Standard
Angular resolution
1.0deg or 0.1deg
Linear resolution
0.01mm or 0.1mm
Inch/mm conversion
Linear mode only
Radius/Diameter toggle
Linear mode only
