Electronica Magna S1 & S2 Encoder Systems
Mounted magnetic encoder technology
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
The Magna encoder systems come in two basic profiles known as S1 & S2.

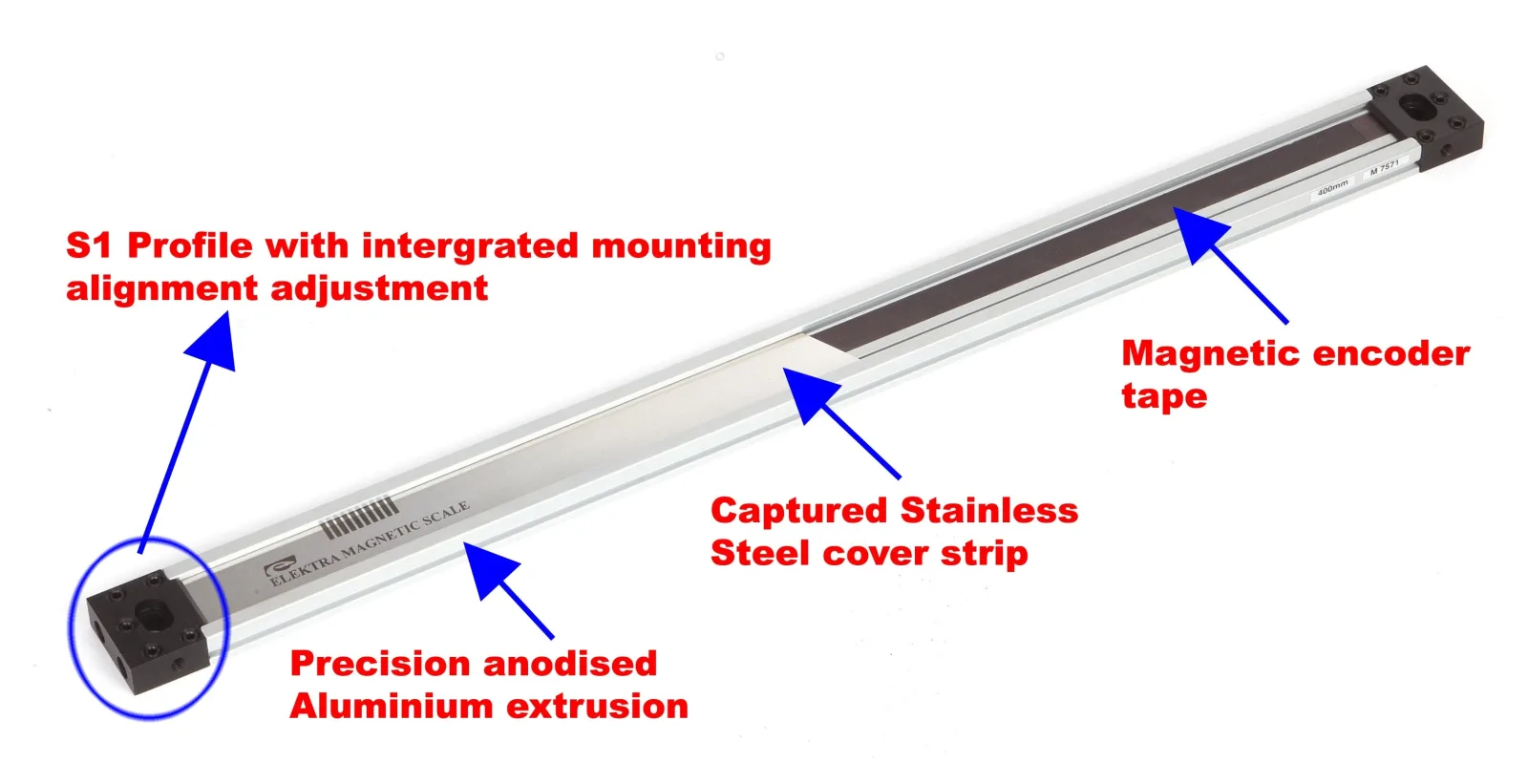

The S1 profile is a single depth extrusion designed for applications where a tape only solution is not suitable due to an uneven or non-continuous mounting surface.
The S2 profile is a double depth extrusion offering significant support over longer lengths or where a fully guided reader-head system is required. The S2 system is also available in a modular form for lengths of up to 30m which can be fully guided where required.
Each scale is supplied complete with mounting brackets and scale covers.
Mounted magnetic encoder technology
- IP67 high shock and vibration rated sensor.
- Simple to install
- Lengths from 100mm to 30000mm
- Non-contact system
- High operating speeds of up to 10m/s
High reliability
- High tolerance to shock and vibration
- Low profile.
- Low over-travel (78mm)
- OEM customisation available
- Manufactured to ISO 9001:2000
