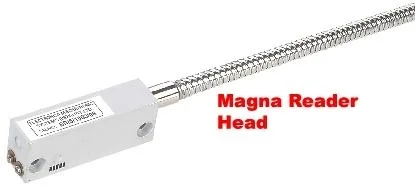

Electronica Magna S1 & S2 Encoder Systems
POA
WEB-ELECTRONICA-MAGNA | Prices exclude GST
Product overview
About this machine.
The Magna encoder systems come in two basic profiles known as S1 & S2.

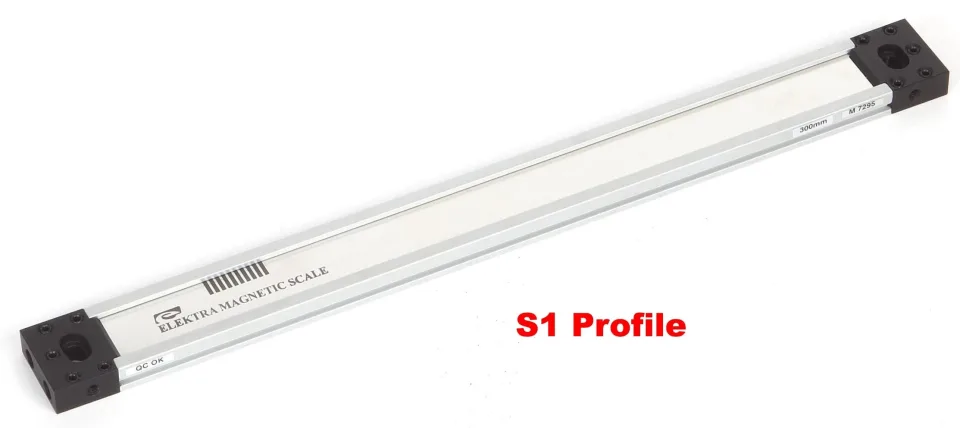

The S1 profile is a single depth extrusion designed for applications where a tape only solution is not suitable due to an uneven or non-continuous mounting surface.

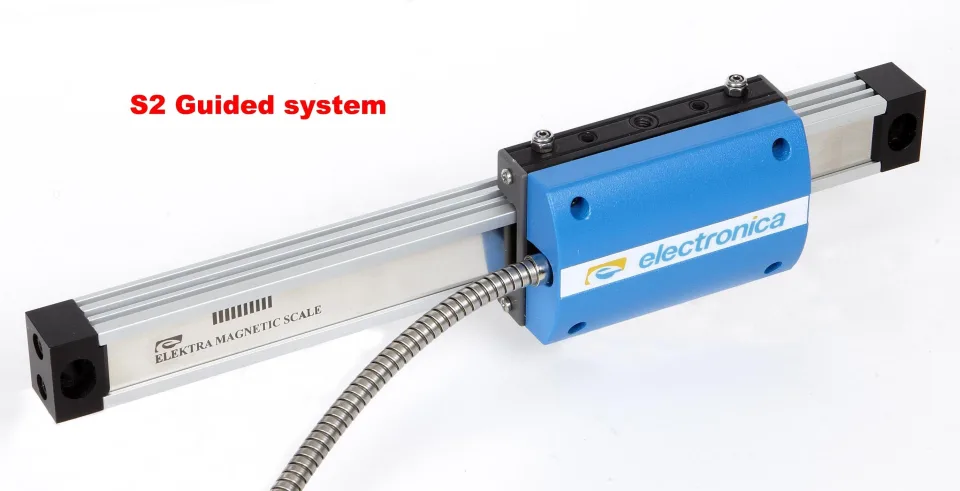

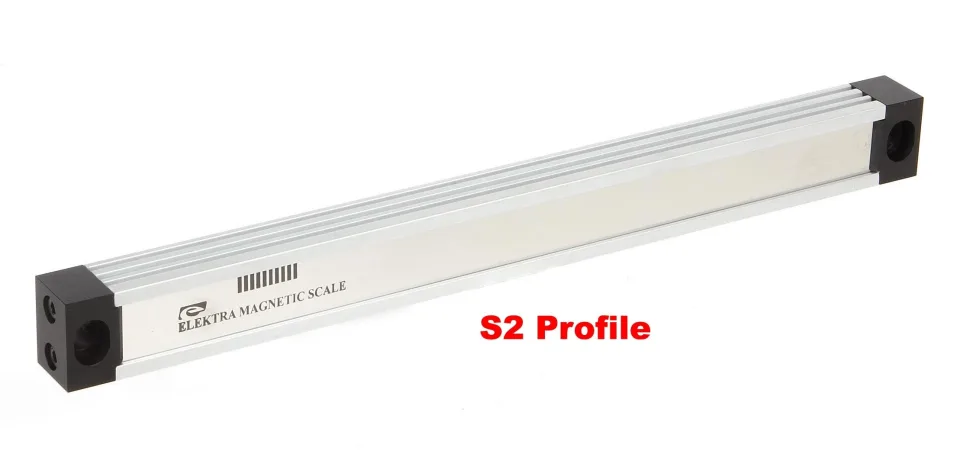

The S2 profile is a double depth extrusion offering significant support over longer lengths or where a fully guided reader-head system is required. The S2 system is also available in a modular form for lengths of up to 30m which can be fully guided where required.
Each scale is supplied complete with mounting brackets and scale covers.
Mounted magnetic encoder technology
- IP67 high shock and vibration rated sensor.
- Simple to install
- Lengths from 100mm to 30000mm
- Non-contact system
- High operating speeds of up to 10m/s
High reliability
- High tolerance to shock and vibration
- Low profile.
- Low over-travel (78mm)
- OEM customisation available
- Manufactured to ISO 9001:2000
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Mechanical
Specification
Technology
Magna (Magnetic)
Power
+5V DC (+/-5%)
Current consumtion
150mA (typical)
Output signal
RS422 (TTL)
IP protection class
IP67
Operating temerature
0 - 50 degree
Max cable length
20m
Cable type
Armoured
Performance
Specification
Resolution
1, 5, & 10 micron options
Accuracy
+/-10 micron (+/-5 micron optional)
Repeat accuracy
1 resolution count
Referance mark
Periodic (50mm spacing)
Operating speed (un-guided)
10m/s (max)
Operating speed (guided)
1m/s (max)
S1 Length (travel)
Upto 1,000mm
S2 Length (travel)
Upto 30,000mm
S2 Guided Length (travel)
Upto 30,000mm
