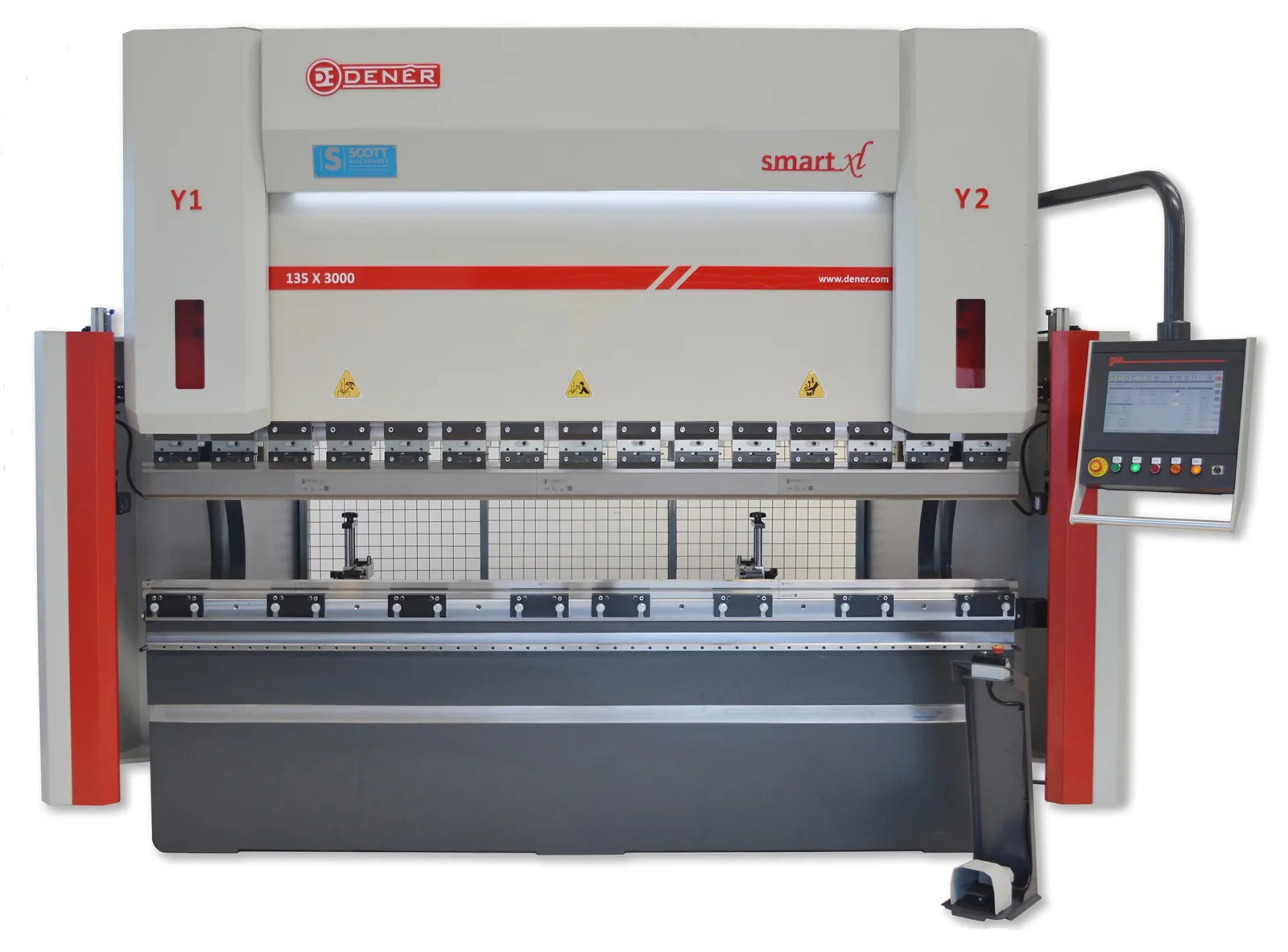

Dener CNC Smart XL 135-30 Hydraulic Pressbrake

Quality Turkish 135 Ton x 3020mm CNC Press Brake Multi-axis CNC control Y1, Y2, X

$93,500.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model CNC Smart XL 3020x135
Capacity 135 ton x 3.02m
Pressing force 13350kN
Bending length 3020mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Introduction: DENER MAKINA was established in 1974 in Kayseri/TURKEY and is a manufacturer of NC and CNC Hydraulic Pressbrakes, NC Swingbeam and CNC Rake Angle Shears, Plasma Cutters, Corner Notchers and Folding Machines.

Since the very first beginning, DENER has had the philosophy of the production with best quality and high technology with ISO 9001 Quality Control Management System and European Safety Standards.

DENER MAKINA is one of the leading Turkish Brands in Sheetmetal Working Machinery with a large 18,000 m2 factory with skilled and qualified workers, and today DENER Machines are sold all over the world through their dealer network.

Many length & tonnage configurations available - Contact us to discuss your bending requirements

Standard features:

  • ESA 630 CNC control with 2D graphical touch screen
  • Multi axis control - Y1, Y2, X
  • Manual R axis adjustment (back gauge vertical)

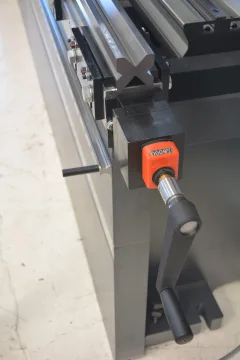

  • Manual crowning
  • Sliding front support arms
  • DSP Laser guarding
  • CE conformity

Eurostamp Tooling

  • 1281 segmented top tool T/M=100
  • 2067 multi vee bottom block (16, 22, 35 & 50mm vee) T/M=80

Machine video

See Dener CNC Smart XL 135-30 in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model CNC Smart XL 3020x135
Capacity 135 ton x 3.02m
Pressing force 13350kN
Bending length 3020mm
Distance between frames 2555mm
Y axis stroke 320mm
Daylight opening 550mm
Throat depth 450mm
Back gauge stroke (X axis) 650mm
Approach speed 160mm/sec
Bending speed 10mm/sec
Return speed 140mm/sec
Volume of oil tank 190L
Motor power 15kW
Machine dimensions (L x W x H) 3800 x 2400 x 2950mm
Weight (approx) 9250kg
