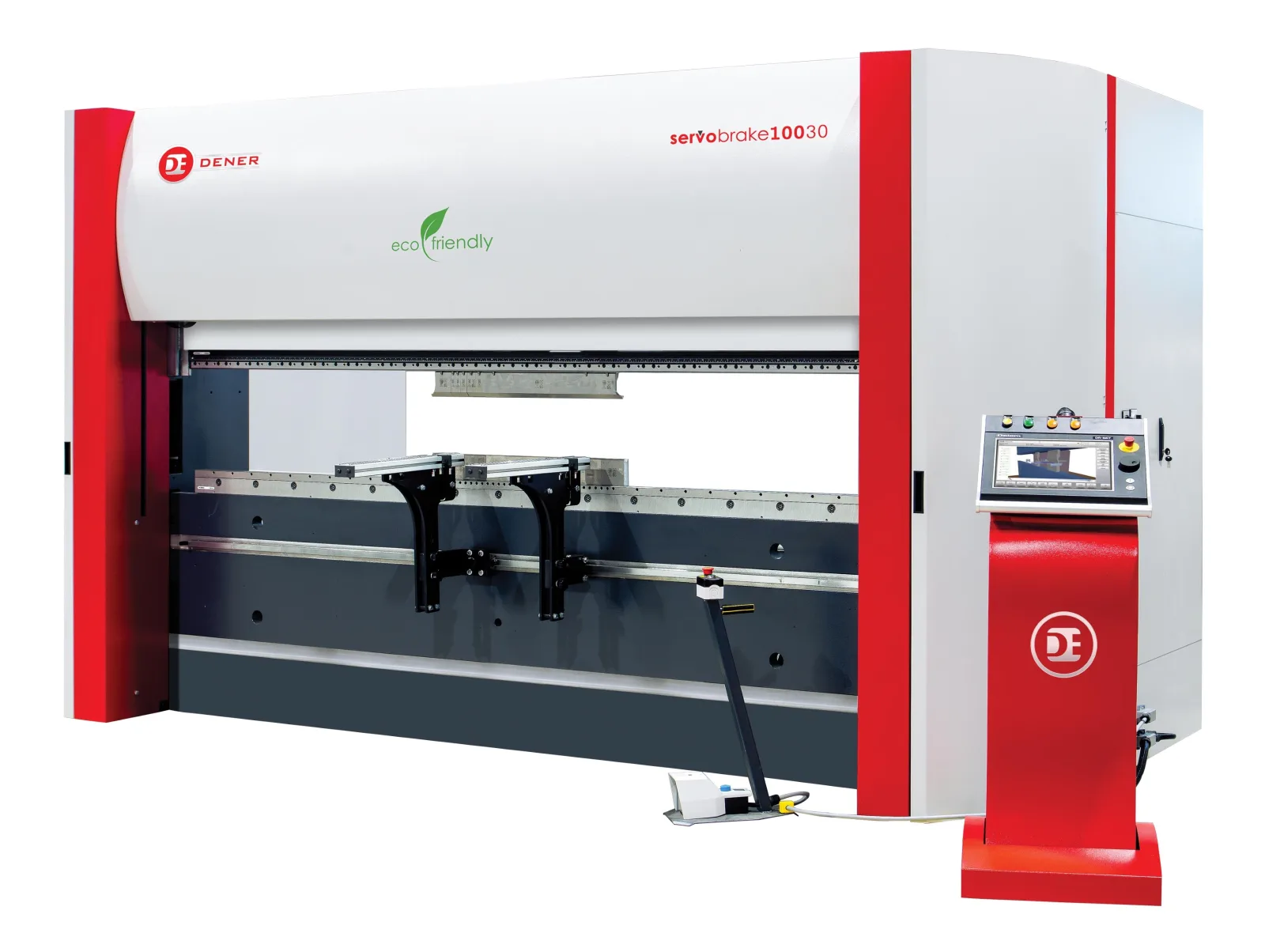

Dener CNC Servo Brake Series Servo Driven Press Brake
1 / 5
Dener logo WEB-DENER SERVO

Sheet Metal & Fabrication · Press brakes

Dener CNC Servo Brake Series Servo Driven Press Brake

Quality Turkish Servo motor driven CNC Press Brake Multi-axis CNC control Lengths available up to 4000mm Up to 200 ton capacity

POA: Let us know your requirements Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Introduction: DENER MAKINA was established in 1974 in Kayseri/TURKEY and is a manufacturer of NC and CNC Hydraulic Pressbrakes, NC Swingbeam and CNC Rake Angle Shears, Plasma Cutters, Corner Notchers and Folding Machines.

Since the very first beginning, DENER has had the philosophy of the production with best quality and high technology with ISO 9001 Quality Control Management System and European Safety Standards.

DENER MAKINA is one of the leading Turkish Brands in Sheetmetal Working Machinery with a large 18,000 m2 factory with skilled and qualified workers, and today DENER Machines are sold all over the world through their dealer network.

Dener CNC Servo Electric Press Brakes are non-hydraulic, flexible, reliable and advanced bending machines. This next generation idea combines green-eco friendly machinery with productivity, accuracy, flexibility and reliability. The new concept offers low power consumption, less maintenance and no hydraulic oil for operation.

Standard Features:

  • 4 axis CNC control - Y1, Y2, X, R
  • ESA S 660 W CNC control with 19" colour touch screen with 3D graphical display
  • Side and rear guarding
  • DSP laser guarding
  • Eurostamp segmented top tooling & multi vee bottom block

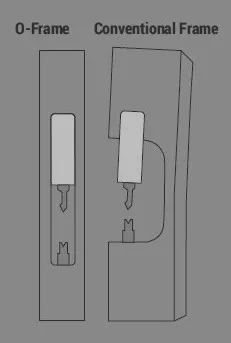

  • Closed O-Frame design to achieve a more rigid frame and consistent bending, no deformation under large forces
  • Full sheet width bending capability without the machine frames interfering
  • CE confirmation

Why buy a Servo electric press brake?

  • 100% pure electric power, no hydraulic oil
  • Up to 50% less energy consumption than a hydraulic press brake
  • Less maintenance cost – No hydraulic oil, filters, seals, valves or cylinders
  • Up to 35% faster than a hydraulic press brake, faster bending speed & shorter dwell times between approach/bending/return speed changes
  • Increase in bending accuracy over a hydraulic press brake due to no fluctuations in oil temperature
  • Significant noise reduction

Optional:

  • CNC controlled crowning
  • Delem DA-69T control with AKAS II laser finger guarding
  • Manual quick clamp top tooling
  • Wila tool holders in manual or hydraulic clamping configuration for quick tool changes
  • Wide range of Eurostamp tooling available

Multi-axis back gauge configuration options:

  • X, R, Z1, Z2 - 4 Axis back gauge
  • X, R, Z1, Z2, X Prime - 5 Axis back gauge
  • X1, X2, R1, R2, Z1, Z2 - 6 Axis ATF type back gauge

Machine video

See Dener CNC Servo Brake Series in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model Bending capacity (ton) Bending length (mm)
4015 40 1530
5020 50 2040
6525 65 2550
8025 80 2550
10030 100 1050
13030 130 3050
15030 150 3050
17535 175 3570
20040 200 4080
Contact us to discuss your bending requirements
