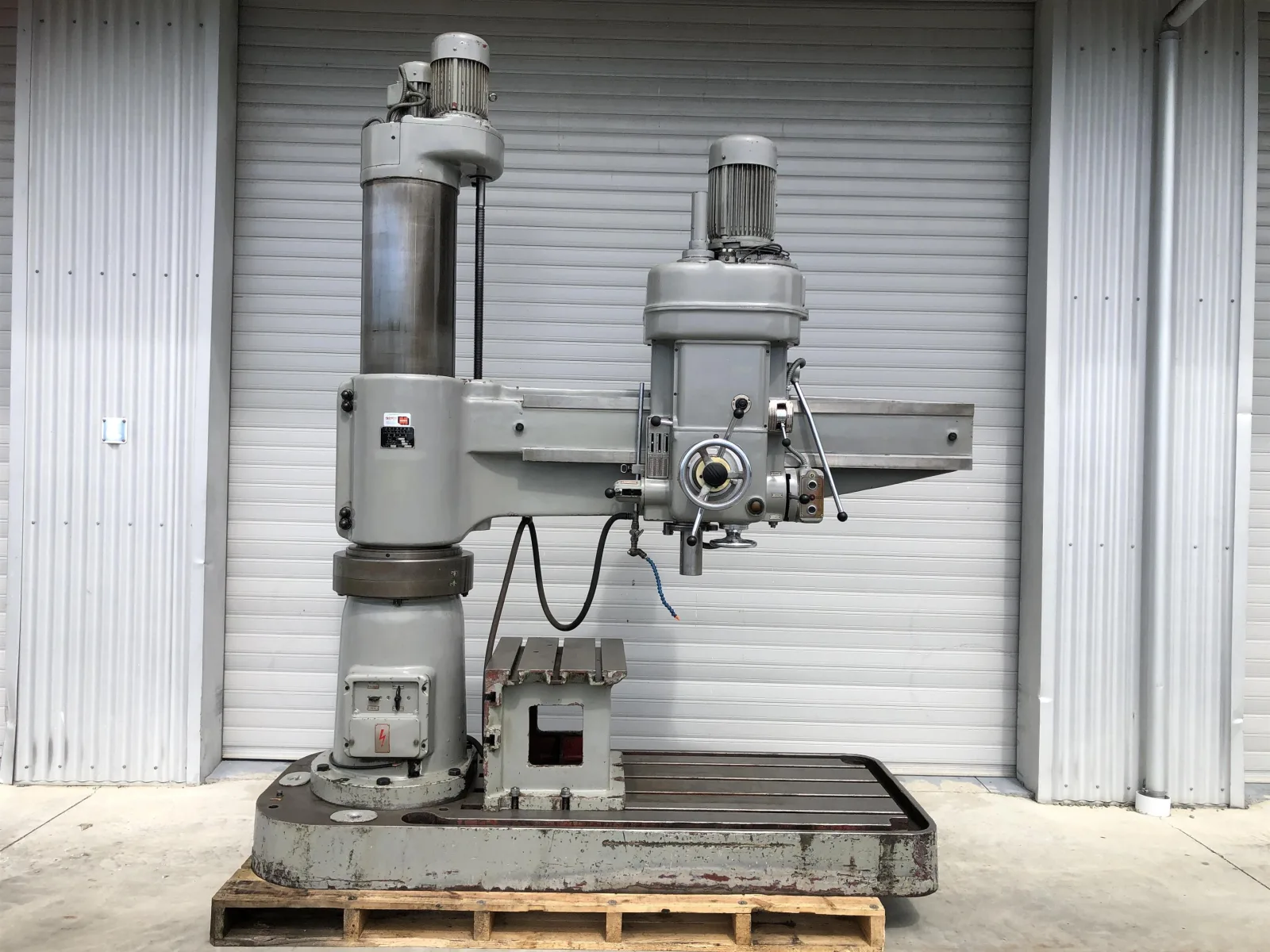

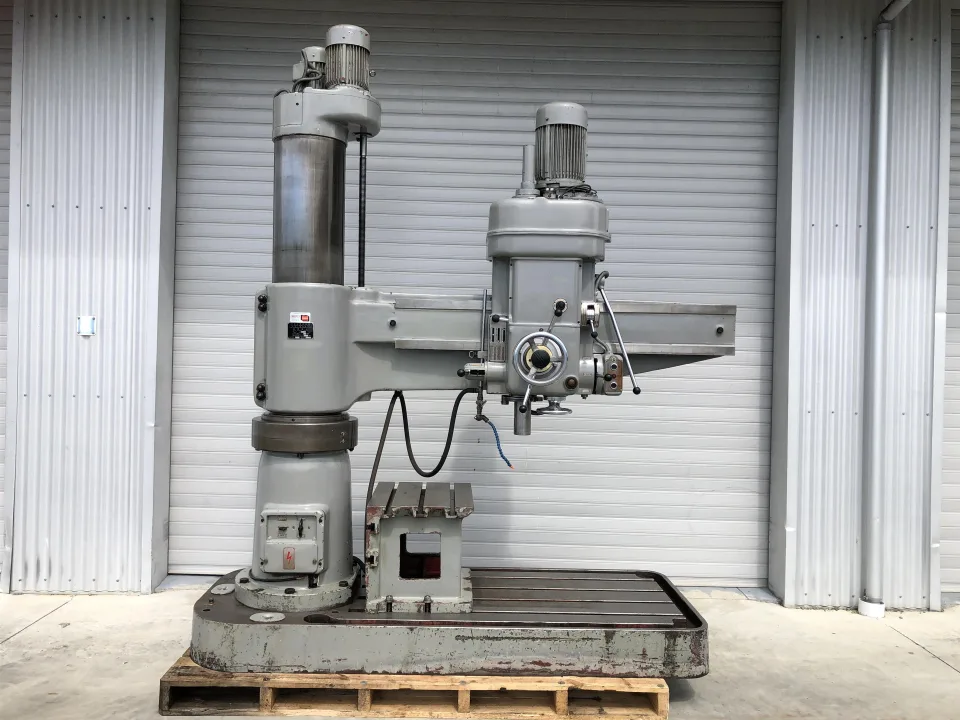

Z35 Used Radial Arm Drill

50mm drilling capacity, 5MT Spindle taper, 1600mm throat

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Drilling capacitiy (max in mild steel) 50mm
Spindle taper 5MT
Spindle speeds 34 - 1700 rpm (18 steps)
Spindle feeds 0.03 - 1.20 mm/per/rev
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Heavy duty radial arm drill. Good condition, runs well.

Features

  • Three phase
  • Heavy duty
  • Large capacity
  • 5MT spindle taper
  • Geared head
  • Head stock clutches
  • Power feed to quill
  • Powered rise & fall
  • Powered Column locks
  • Manual head lock
  • Rise and fall limit switches
  • Box table
  • Coolant system

Please note:

  • This machine has been powered up and basic functions have been demonstrated as you can see in the video.
  • See the video for more information

We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch

Machine video

See Z35 Used Radial Arm Drill in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Drilling capacitiy (max in mild steel) 50mm
Spindle taper 5MT
Spindle speeds 34 - 1700 rpm (18 steps)
Spindle feeds 0.03 - 1.20 mm/per/rev
Quill diameter 84mm
Quill travel 350mm
Max distance from quill to box table top 1100mm
Column diameter 350mm
Rise and fall (travel) 690mm
Box table sizes (W x D x H) 500mm x 630mm x 500mm
Max distance from column to spindle centre (throat) 1600mm (1520mm to column locking ring)
Main motor 7.5 hp
Power supply 415 volts / 50 hz / 3 phase
Freighting details (L x D x H) 2700mm x 1200mm x 3200mm
Weight (approx) 4500 kg
