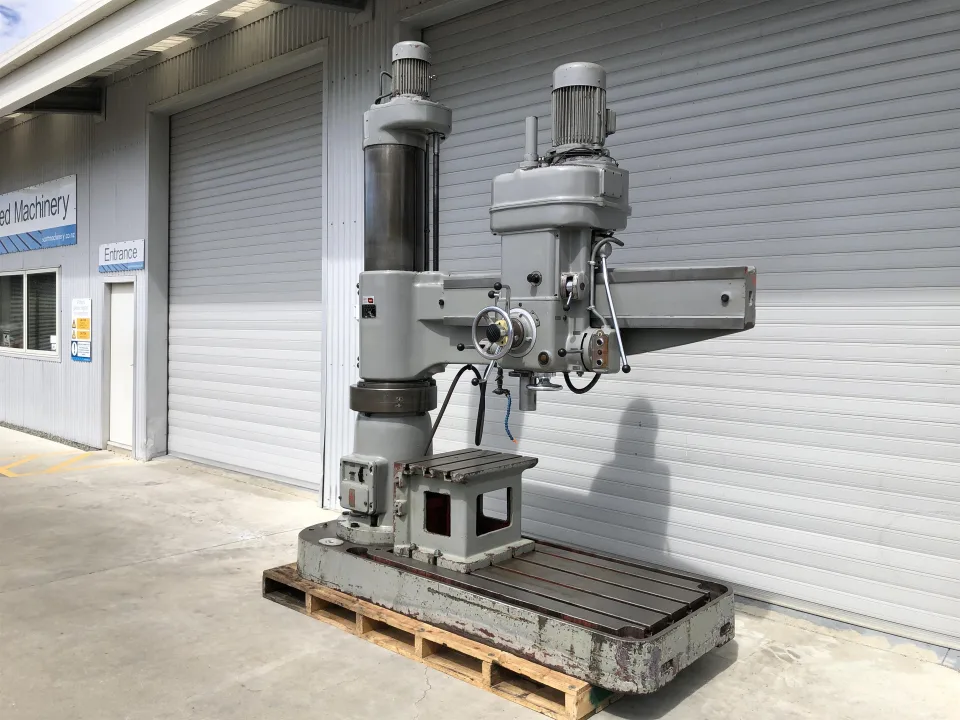

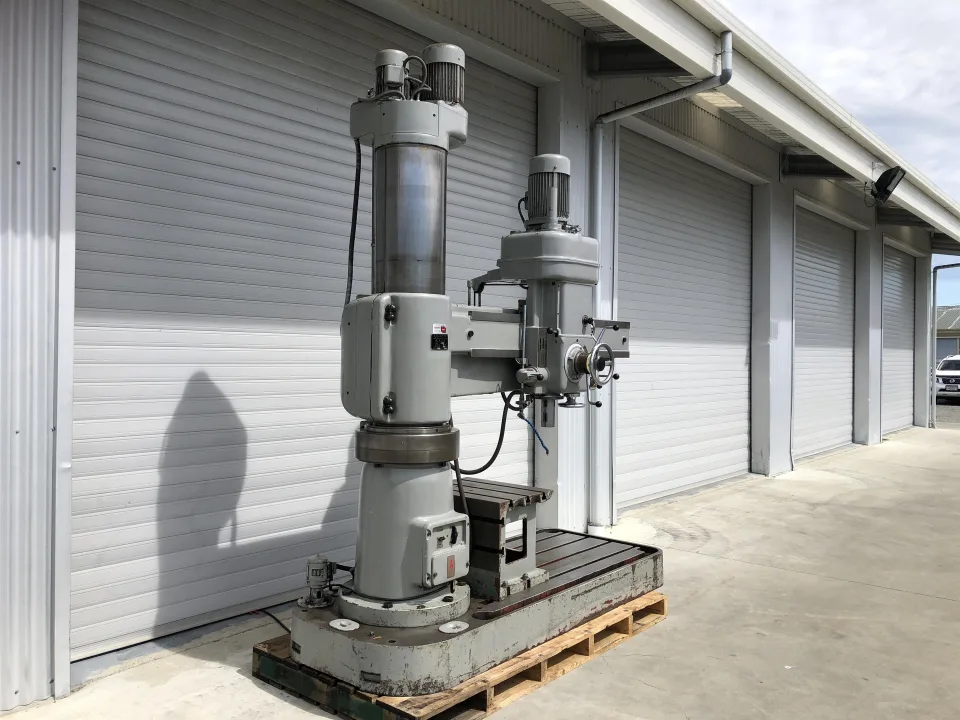

Z35 Used Radial Arm Drill
POA
DRAD-1-1011 | Prices exclude GST
Product overview
About this machine.
Heavy duty radial arm drill. Good condition, runs well.
Features
- Three phase
- Heavy duty
- Large capacity
- 5MT spindle taper

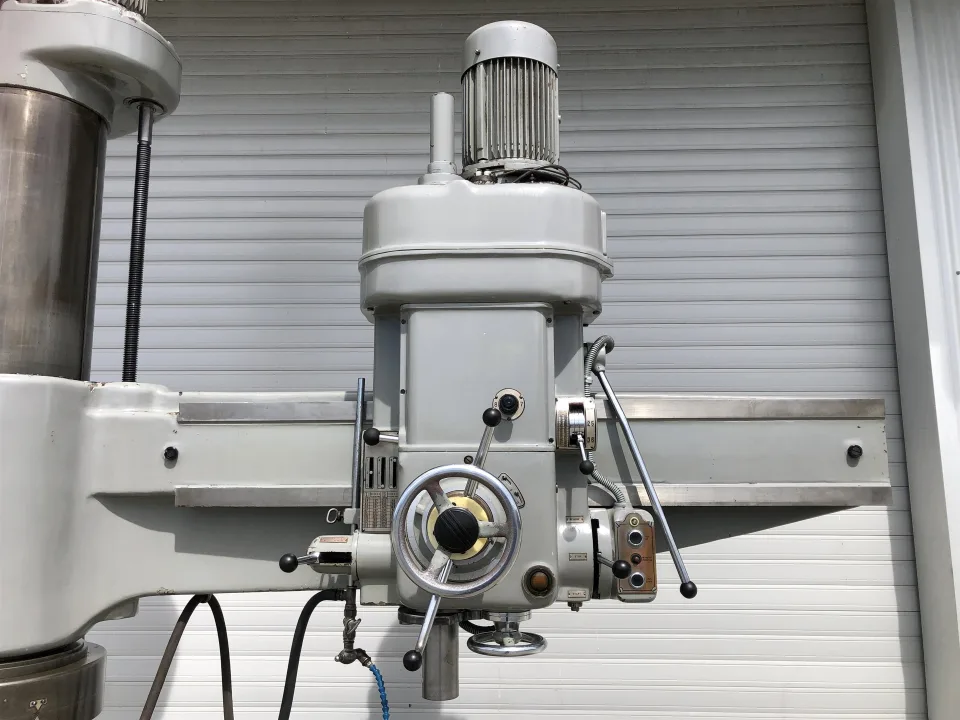

- Geared head
- Head stock clutches
- Power feed to quill
- Powered rise & fall
- Powered Column locks
- Manual head lock
- Rise and fall limit switches

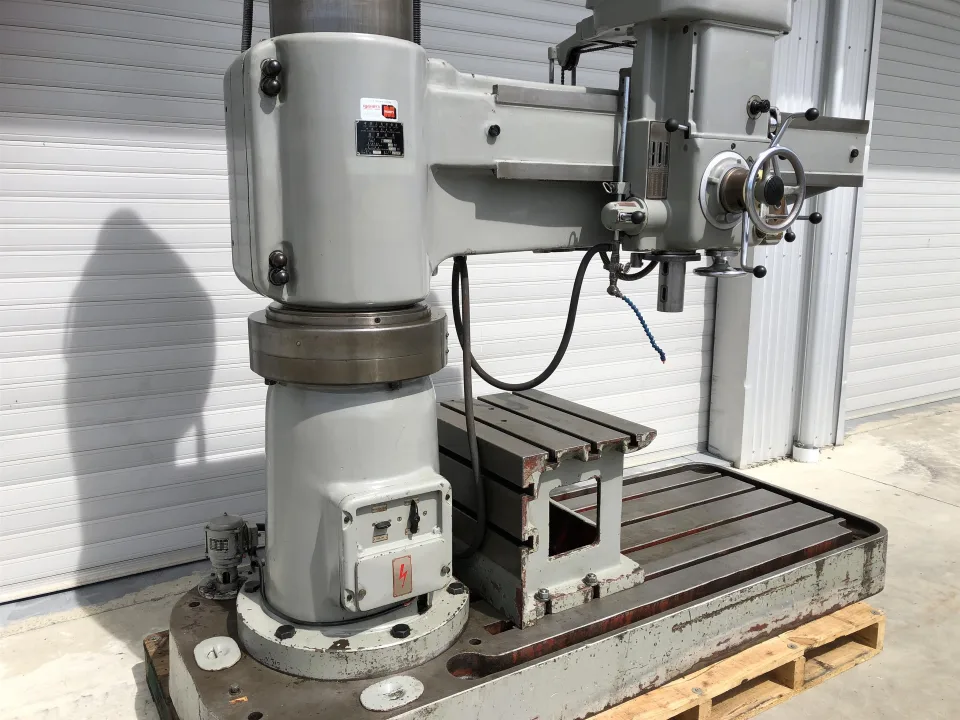

- Box table
- Coolant system
Please note:
- This machine has been powered up and basic functions have been demonstrated as you can see in the video.
- See the video for more information
We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Drilling capacitiy (max in mild steel)
50mm
Spindle taper
5MT
Spindle speeds
34 - 1700 rpm (18 steps)
Spindle feeds
0.03 - 1.20 mm/per/rev
Quill diameter
84mm
Quill travel
350mm
Max distance from quill to box table top
1100mm
Column diameter
350mm
Rise and fall (travel)
690mm
Box table sizes (W x D x H)
500mm x 630mm x 500mm
Max distance from column to spindle centre (throat)
1600mm (1520mm to column locking ring)
Main motor
7.5 hp
Power supply
415 volts / 50 hz / 3 phase
Freighting details (L x D x H)
2700mm x 1200mm x 3200mm
Weight (approx)
4500 kg
