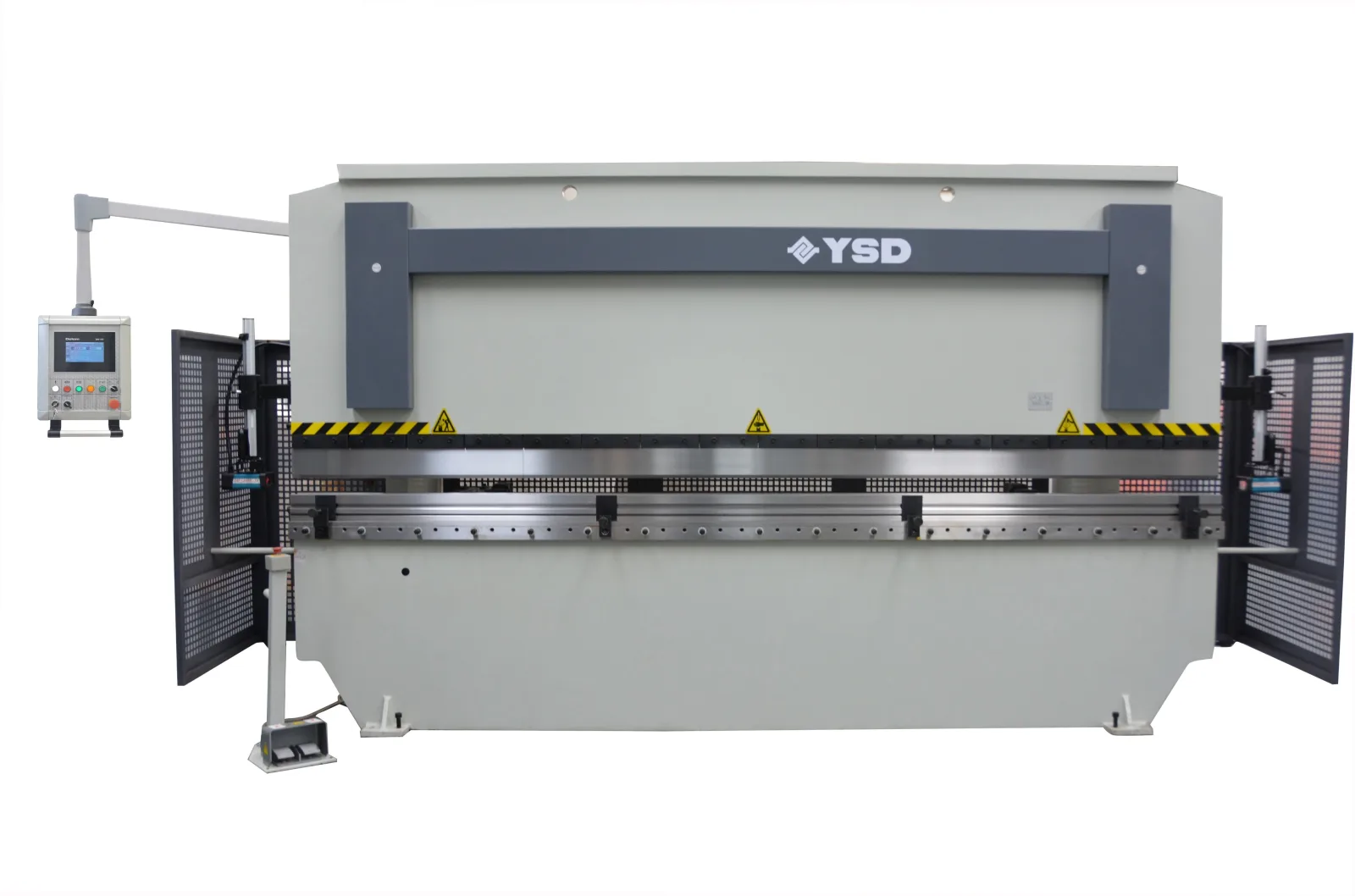

YSD PPTK 135/40 Hydraulic Pressbrake

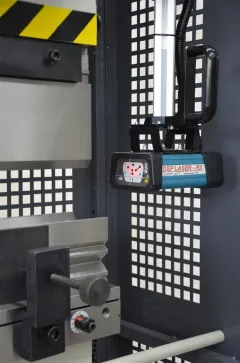

Name: YSD PPTK 135/40 Hydraulic Pressbrake – With Delem DA-41 Control & DSP Laser
Brand: YSD
SKU: PBRK-0-0247

Torsion bar system

POA Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model PPTK 135/40

Pressing force 135 ton

Working length 4000mm

Distance between frames 3150mm

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

YSD, the manufacturing company for LVD Belgium, have developed, using technology and experience gained from LVD, a range of pressbrakes and guillotines that has some of the best design features and componentry in its class. These machines, primarily developed for the European market, incorporate many internationally sourced components to achieve the stability, accuracy, reliability and performance expected from a quality machine. The frames have been designed using Uni-Graphics Finite Element Analysis (FEA) software, to ensure acceptable distortion under maximum load. The side frames are fully welded to the bottom beam creating a solid steel structure and the result is an extremely rigid frame.

The YSD PPTK series is a proven NC controlled press-brake that is a top seller throughout New Zealand. This heavy duty, no frills machine features a significantly larger torsion bar than many similar machines. With its robust frame and basic controller, along with time proven Rexroth, Vickers or Bosch hydraulic components and Schnieder electrical components, the PPTK series is known as the "Hilux" of New Zealand press-brakes. They are built tough, durable and strong for years of reliable service.

Features:

Delem DA-41T programmable NC control (Programmable in degrees)
Complex shapes can be achieved in high speed by mode selection enabling box folding or having the back gauge close to the tool

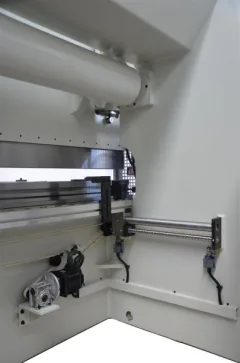

NC controlled back gauge with ball screws
NC controlled bending depth adjustment programmable in degree's
Manually adjustable table crowning

Standard Accessories:

Two front support arms
Two vertical hand wheel adjustable back gauge fingers ( Manual R axis )
R10A straight (supplied standard) or optional E10A (goose neck) segmented top, tool height 135mm 2500,1000,1000,500,385,300,150,125,115,100,50,25 Total length = 6250mm
M112 bottom tool 90mm largest vee
Electric motor to IE2 motor efficiency standards
Single slot in table for optional Euro tooling
ISO9001 Norm
NB: Supplied without Hydraulic oil

Components:

Valves by Rexroth, Vickers or Bosch
Pump by Nachi of Japan
Seals by NOK of Japan or Merkel of Germany
Main electric components from Telemecanique of France
Pressure gauge by HAWE of Germany

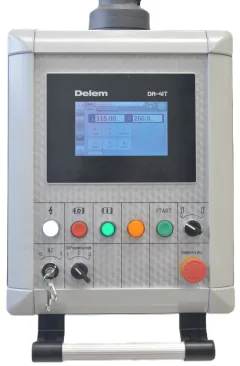

Delem DA-41T NC control:

The DA-41T NC control provides a complete solution for conventional press brake applications for 2 axes.

It offers a versatile solution for axes control for the press beam and back gauge as well as a flexible I/O configuration, based on "state of the art" electronics.
