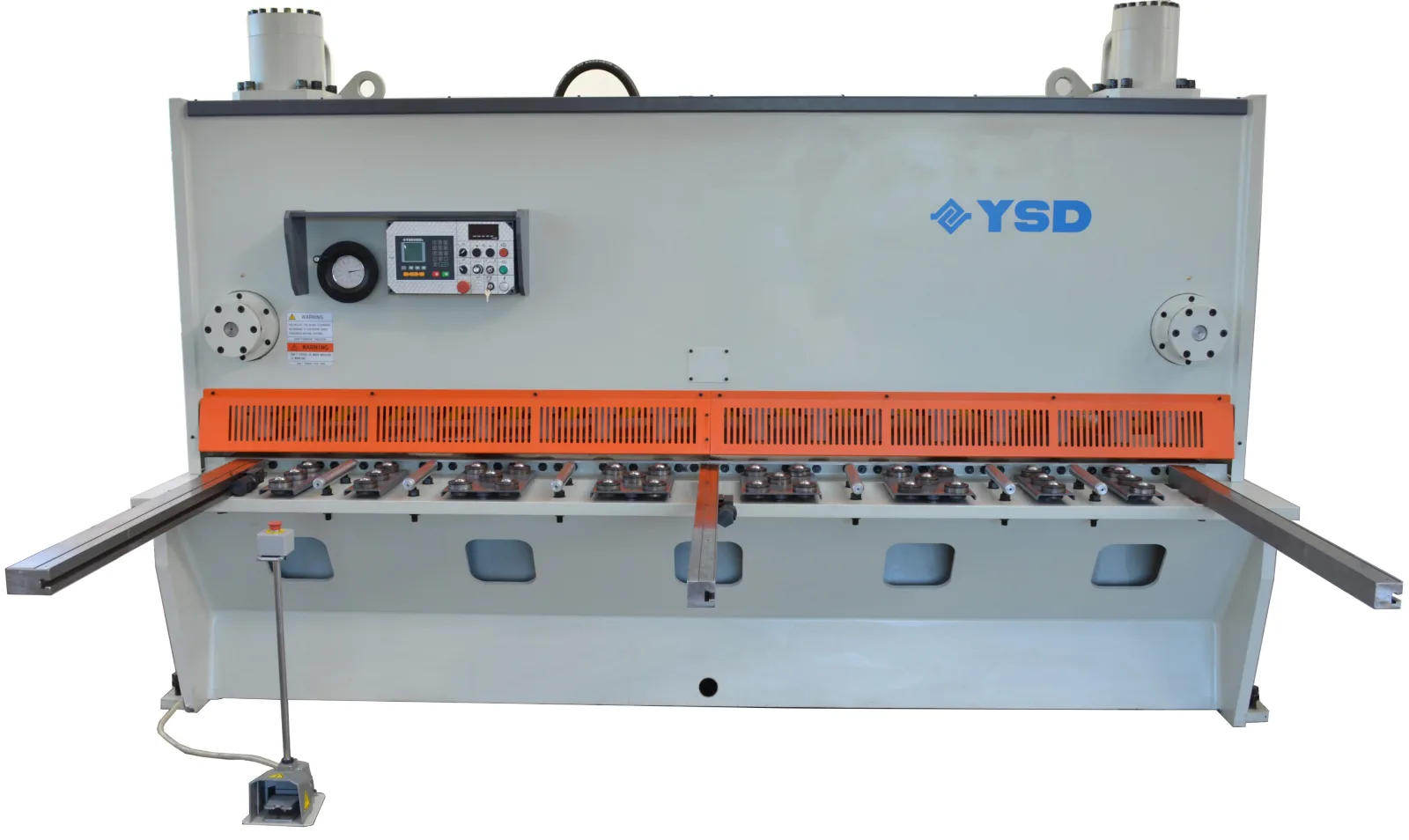

YSD HGNK 31/13 Hydraulic Guillotine

8 - 13mm capacity models 2500 - 5000mm lengths

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

8 - 13mm capacity models 2500 - 5000mm lengths

Standard features:

  • Heavy duty frame
  • Electrical display
  • Powered backgauge
  • Adjustable blade rake cutting angle
  • High quality four sided blades
  • Handwheel for easy blade
  • clearance adjustment
  • Adjustable cutting stroke for speed
  • Shadow-line lighting
  • Foot switch on cord
  • Front support arms with scale
  • Ball transporters on table

Optional:

  • Blades for cutting stainless steel
  • NC programmable back gauge control

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model HGN 25/8 HGN 31/8 HGN 40/8 HGN 50/8 HGN 25/13 HGN 31/13
Shearing capacity 8mm 8mm 8mm 8mm 13mm 13mm
Stainless steel 4mm 4mm 4mm 4mm 8mm 8mm
Cutting force (max) 220 kN 275 kN 275 kN 275 kN 580 kN 580 kN
Cutting length 2500mm 3100mm 4000mm 5000mm 2500mm 3100mm
Rake angle adjustment 0.5 - 2.5 degrees 0.5 - 2.0 degrees 0.5 - 2.0 degrees 0.5 - 2.5 degrees 0.5 - 2.5 degrees 0.5 - 2.5 degrees
Strokes per minute 17 - 45 15 - 45 13 - 45 8 - 30 9 - 35 7 - 35
Back gauge range 750mm 750mm 750mm 1000mm 1000mm 1000mm
Number of holddowns 14 13 22 26 14 13
Volume of oil tank 290 L 350 L 400 L 605 L 383 L 449 L
Motor power 11 kw 11 kw 15 kw 15 kw 15 kw 15 kw
Machine weight 5500 kg 6500 kg 9000 kg 19000 kg 7500 kg 8700 kg
Length 3200mm 3800mm 4750mm 5885mm 3260mm 3860mm
Width 1848mm 1848mm 1918mm 2485mm 1960mm 1960mm
Height 2178mm 2178mm 2325mm 2520mm 2320mm 2320mm
