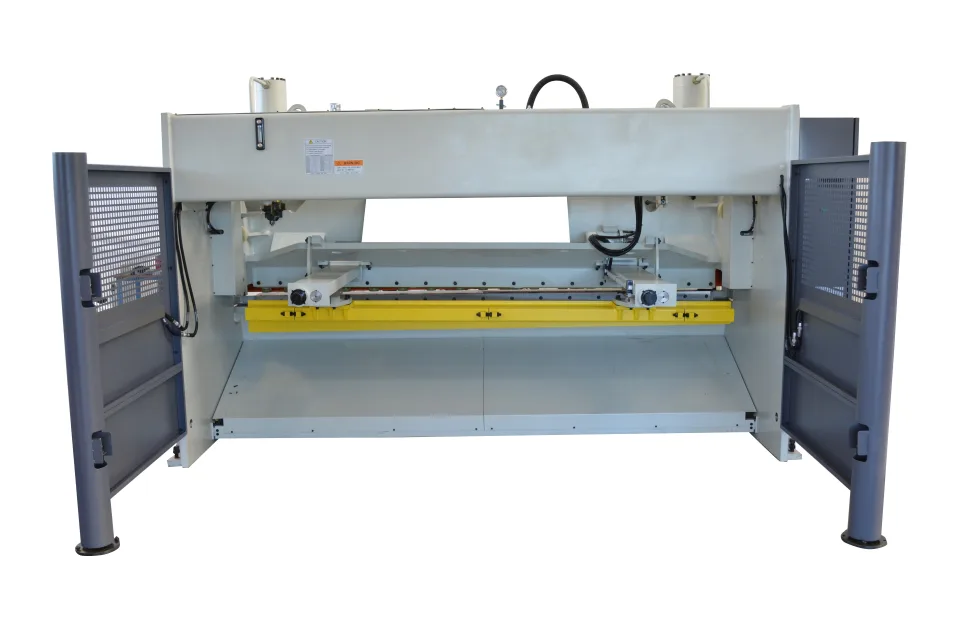

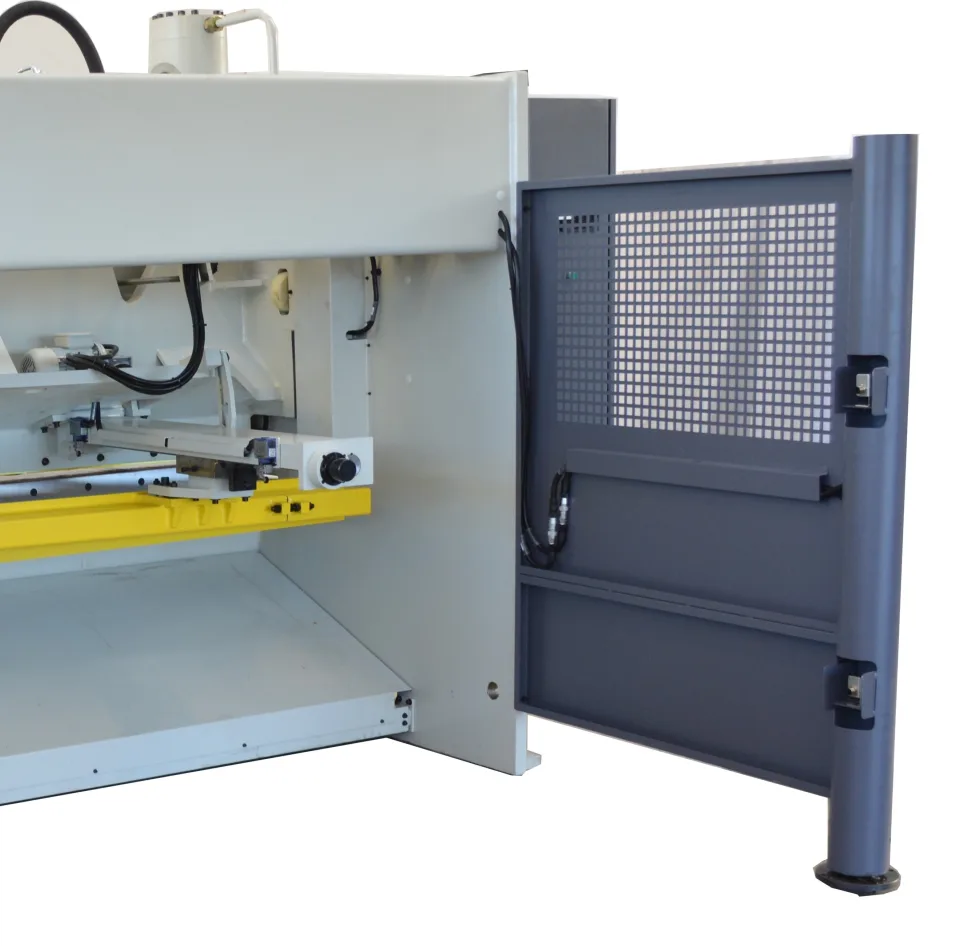

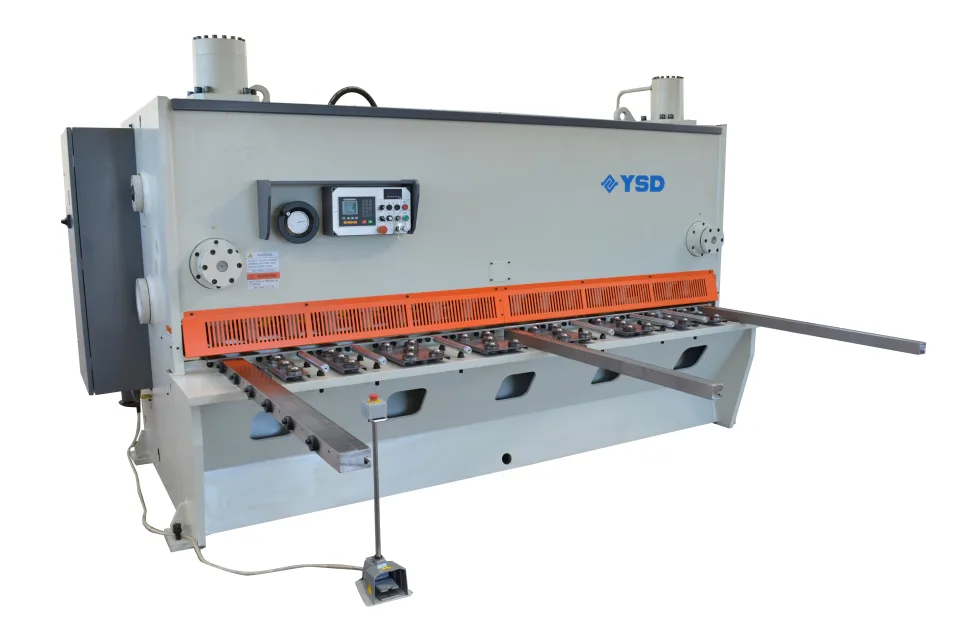

YSD HGNK 31/13 Hydraulic Guillotine
c/w YSD 6000S NC Control
POA
GHYD-0-9013 | Prices exclude GST
Product overview
About this machine.
8 - 13mm capacity models 2500 - 5000mm lengths
Standard features:
- Heavy duty frame
- Electrical display
- Powered backgauge
- Adjustable blade rake cutting angle
- High quality four sided blades

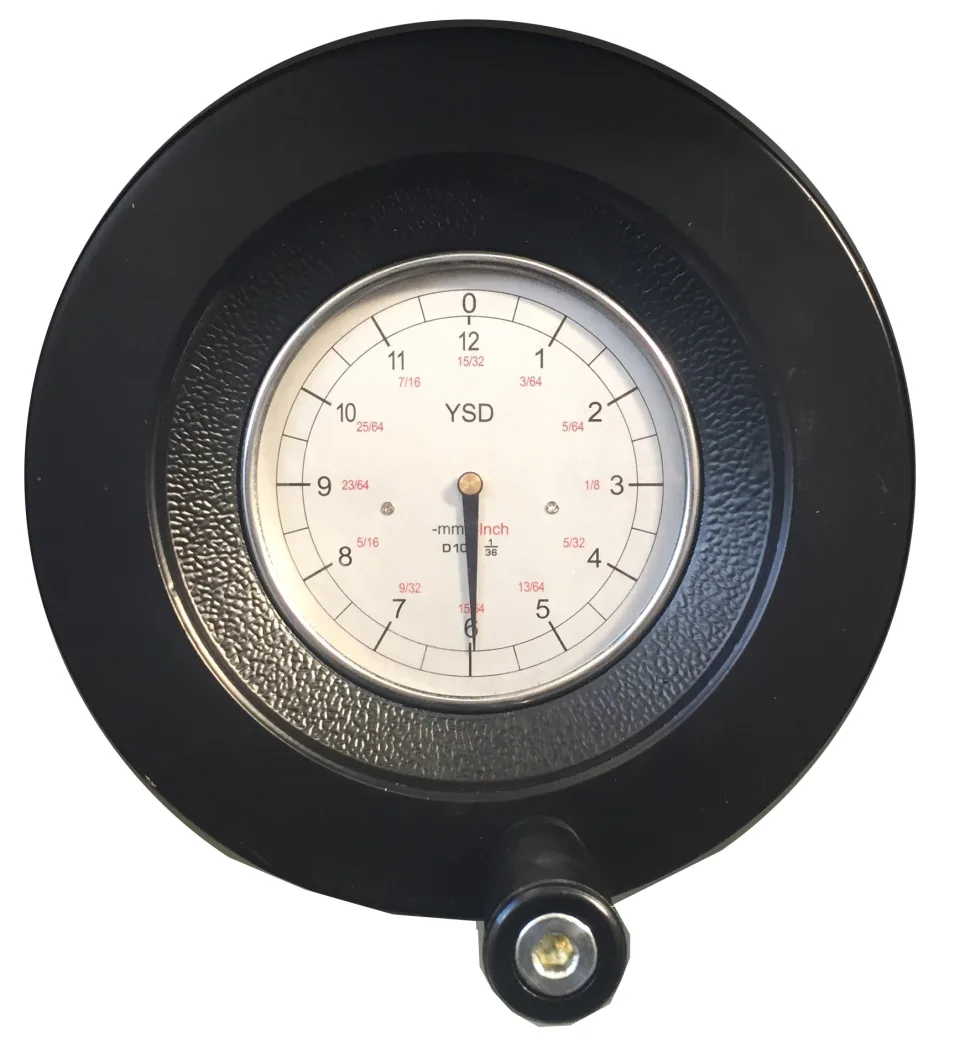

- Handwheel for easy blade
- clearance adjustment
- Adjustable cutting stroke for speed
- Shadow-line lighting
- Foot switch on cord
- Front support arms with scale
- Ball transporters on table
Optional:
- Blades for cutting stainless steel
- NC programmable back gauge control
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | HGN 25/8 | HGN 31/8 | HGN 40/8 | HGN 50/8 | HGN 25/13 | HGN 31/13 |
|---|---|---|---|---|---|---|
| Shearing capacity | 8mm | 8mm | 8mm | 8mm | 13mm | 13mm |
| Stainless steel | 4mm | 4mm | 4mm | 4mm | 8mm | 8mm |
| Cutting force (max) | 220 kN | 275 kN | 275 kN | 275 kN | 580 kN | 580 kN |
| Cutting length | 2500mm | 3100mm | 4000mm | 5000mm | 2500mm | 3100mm |
| Rake angle adjustment | 0.5 - 2.5 degrees | 0.5 - 2.0 degrees | 0.5 - 2.0 degrees | 0.5 - 2.5 degrees | 0.5 - 2.5 degrees | 0.5 - 2.5 degrees |
| Strokes per minute | 17 - 45 | 15 - 45 | 13 - 45 | 8 - 30 | 9 - 35 | 7 - 35 |
| Back gauge range | 750mm | 750mm | 750mm | 1000mm | 1000mm | 1000mm |
| Number of holddowns | 14 | 13 | 22 | 26 | 14 | 13 |
| Volume of oil tank | 290 L | 350 L | 400 L | 605 L | 383 L | 449 L |
| Motor power | 11 kw | 11 kw | 15 kw | 15 kw | 15 kw | 15 kw |
| Machine weight | 5500 kg | 6500 kg | 9000 kg | 19000 kg | 7500 kg | 8700 kg |
| Length | 3200mm | 3800mm | 4750mm | 5885mm | 3260mm | 3860mm |
| Width | 1848mm | 1848mm | 1918mm | 2485mm | 1960mm | 1960mm |
| Height | 2178mm | 2178mm | 2325mm | 2520mm | 2320mm | 2320mm |
