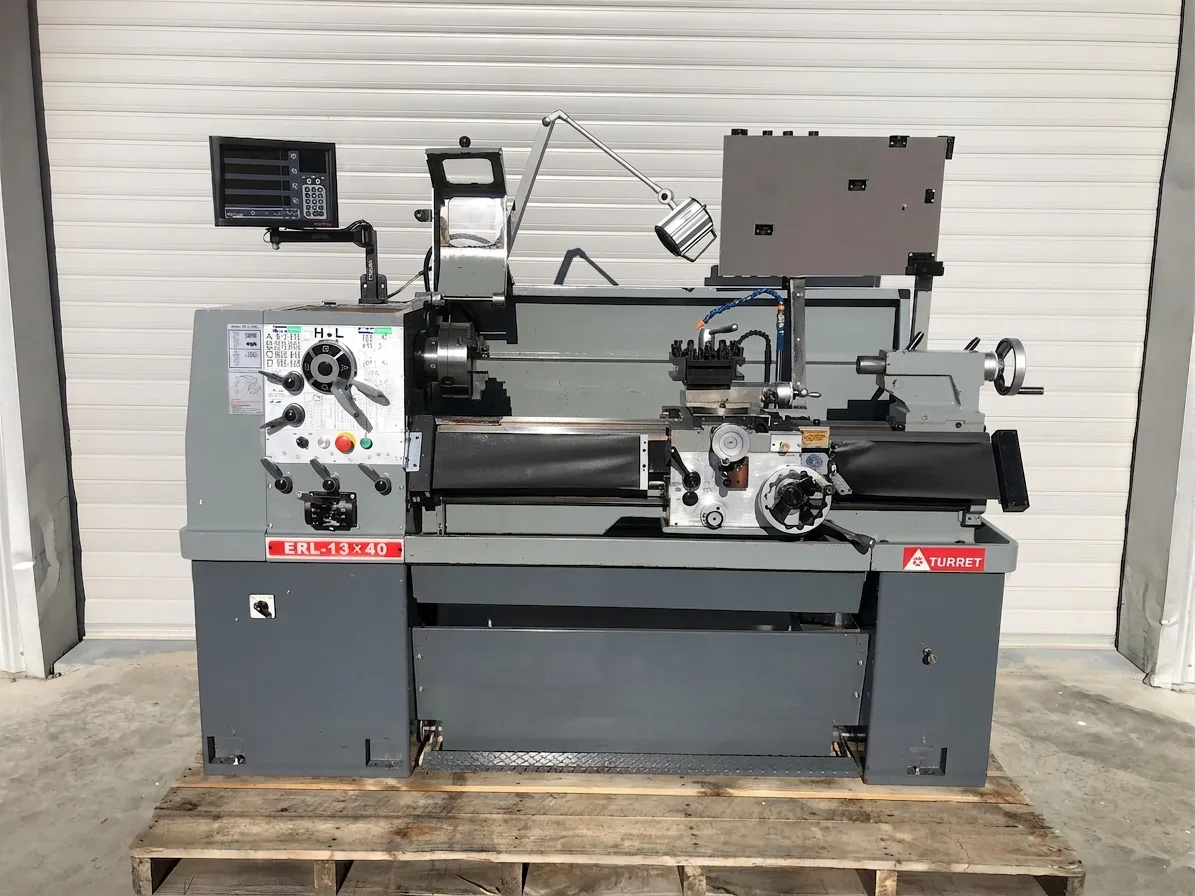

Turret ERL-1340 Used Centre Lathe c/w DRO & QCT
340mm swing x 1000mm centres x 40mm bore. Newall DP1200 digital read out plus quick change tool post.
$16,900.00
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Swing over bed
340mm
Distance between centres
1000mm
Spindle bore
40mm
Swing over cross slide
205mm
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Quality Taiwanese gap bed lathe with good features. Good condition, runs well.
Features
- Three phase
- Gap bed
- Quality Taiwanese
- Digital read out
- Quick change tool post
- 2 speed motor providing 16 speeds
- D1-4 camlock spindle
- Chuck guard (electrically switched)
- Full length rear splash guard
- Right hand carriage wheel
- Thread dial indicator
- Halogen lamp
- Coolant system
- Emergency foot brake
Accessories
- Quick change tool post c/w 3 tool holders
- 195mm 3 jaw chuck
- 250mm 4 jaw chuck
- 315mm face plate
- Drive plate
- Head stock sleeve
- Traveling steady
- Fixed steady
- Rubber anti-vibration mounting feet
- Owners manual (electronic copy)
Please note:
- This machine has been powered up and basic functions have been demonstrated as you can see in the video.
- See the video for more information
We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch
Machine video
See Turret ERL-1340 in operation.
Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.
Discuss your applicationPublished data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Swing over bed
340mm
Swing over cross slide
205mm
Swing in gap
512mm
Distance between centres
1000mm
Spindle bore
40mm
Spindle speeds
50 - 2570 rpm (16 steps)
Tailstock taper
3 MT
Thread cutting
Metric and imperial
Main motor
5 hp
Power supply
415 volts / 50 hz / 3 phase
Freighting details (L x D x H)
2200mm x 1200mm x 1900mm
Weight (approx)
1200 kg
Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
Auckland · Christchurch · Nationwide support
