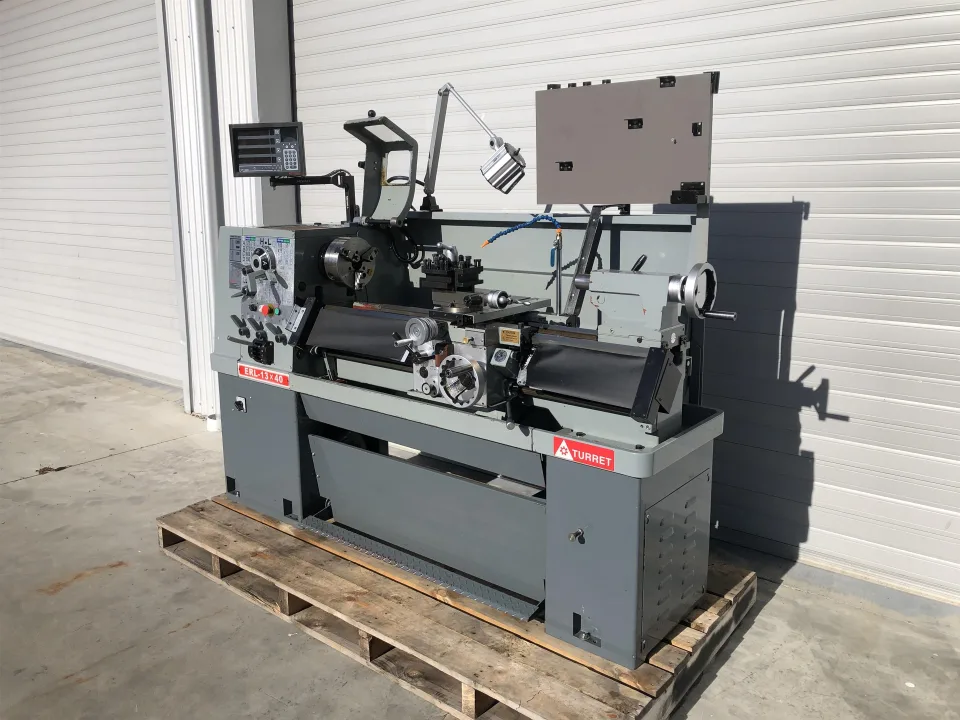

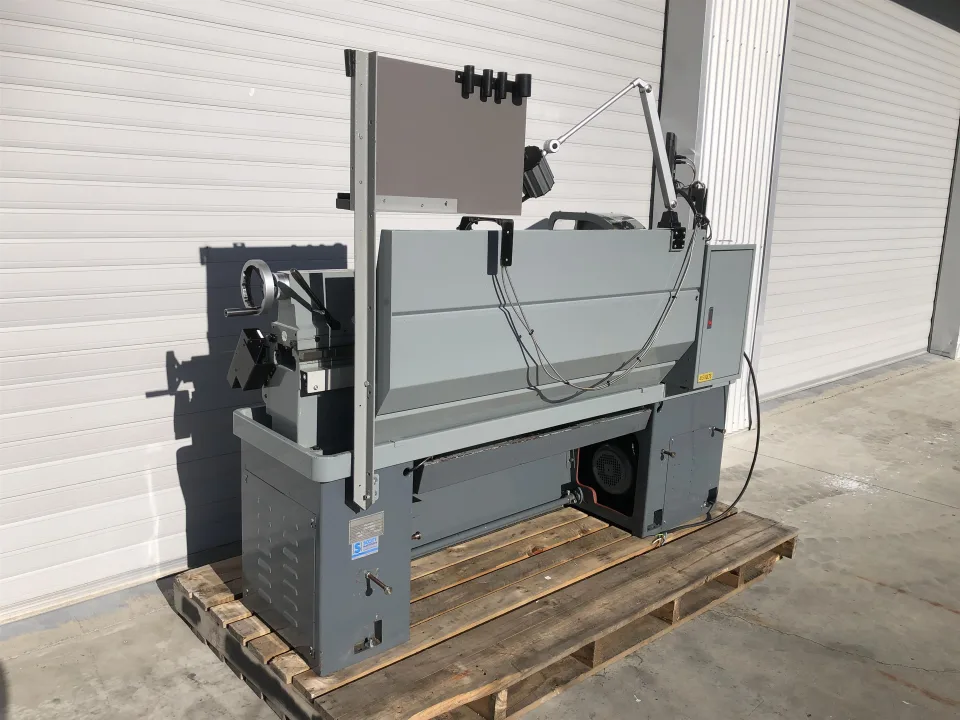

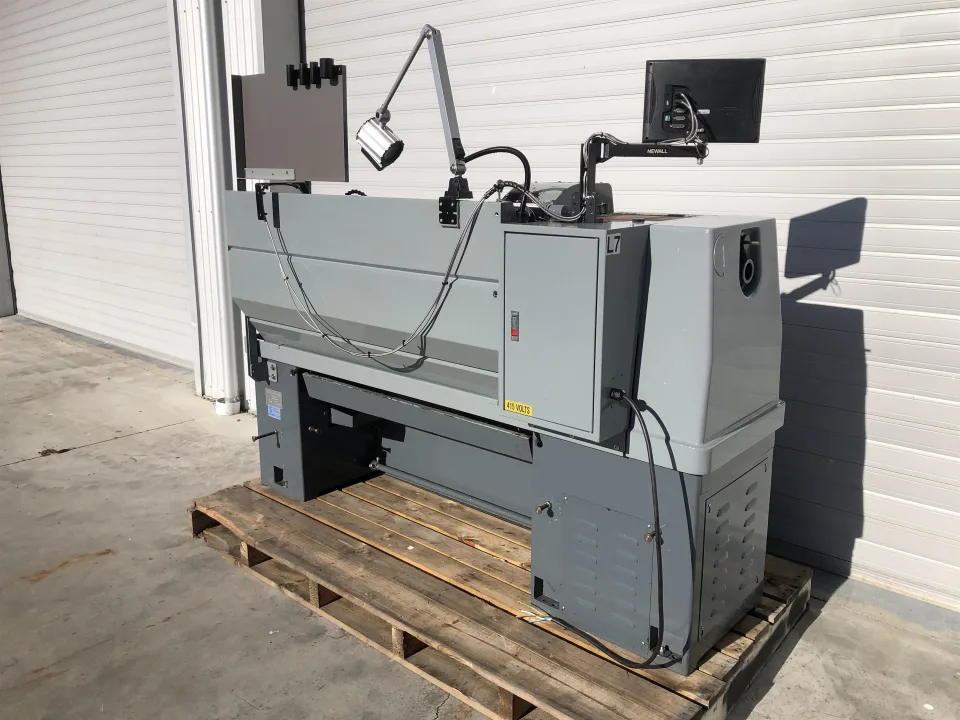

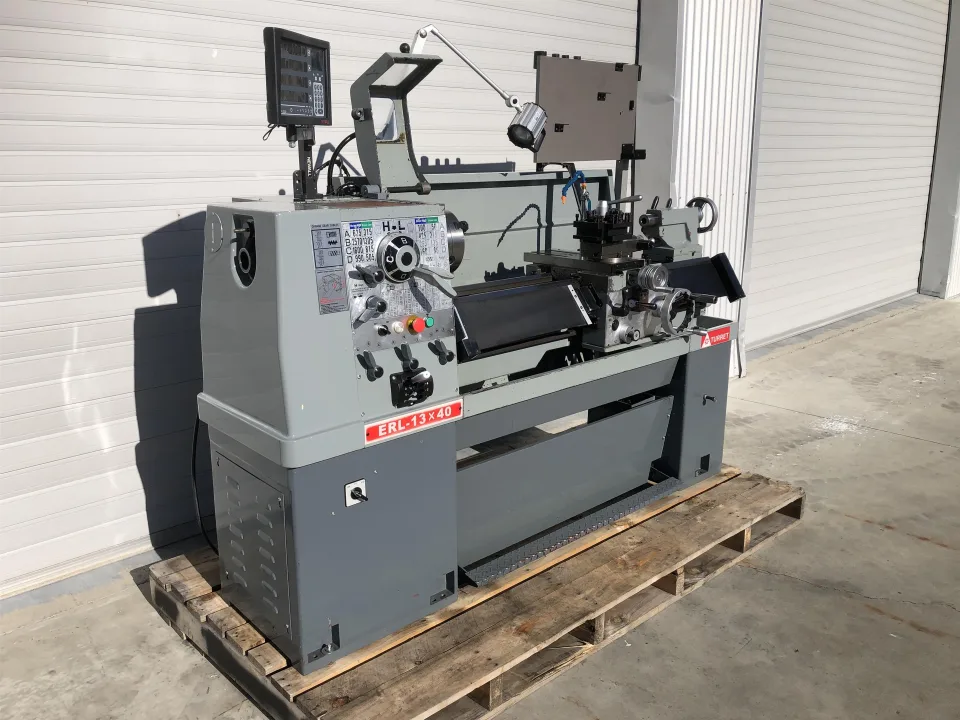

Turret ERL-1340 Used Centre Lathe c/w DRO & QCT
$16,900.00
LCNT-1-9347 | Prices exclude GST
Product overview
About this machine.
Quality Taiwanese gap bed lathe with good features. Good condition, runs well.
Features
- Three phase
- Gap bed
- Quality Taiwanese
- Digital read out
- Quick change tool post
- 2 speed motor providing 16 speeds
- D1-4 camlock spindle
- Chuck guard (electrically switched)
- Full length rear splash guard
- Right hand carriage wheel
- Thread dial indicator
- Halogen lamp
- Coolant system
- Emergency foot brake
Accessories
- Quick change tool post c/w 3 tool holders
- 195mm 3 jaw chuck
- 250mm 4 jaw chuck
- 315mm face plate
- Drive plate
- Head stock sleeve
- Traveling steady
- Fixed steady
- Rubber anti-vibration mounting feet
- Owners manual (electronic copy)
Please note:
- This machine has been powered up and basic functions have been demonstrated as you can see in the video.
- See the video for more information
We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Swing over bed
340mm
Swing over cross slide
205mm
Swing in gap
512mm
Distance between centres
1000mm
Spindle bore
40mm
Spindle speeds
50 - 2570 rpm (16 steps)
Tailstock taper
3 MT
Thread cutting
Metric and imperial
Main motor
5 hp
Power supply
415 volts / 50 hz / 3 phase
Freighting details (L x D x H)
2200mm x 1200mm x 1900mm
Weight (approx)
1200 kg
