LCNT-0-3123
Workshop Machinery · Conventional lathes

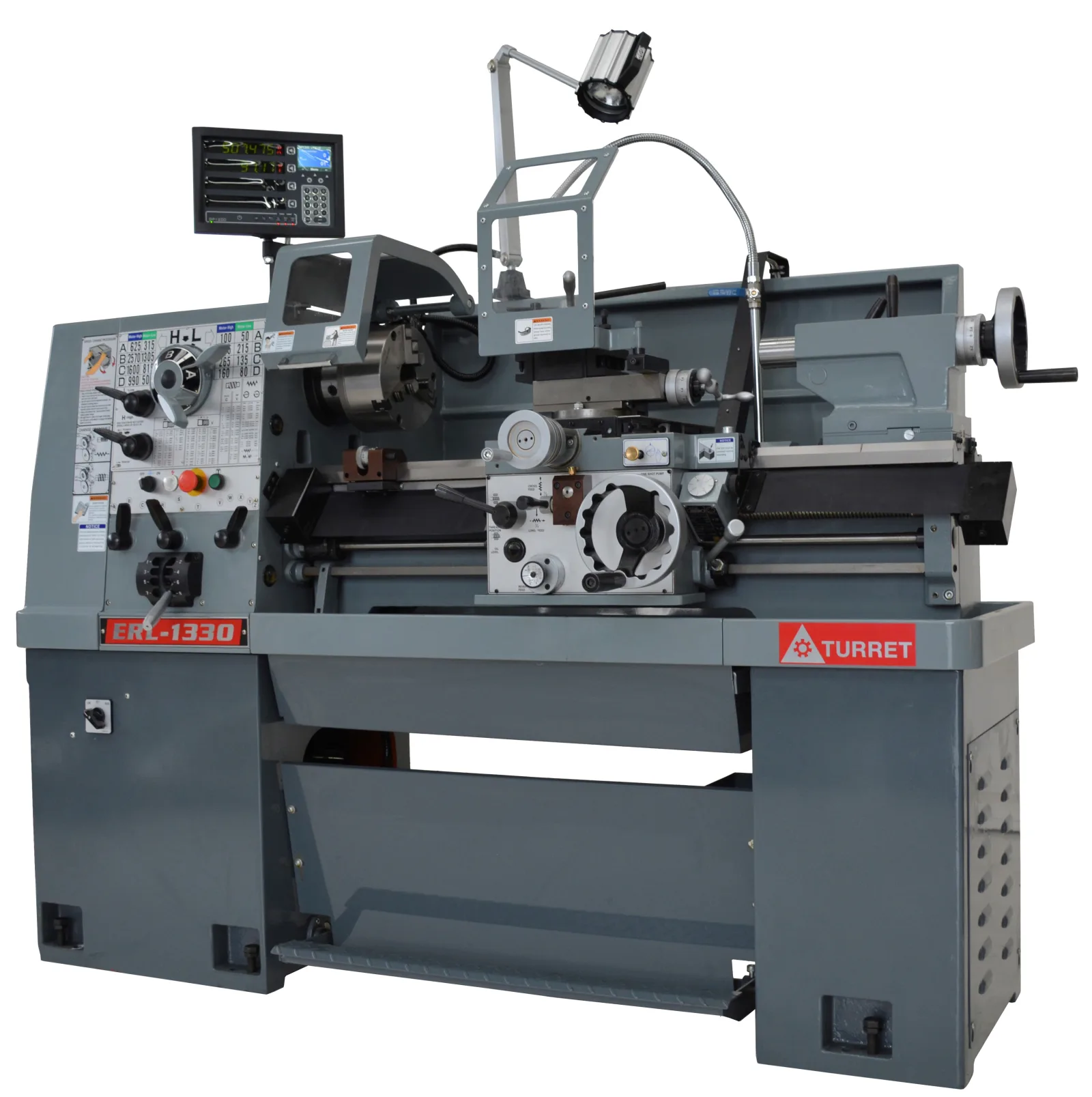

Turret ERL-1330-CE Premium Quality Straight Bed Lathe
342 swing x 760 centres x 40mm bore
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Swing over bed
342mm
Distance between centres
760mm
Spindle bore
40mm
Swing over cross slide
205mm
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
342 swing x 760 centres x 40mm bore
Features:
- Quality Taiwanese Manufacturing
- Time proven design
- Excellent cutting performance
- High degree of feel & sensitivity
- Feed sensitive clutch on apron
- Pressure headstock lubrication
- D1-4 Camlock spindle
- 16 speeds via 5hp 2 speed motor
- Strong brand 192mm 3 jaw chuck
- Universal brand 200mm 4 jaw chuck
- Thread dial indicator
- Full length splash guard
- Halogen lamp
- Coolant
- Footbrake
- Chuck guard
- Leadscrew protection
- Toolpost protection
- Right hand carriage wheel
- Includes Taper turning attachment
Optional:
- Newall DRO system , UK
- Italian Quick Change Tool Post
- New generation rear guarding system (not shown)
- Gap bed via model ERL-1340
- Headstock clutches via model BHL-1550
- EVS Electronic variable speed system
- D1-4 300mm Faceplate
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Swing over bed
342mm
Swing over cross slide
205mm
Swing in gap
n/a
Distance between centres
760mm
Spindle bore
40mm
Bed width
230mm
Spindle speed range
60 - 2,570 rpm (16 steps)
Number of spindle speeds
16
Tailstock taper
3MT
Motor power
5hp 415V
Weight
1000kg
Foot print
1850 x 900 x 1300
Shipping
2270 x 965 x 1745mm - 3.4m3 1,000kg
Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
