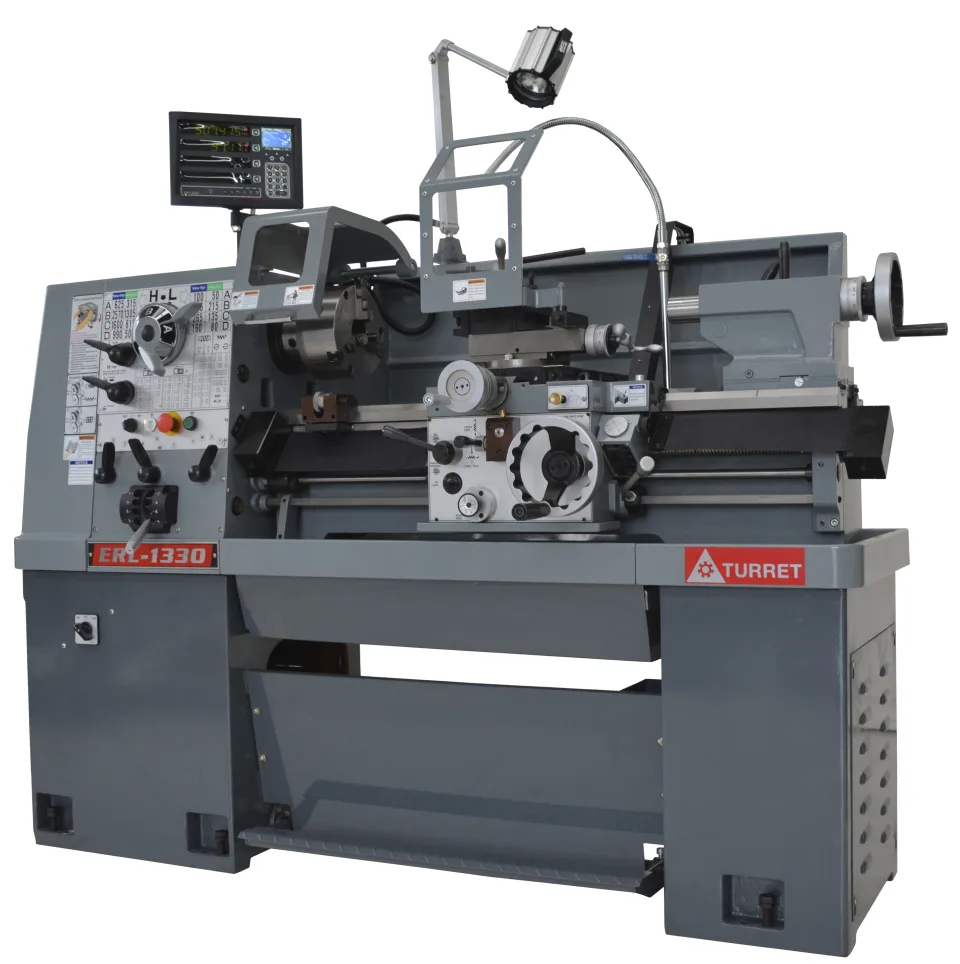

Turret ERL-1330-CE Premium Quality Straight Bed Lathe
POA
LCNT-0-3123 | Prices exclude GST
Product overview
About this machine.
342 swing x 760 centres x 40mm bore
Features:
- Quality Taiwanese Manufacturing
- Time proven design
- Excellent cutting performance
- High degree of feel & sensitivity
- Feed sensitive clutch on apron
- Pressure headstock lubrication
- D1-4 Camlock spindle
- 16 speeds via 5hp 2 speed motor
- Strong brand 192mm 3 jaw chuck
- Universal brand 200mm 4 jaw chuck

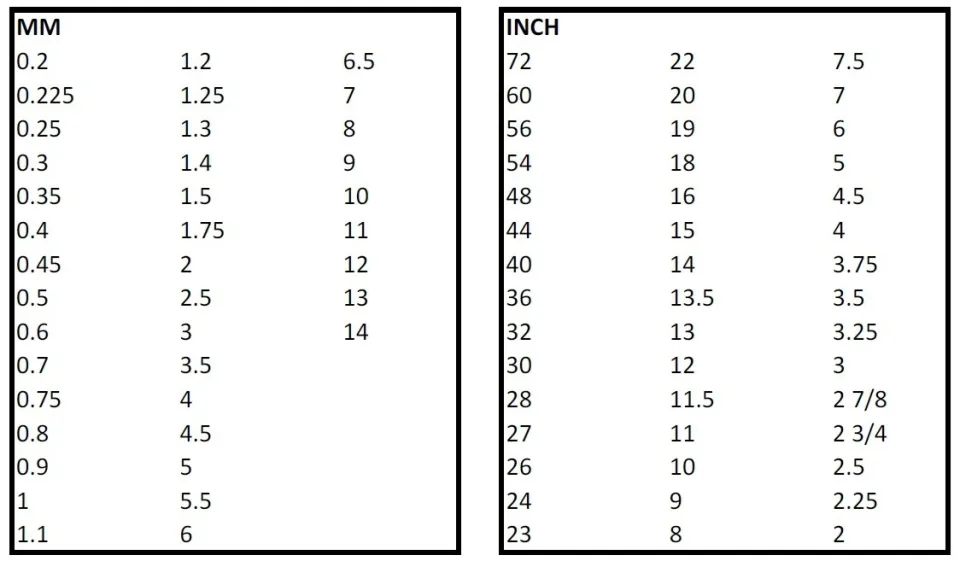

- Thread dial indicator
- Full length splash guard
- Halogen lamp
- Coolant
- Footbrake
- Chuck guard
- Leadscrew protection
- Toolpost protection
- Right hand carriage wheel
- Includes Taper turning attachment
Optional:
- Newall DRO system , UK
- Italian Quick Change Tool Post
- New generation rear guarding system (not shown)
- Gap bed via model ERL-1340
- Headstock clutches via model BHL-1550
- EVS Electronic variable speed system
- D1-4 300mm Faceplate
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Swing over bed
342mm
Swing over cross slide
205mm
Swing in gap
n/a
Distance between centres
760mm
Spindle bore
40mm
Bed width
230mm
Spindle speed range
60 - 2,570 rpm (16 steps)
Number of spindle speeds
16
Tailstock taper
3MT
Motor power
5hp 415V
Weight
1000kg
Foot print
1850 x 900 x 1300
Shipping
2270 x 965 x 1745mm - 3.4m3 1,000kg
