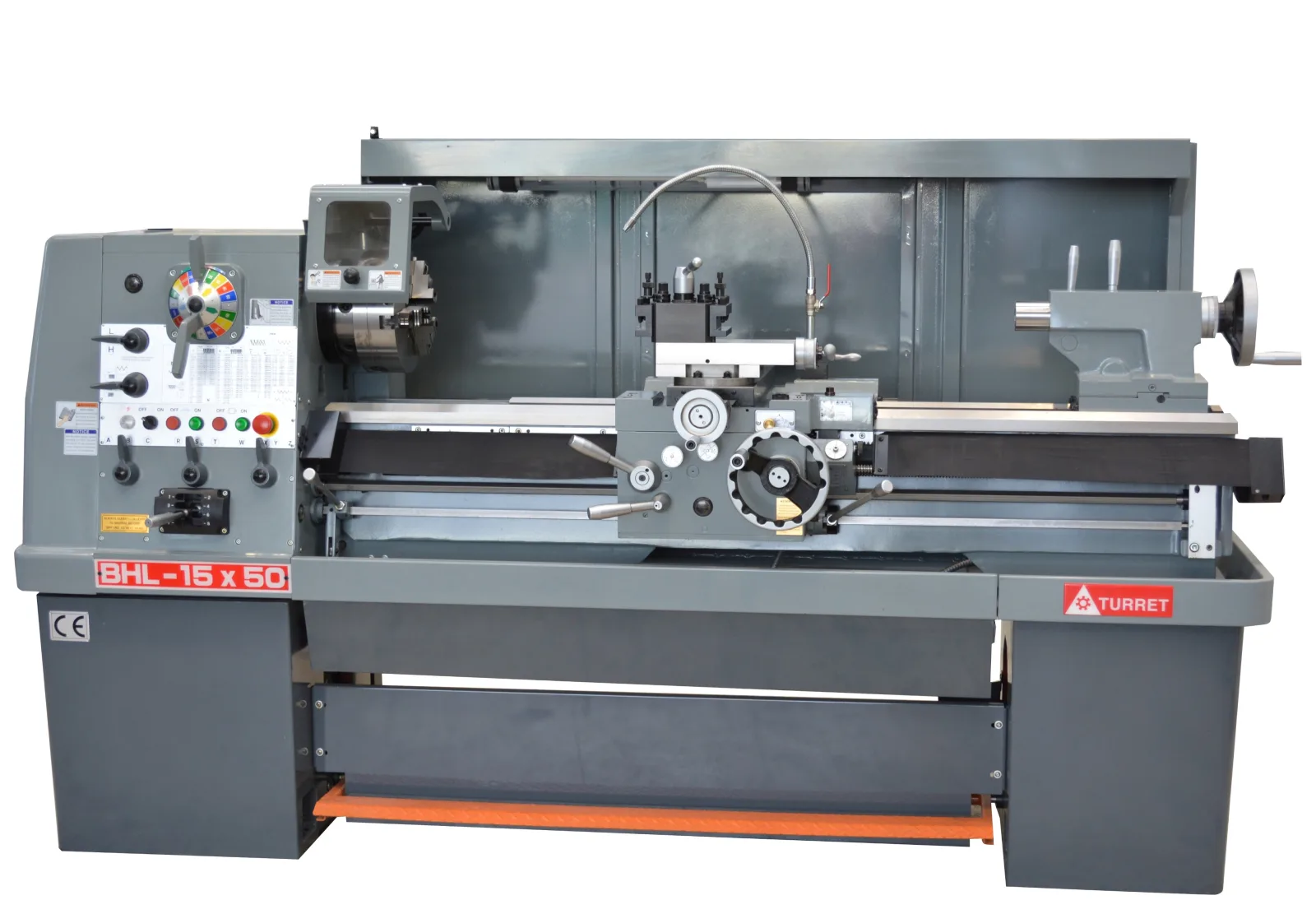

Turret BHL-1550 Premium Quality Centre Lathe

387mm swing x 1250mm centres x 56mm bore, Premium quality lathe. New styling

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Swing over bed 387mm
Distance between centres 1250mm
Spindle bore 56mm
Speed range 25 - 2,000 rpm (16 steps)
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

387mm swing x 1250mm centres x 56mm bore, Premium quality lathe. New styling

Quality Taiwanese Manufacturing

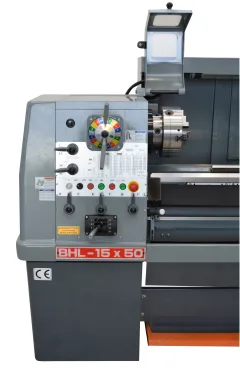

  • Multi plate headstock clutches
  • Time proven design
  • High degree of feel & sensitivity
  • Feed sensitive overload clutch
  • Pressure headstock lubrication
  • 16 spindle speeds
  • D1-6 camlock spindle
  • Gap bed
  • Saddle lubrication
  • Chip tray removable from front
  • Footbrake
  • Chuck guard with switch
  • Leadscrew protection
  • Simple toolpost protection (not shown)

Strong brand 250mm 3 Jaw chuck

  • 320mm 4 Jaw chuck direct mounting
  • New style rear guarding with flourescent lighting & rear access
  • Newall Digital Readout System (Not shown in images)

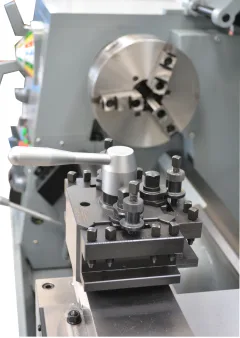

  • Italian Rapidue Quick Change Toolpost
  • Thread dial indicator
  • Coolant
  • Steadies

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model BHL-1550
Swing over bed 387mm
Swing over cross slide 238mm
Swing in gap 610mm
Bed width 280mm
Distance between centres 1250mm
Spindle bore 56mm
Speed range 25 - 2,000 rpm (16 steps)
Thread range 0.2 - 14mm / 2 - 72 TPI
Tailstock taper 4MT
Motor power 7.5HP / 10kW
Machine nett weight 1,500 kg

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.

0800 215 215 sales@scottmachinery.co.nz
Auckland · Christchurch · Nationwide support
Regarding Turret BHL-1550
