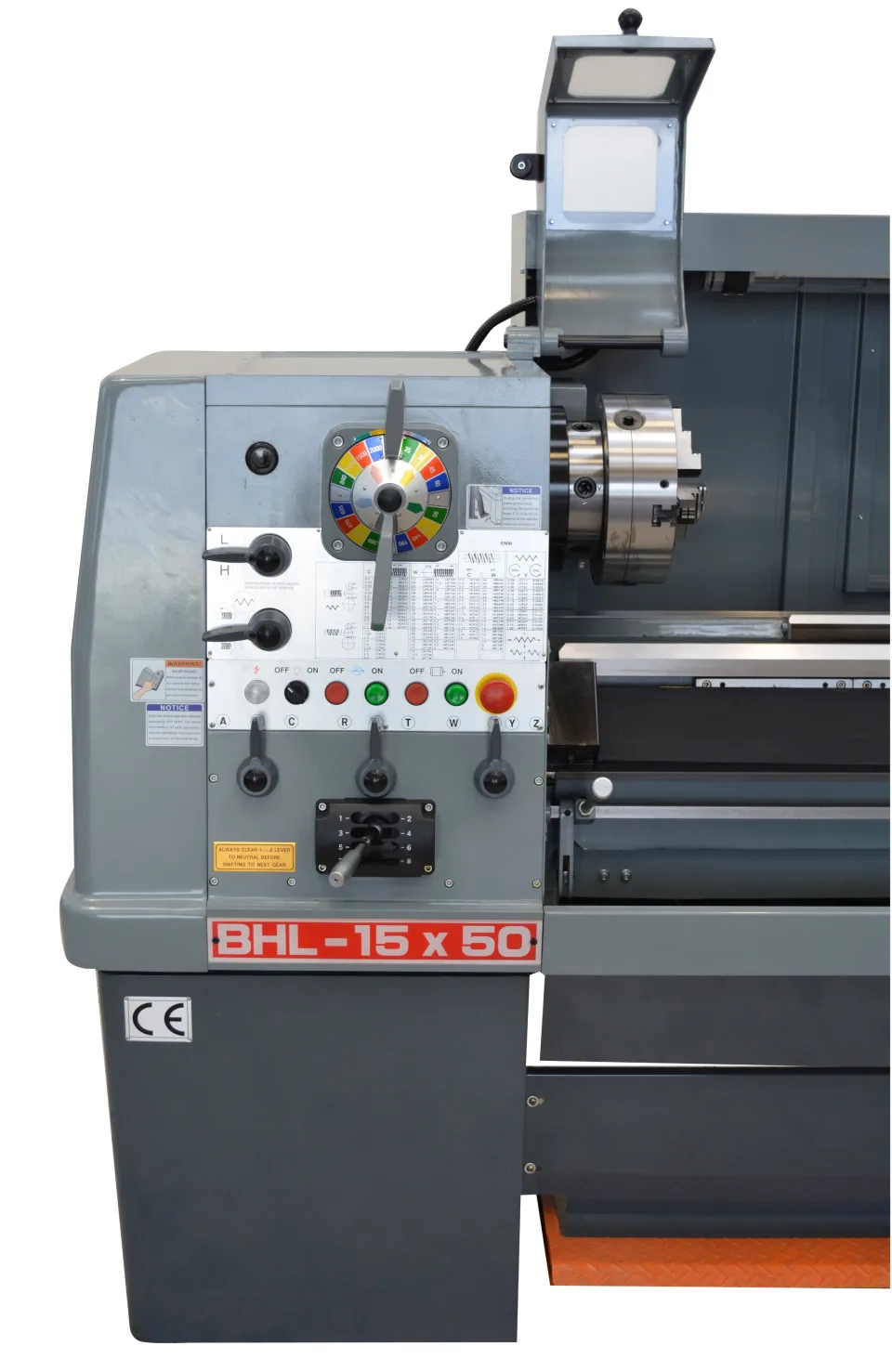

Turret BHL-1550 Premium Quality Centre Lathe
c/w New Guards, DRO & QCT
POA
LCNT-0-1552 | Prices exclude GST
Product overview
About this machine.
387mm swing x 1250mm centres x 56mm bore, Premium quality lathe. New styling
Quality Taiwanese Manufacturing
- Multi plate headstock clutches
- Time proven design
- High degree of feel & sensitivity
- Feed sensitive overload clutch
- Pressure headstock lubrication
- 16 spindle speeds
- D1-6 camlock spindle
- Gap bed
- Saddle lubrication
- Chip tray removable from front
- Footbrake
- Chuck guard with switch
- Leadscrew protection
- Simple toolpost protection (not shown)
Strong brand 250mm 3 Jaw chuck
- 320mm 4 Jaw chuck direct mounting

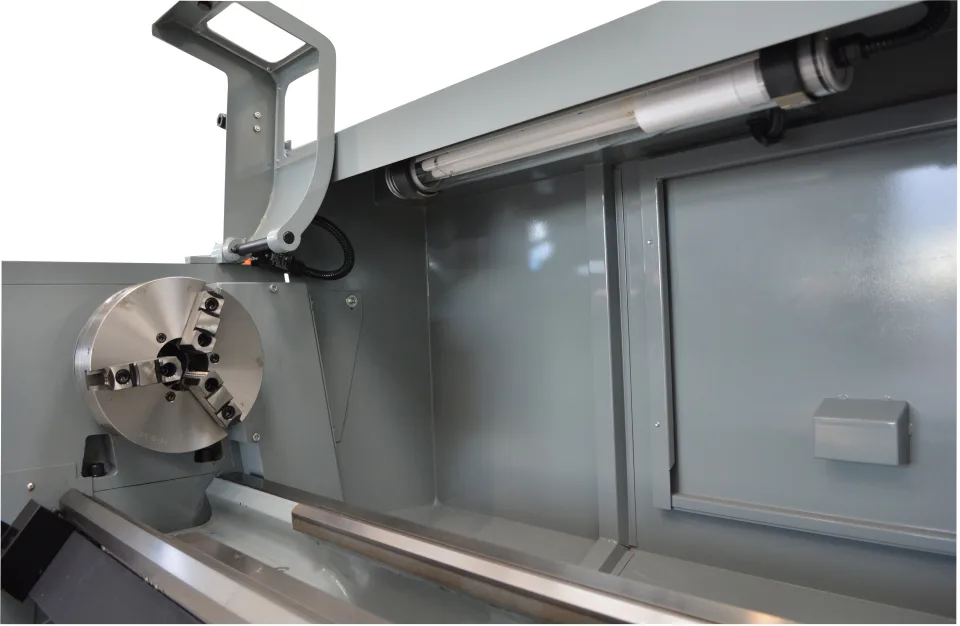

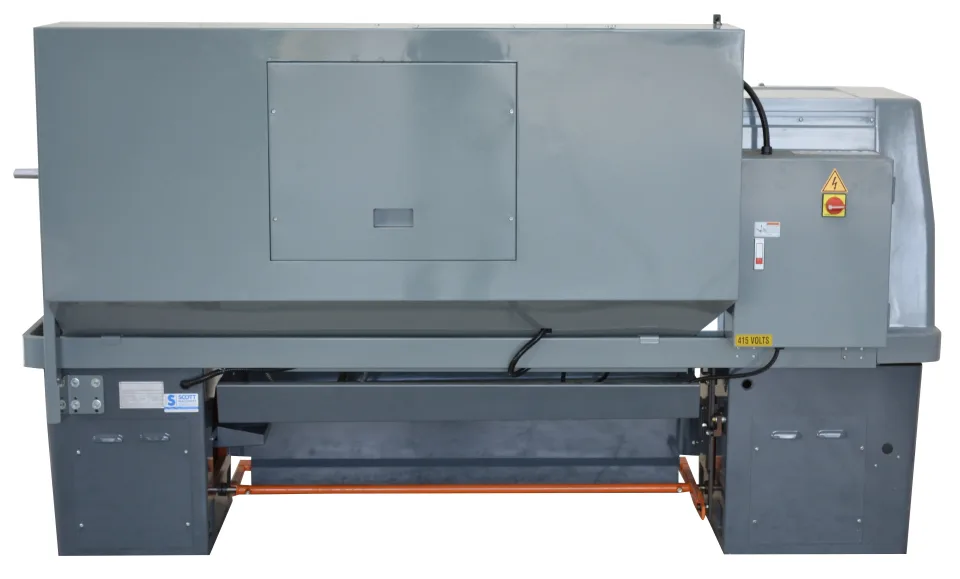

- New style rear guarding with flourescent lighting & rear access
- Newall Digital Readout System (Not shown in images)

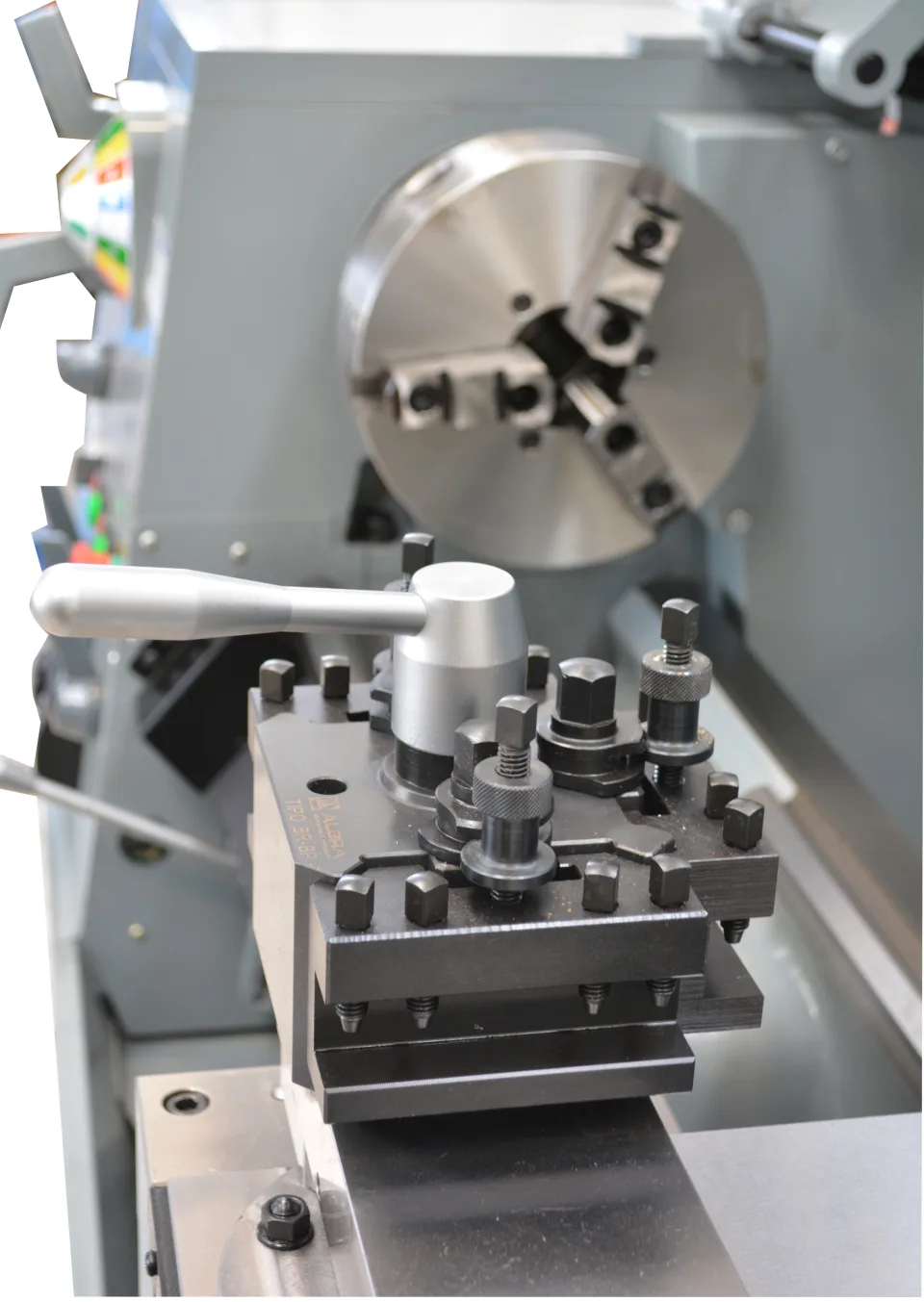

- Italian Rapidue Quick Change Toolpost
- Thread dial indicator
- Coolant
- Steadies
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
BHL-1550
Swing over bed
387mm
Swing over cross slide
238mm
Swing in gap
610mm
Bed width
280mm
Distance between centres
1250mm
Spindle bore
56mm
Speed range
25 - 2,000 rpm (16 steps)
Thread range
0.2 - 14mm / 2 - 72 TPI
Tailstock taper
4MT
Motor power
7.5HP / 10kW
Machine nett weight
1,500 kg
