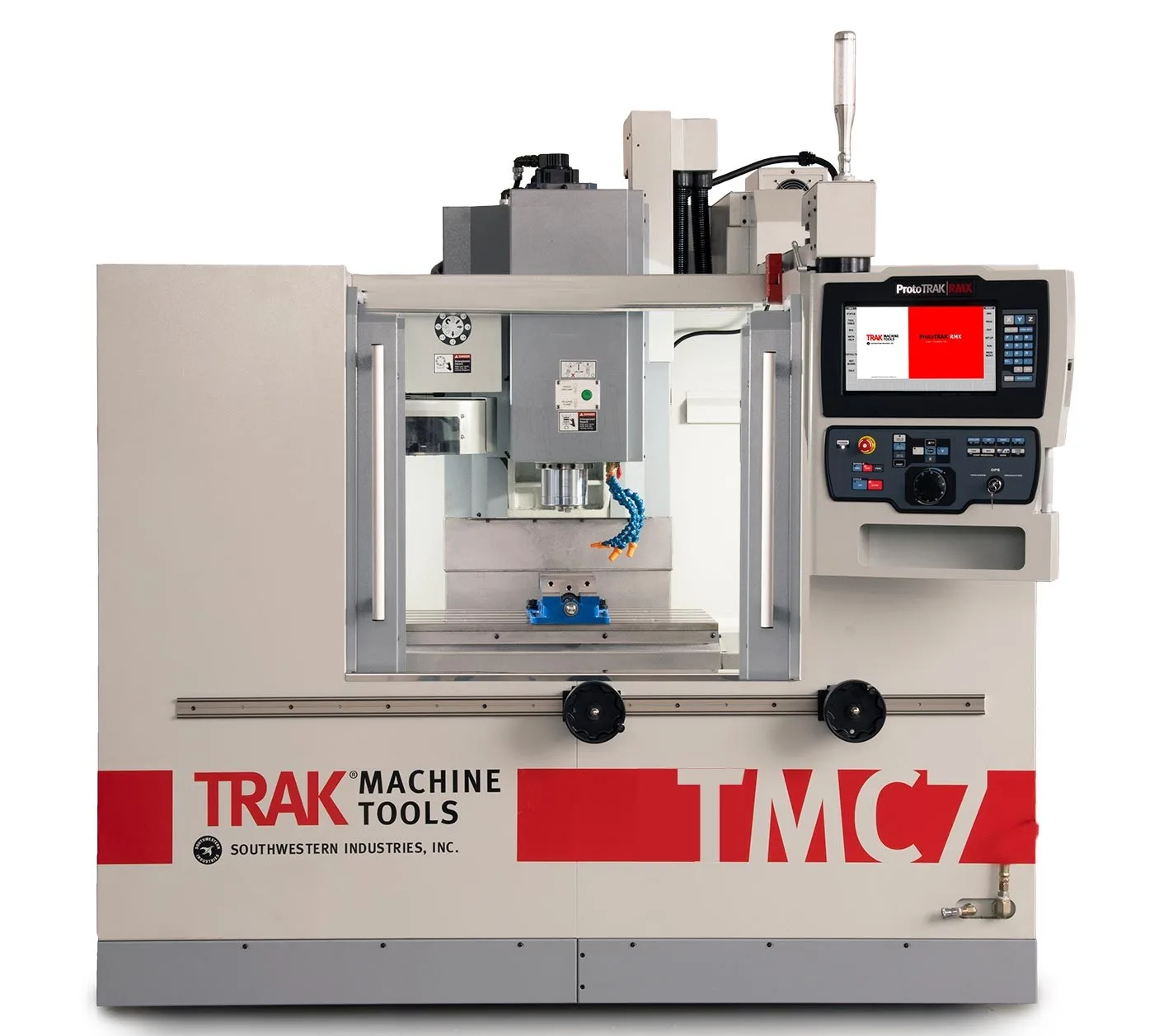

TRAK TMC7 Toolroom Machining Centre

The Versatile Machine That Works Two Ways: PRODUCTION OPS & TOOLROOM OPS Travel (X, Y, Z axis) 762mm x 508mm x 508mm

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model TRAK VMC7
Table size 900mm x 500mm
Travel (X,Y,Z) 762mm x 508mm x 508mm
Spindle Taper BT40
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Powered by ProtoTRAK. You've Got This.

The ProtoTRAK RMX for Toolroom Machining Centres is packed full of advanced technology to make the most of this truly unique machine. It features everything you would expect from a ProtoTRAK toolroom CNC, plus the ability to run production jobs with the flip of a switch. - Easy To Use Touchscreen - TRAKing and Electronic Handwheels, optional - Manual and CNC Operation - Powerful Solid Model Graphics - Synchronized Tool Table - Enhanced ProtoTRAK Assistance - Auto Geometry Engine - Prompted Programming Events - Defaults and User Profiles

The Versatile Machine That Works Two Ways:

PRODUCTION OPS

It's a full featured 3 axis machining centre when you need to run low volume production. The amazing new ProtoTRAK RMX CNC delivers a powerful easy-to-use interface.

  • Low Volume/High Mix Jobs
  • 16-station Tool Changer
  • Powerful, Intuitive Tool Table
  • Door Closed and Interlocked
  • Complies with ANSI B11

TOOLROOM OPS

With the flip of a switch, you enter into Toolroom Ops. Now your VMC works like our popular ProtoTRAK RMX range, only with an enclosure that keeps chips and coolant contained.

Optional electronic handwheels allow you to crank the table and saddle for that familiar feel of working a manual machine. Transition from manual operations to 2 and 3-axis CNC.

  • Manual with DRO, 2 or 3-axis
  • Optional Handwheels X, Y and Z
  • TRAKing
  • Contain Chips and Coolant

Options

  • Electronic Handwheels
  • Offline Programming
  • Remote Stop/Go Switch
  • Internal Memory Drive
  • Auxiliary Functions
  • DXF File Converter
  • Parasolid File Converter

Machine video

See TRAK TMC7 in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model TRAK VMC7
Table size 900mm x 500mm
Travel (X,Y,Z) 762mm x 508mm x 508mm
Spindle Taper BT40
Spindle Speed Range 50 - 8,000 RPM (12,000 RPM optional)
ATC Tool Capacity 16
ATC Type Carousel
Spindle Motor HP (peak) 11.2 kW (15hp)
Spindle Motor HP (continuous) 7.45 kW (10hp)
Power Requirements 415V, 3ph, 50Hz
Maximum Weight of Workpiece 450 kg
Rapid Traverse in Toolroom Ops 10 m/min
Rapid Traverse in Production Ops 25 m/min
Weight Net 3,795 kg
Shipping Dimensions 2650mm x 2300mm x 2500mm = 15.25m3, 3,950 kg
